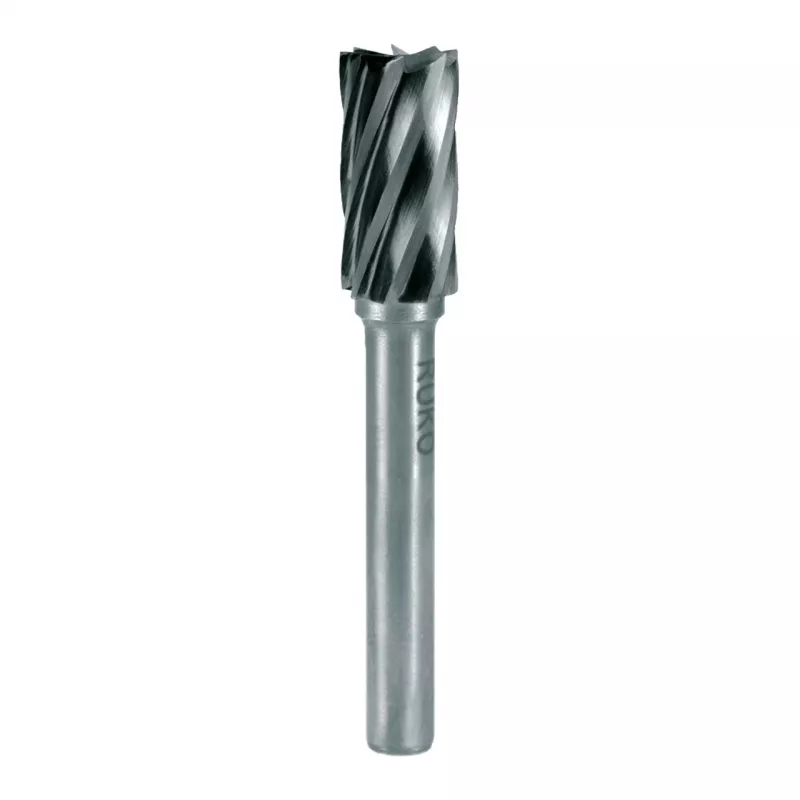

RUKO FRS DIN 8033 fresa de haste VHM 12mm

Solid carbide end mill with 12 mm cutting diameter, four flutes, and 30° helix angle for high-performance milling in steel, stainless steel, cast iron, and non-ferrous metals. The uncoated cutting edges provide clean results in general-purpose slotting, profiling, and face milling operations on CNC or manual machines.

Advantages

Solid carbide construction delivers high rigidity and wear resistance for precise, vibration-free cutting. The 30° helix angle ensures efficient chip evacuation and smooth cutting action, while the square end geometry produces sharp 90° shoulders. Suitable for both wet and dry machining.

Suitable for

• Slotting and profiling in steel and stainless steel
• Face milling and shoulder milling in cast iron
• General-purpose milling of non-ferrous metals
• CNC milling machines and manual milling machines

Key specifications

• Cutting diameter (d1): 12.0 mm
• Shank diameter (d2): 12.0 mm (h6 tolerance)
• Overall length (l1): 75 mm
• Cutting length (l2): 26 mm
• Number of flutes: 4
• Helix angle: 30°
• Cutting edge type: square end
• Standard: DIN 8033
• Coating: uncoated
• Cutting diameter tolerance: e8

Recommendations

For best results, use rigid tool holders and appropriate cutting parameters based on workpiece material. Apply coolant or compressed air to improve chip evacuation when machining deep slots.
