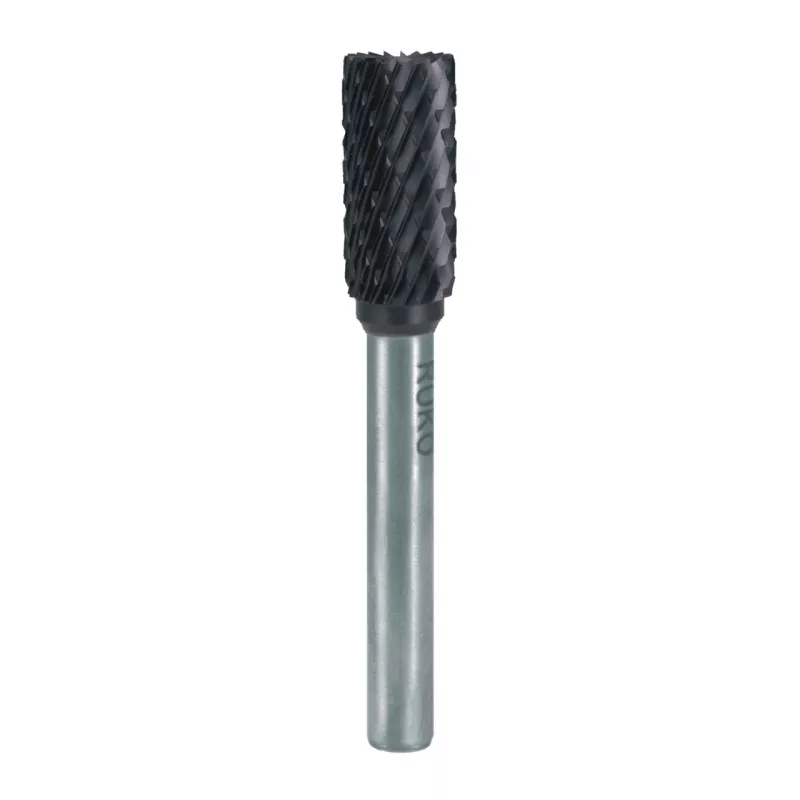

RUKO FRS-DIN8033-HM-TiAlN-Ø6,0mm fresa de haste VHM, 4 arestas, revestida a TiAlN, DIN 8033

Precision-ground solid carbide end mill with TiAlN coating and 6.0 mm cutting diameter, engineered for high-performance machining of steel, stainless steel, cast iron, and non-ferrous metals.

Overview

The RUKO GMBH FRS-DIN8033-HM-TiAlN-Ø6,0mm is a solid carbide end mill conforming to DIN 8033. It features a 6.0 mm cutting diameter, 6.0 mm shank diameter, and 4 flutes. The TiAlN (Titanium Aluminum Nitride) coating provides excellent wear resistance and high heat resistance, making it suitable for demanding machining operations. The tool has an overall length of 57 mm and a cutting length of 19 mm, with a 30° helix angle and right-hand cut.

What stands out

• TiAlN coating for high heat and wear resistance
• Solid carbide construction for rigidity and long tool life
• 4-flute design for efficient chip evacuation and good surface finish
• Precision ground with h6 shank tolerance for accurate tool holding
• Conforms to DIN 8033 standard

Technical details

• Tool Type: Solid Carbide End Mill
• Standard: DIN 8033
• Material: Tungsten Carbide (HM - Hard Metal)
• Coating: TiAlN (Titanium Aluminum Nitride)
• Cutting Diameter (D1): 6.0 mm
• Shank Diameter (D2): 6.0 mm
• Number of Flutes: 4
• Overall Length (L1): 57 mm
• Cutting Length (L2): 19 mm
• Helix Angle: 30°
• Shank Type: Cylindrical
• Direction of Cut: Right-Hand Cut
• Shank Tolerance: h6
• Manufacturing Process: Precision Ground
• Series: FRAISA FRS

Our verdict

A reliable solid carbide end mill with TiAlN coating, ideal for general purpose machining across a range of materials. Its precision ground geometry and DIN 8033 compliance ensure consistent performance.
