RUKO HGB-Set DIN352 HSS-Co 60° M3 x 0,50 Conjunto de machos de roscar manuais

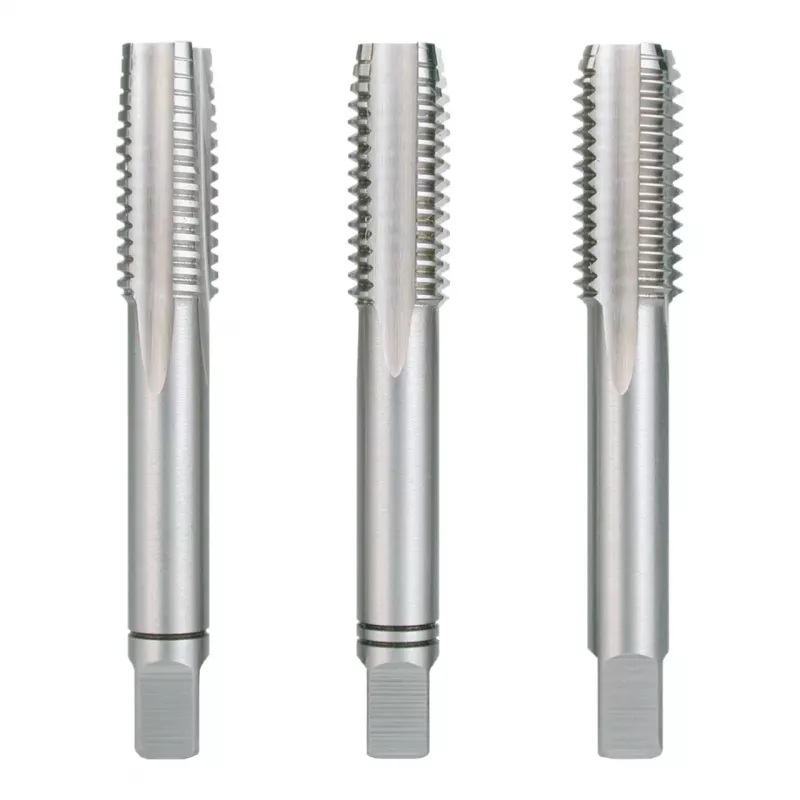

Hand tap set for cutting metric M3 threads with a 0.50 mm pitch in through and blind holes. The set includes three taps with different chamfer lengths for sequential thread cutting.

Advantages

Made from HSS-Co high-speed steel with cobalt for enhanced wear resistance and heat resistance. Suitable for unalloyed and alloyed steels up to 1000 N/mm², cast iron, non-ferrous metals, and plastics. Bright finish reduces friction and improves chip flow. Conforms to DIN 352 for metric hand taps.

Suitable for

• Unalloyed and alloyed steels up to 1000 N/mm²
• Cast iron
• Non-ferrous metals
• Plastics

Key specifications

• Thread type: Metric M
• Thread size: M3
• Thread pitch: 0.50 mm
• Flank angle: 60°
• Number of pieces: 3 (taper, second, finishing)
• Tolerance class: ISO 2 (6H)
• Recommended core hole diameter: 2.5 mm
• Cutting direction: Right-hand
• Drive type: Manual (square shank)
• Packaging: Plastic case

Recommendations

Use with suitable cutting oil for best results. For blind holes, ensure adequate chip removal.
