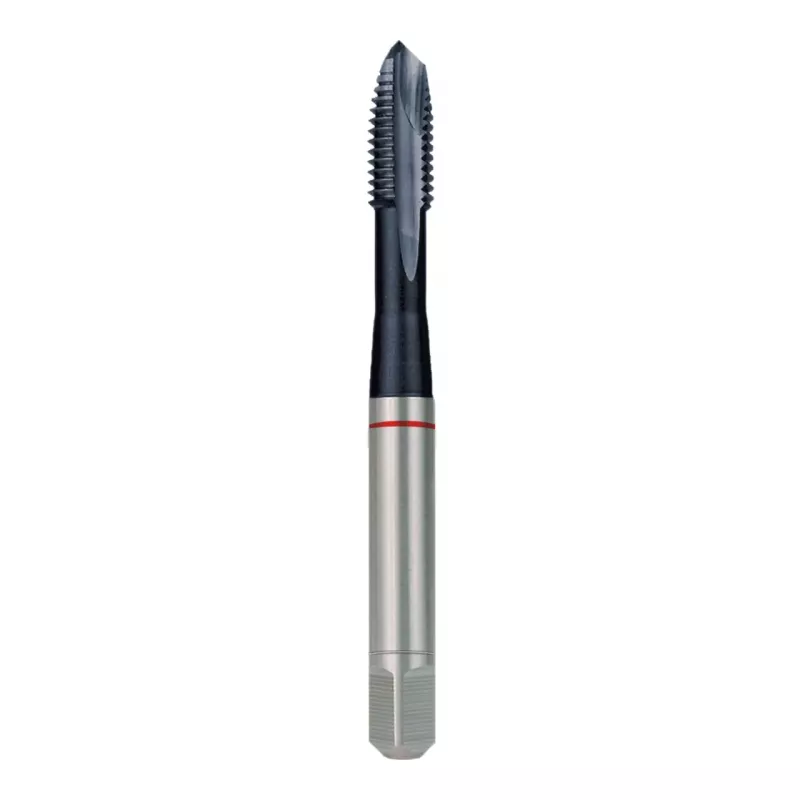

RUKO MGB-DIN371-HSS-TiAlN-60°-M5x0,80mm Macho de roscar à máquina

For machinists and metalworking professionals tackling through-hole threading in steels, stainless steels, cast iron, and non-ferrous metals, the RUKO MGB-DIN371-HSS-TiAlN-60°-M5x0.80mm machine tap delivers reliable performance. Its TiAlN coating reduces friction and heat, extending tool life in demanding production environments.

Key specifications

• Thread type: Metric ISO Coarse
• Nominal thread diameter: M5
• Thread pitch: 0.80 mm
• Material: High-Speed Steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Standard: DIN 371
• Tap form: Form B (4-5 threads lead chamfer)
• Application: Through holes
• Cutting direction: Right-hand cut
• Overall length: 70 mm
• Thread length: 16 mm
• Shank diameter: 6.0 mm
• Square drive: 4.9 mm
• Recommended core hole diameter: 4.2 mm
• Thread tolerance: 6H
• Number of flutes: 3
• Thread angle: 60°

Why choose it

The TiAlN coating provides high hardness and oxidation resistance, allowing higher cutting speeds and dry machining. Form B with a 4-5 thread lead chamfer is ideal for through holes, ensuring efficient chip evacuation and clean threads.

Ideal use cases

• Threading M5 coarse threads in through holes
• Production machining of steels up to 1000 N/mm²
• Working with stainless steels and cast iron
• Non-ferrous metal applications

Good to know

Use with a recommended core hole diameter of 4.2 mm. The tap conforms to DIN 371 for machine taps with reinforced shank.
