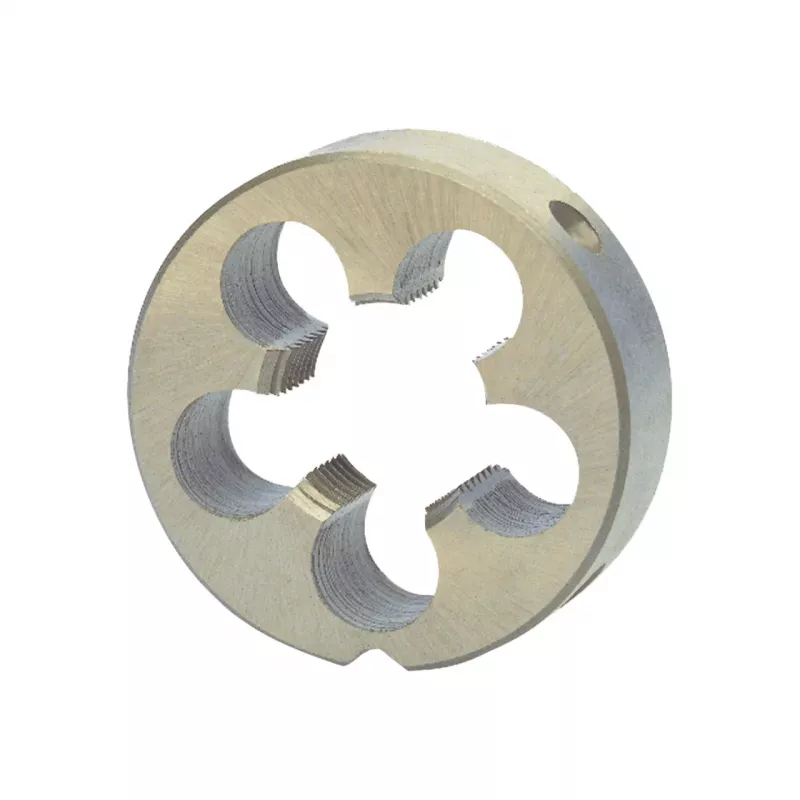

RUKO SCE-DIN223-1/2x12-BSW cossinetes de rosca redonda 1/2 polegada x 12 TPI BSW HSS

Cutting external threads by hand on 1/2 inch BSW bolts and rods requires a die that matches the Whitworth profile exactly. The RUKO SCE-DIN223-1/2x12-BSW round die is made from HSS and follows DIN 223, giving you clean, accurate threads on general purpose steels, non-ferrous metals, and plastics.

Who is it for

Maintenance technicians, machinists, and metalworkers who need to restore or create 1/2 inch British Standard Whitworth threads with a right-hand cutting direction.

Main features

• Thread standard: BSW, 1/2 inch nominal diameter, 12 threads per inch
• Die type: round split die, conforms to DIN 223
• Material: HSS for durability and wear resistance
• Cutting direction: right-hand
• Outer diameter: 38 mm, thickness: 14 mm
• Tolerance class: 6g
• Surface: bright (uncoated)

Specifications

• Brand: RUKO GMBH
• Model: 1000022686
• MPN: 0045713
• EAN: 4007140045713
• Thread type: BSW
• Nominal thread diameter: 1/2 inch
• Threads per inch: 12
• Standard: DIN 223
• Die type: Round split die
• Material: HSS
• Cutting direction: Right-hand
• Outer diameter: 38 mm
• Thickness: 14 mm
• Tolerance class: 6g
• Surface treatment: Bright

Tips

Use a suitable die stock with a 38 mm opening. Apply cutting oil and reverse the die periodically to break the chip for smoother threads.
