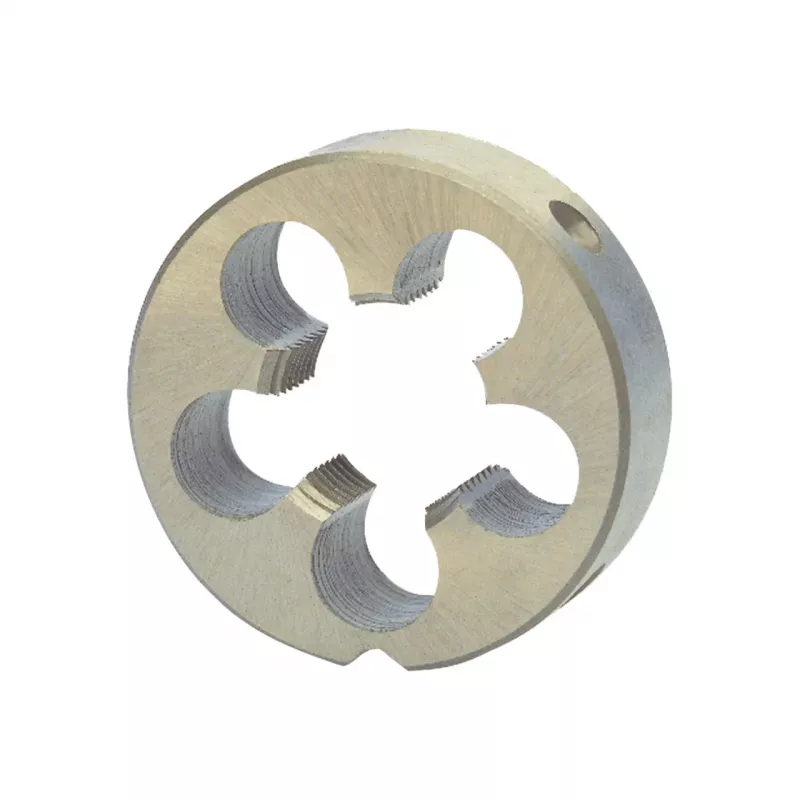

RUKO SCE-DIN223-3/32x48-BSW tarraxa, 3/32 polegadas BSW 48 TPI, HSS, DIN 223

Cutting external BSW threads by hand or machine requires a die that matches the thread standard and pitch exactly. The RUKO SCE-DIN223-3/32x48-BSW round die provides a precise 3/32 inch British Standard Whitworth thread with 48 threads per inch, made from high-speed steel for durability.

Who is it for

This die is for machinists, metalworkers, and maintenance technicians who need to cut or repair external BSW threads on fasteners, rods, or components in unalloyed steels, low-alloyed steels, and non-ferrous metals.

Main features

• Thread standard: BSW (British Standard Whitworth)
• Thread size: 3/32 inch
• Threads per inch: 48
• Die standard: DIN 223
• Material: HSS (High Speed Steel)
• Cutting direction: Right-hand
• Tool type: Round die
• Outer diameter: 20 mm
• Thickness: 7 mm
• Number of flutes: 3
• Surface treatment: Bright (uncoated)
• Manufacturing process: Ground thread
• Application: External thread cutting
• Usage: Manual and machine applications

Specifications

• Brand: RUKO GMBH
• Model: 1000022466
• MPN: SCE-DIN223-3/32x48-BSW
• EAN: 4007140045621
• Category: Thread Cutting Die
• Product colour: Metallic

Tips

Use a suitable die stock and cutting fluid for best results. Ensure the workpiece is properly chamfered before starting the thread.
