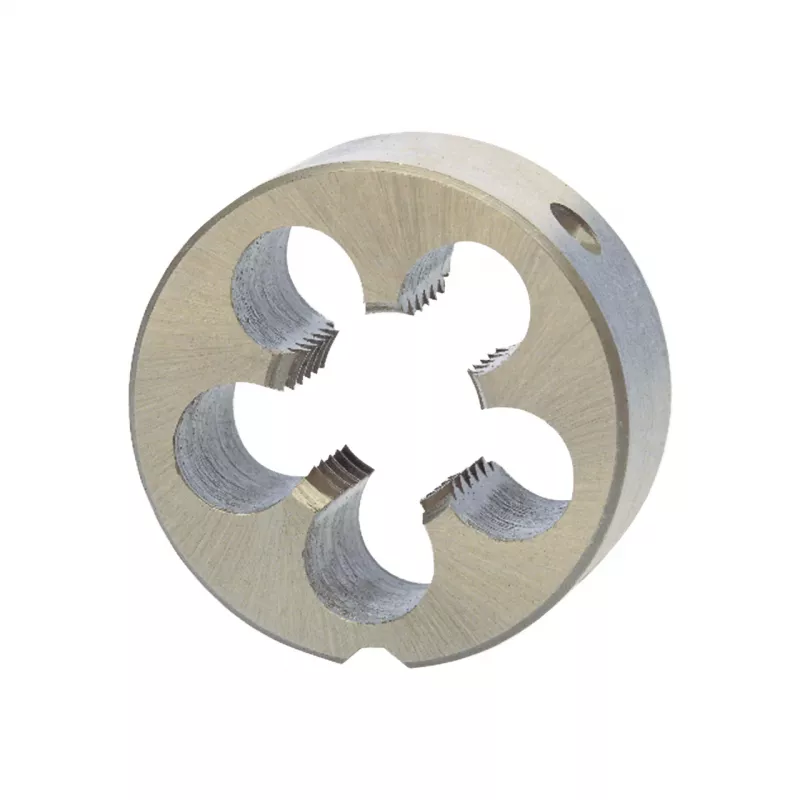

RUKO SCE-DIN223-M22x2.5mm Cossinete de rosca redonda, M22 x 2,5 métrica grossa, HSS, DIN 223

Machinists and maintenance technicians cutting M22 x 2.5 metric threads in steel, cast iron, or non-ferrous metals will find this RUKO round threading die a reliable workshop tool. It follows DIN 223 (EN 22568) and is made from high speed steel with ground threads for clean, accurate results.

Key specifications

• Thread size: M22 x 2.5 mm (metric coarse)
• Die standard: DIN 223 (EN 22568)
• Material: High speed steel (HSS)
• Outer diameter: 45 mm
• Die thickness: 14 mm
• Cutting direction: Right-hand
• Thread tolerance class: 6g
• Suitable for materials up to 800 N/mm² tensile strength

Why choose it

Ground threads deliver precise thread profiles and long cutting life. The HSS construction handles unalloyed and alloyed steels, cast iron, and non-ferrous metals, making it versatile for repair and production work.

Ideal use cases

• Cutting external M22 x 2.5 threads on shafts, bolts, and studs
• Reworking damaged threads in maintenance and repair
• Manual threading with a die stock or machine threading on a lathe

Good to know

The die has multiple cutting edges for efficient chip removal and is supplied with a bright, uncoated finish. It is part of the Ruko 240 series.
