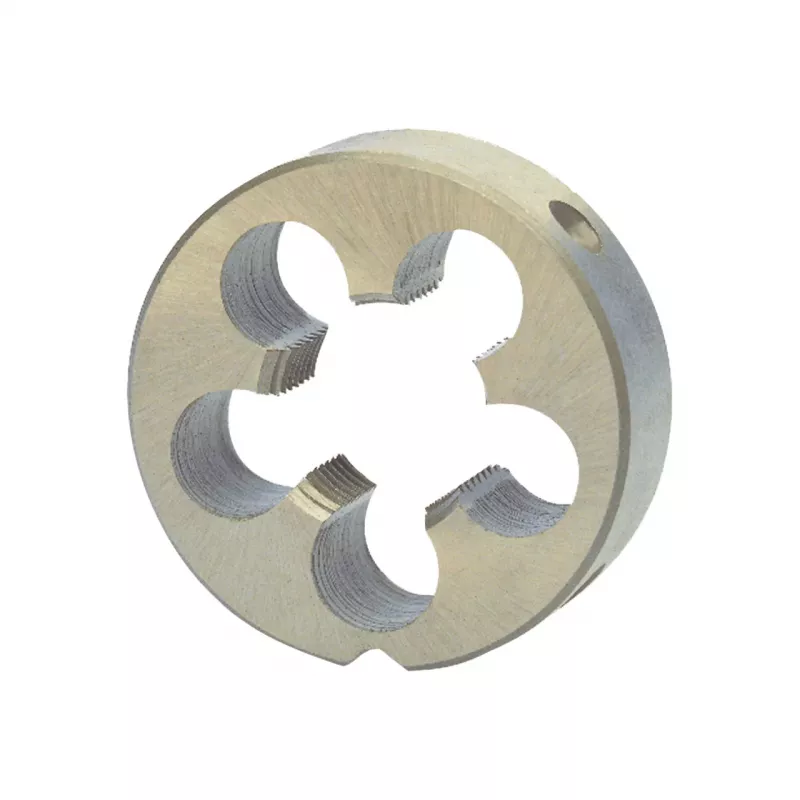

RUKO SCE-DIN223-MF15x1.5 mm cossinete, rosca fina métrica, HSS, DIN 223, diâmetro exterior 38 mm

This RUKO round die cuts metric fine threads with a 15 mm nominal diameter and 1.5 mm pitch. Its ground profile and HSS construction suit unalloyed and low-alloyed steels up to 800 N/mm², for both manual and machine operation.

Highlights

• Metric fine thread M15 × 1.5 mm
• DIN 223 standard round die
• HSS material with bright finish
• Right-hand cutting direction
• Thread tolerance 6g
• Outer diameter 38 mm, thickness 10 mm

In daily use

The die's ground profile provides clean, accurate threads in steel workpieces. It fits standard die stocks and threading machines, making it suitable for repair and production tasks.

Full specifications

• Thread type: Metric Fine (MF)
• Nominal thread diameter: M15
• Thread pitch: 1.5 mm
• Die standard: DIN 223
• Material: HSS (High Speed Steel)
• Cutting direction: Right-hand cut
• Outer diameter (D1): 38 mm
• Thickness (h1): 10 mm
• Thread tolerance: 6g
• Application material: Unalloyed and low-alloyed steels up to 800 N/mm²
• Tool type: Round Die
• Surface treatment: Bright (uncoated)
• Manufacturing process: Ground profile
• Recommended use: Manual and machine operation

Final note

A precision round die for metric fine threads, built to DIN 223 and made from HSS for durability.
