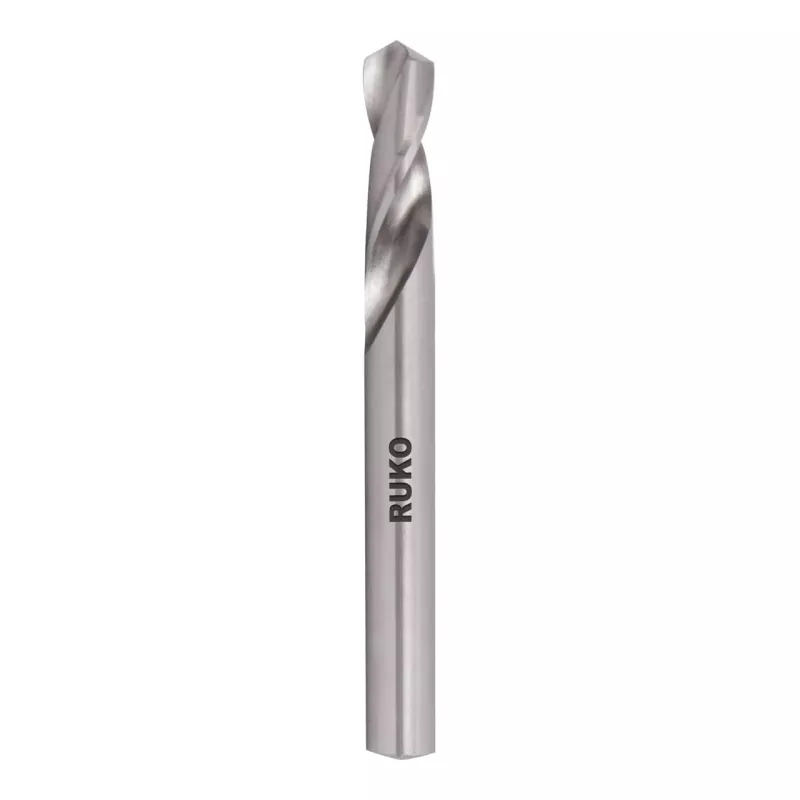

RUKO SPB-DIN1897-10,0mm Broca helicoidal para furos profundos, 10 mm, HSS-G, DIN 1897, 200 mm de comprimento

Deep hole drilling in alloyed and unalloyed steel, cast iron, non-ferrous metals, and plastics presents challenges with chip evacuation and bit stability. The RUKO SPB-DIN1897-10.0mm twist drill bit addresses these issues with an optimized flute design and increased core thickness, ensuring reliable performance in demanding applications.

Who is it for

This drill bit is ideal for machinists, metalworkers, and maintenance professionals who require precision deep hole drilling in a variety of materials. Its HSS-G construction and ground finish provide high wear resistance and dimensional accuracy, making it suitable for both workshop and industrial use.

Main features

• Diameter: 10.0 mm with h8 tolerance for precise holes.
• Total length: 200 mm, working length: 140 mm, allowing deep reach.
• High Speed Steel (HSS-G) with bright finish for durability.
• Point angle: 118°, right-hand cutting, parallel shank.
• Increased core thickness for stability during deep drilling.
• Optimized flute design for efficient chip evacuation.

Specifications

• Standard: DIN 1897
• Material: HSS-G (High Speed Steel, ground)
• Diameter: 10.0 mm
• Total Length: 200 mm
• Working Length: 140 mm
• Shank Type: Parallel, diameter 10.0 mm
• Point Angle: 118°
• Cutting Direction: Right-hand
• Tolerance: h8
• Surface: Bright (uncoated)

Tips

Use appropriate cutting fluid to enhance tool life and hole quality. Ensure the drill is securely clamped and the workpiece is properly supported to prevent deflection during deep hole drilling.
