RUKO SPB-DIN338-HSS-TiAlN broca helicoidal 8,0 mm

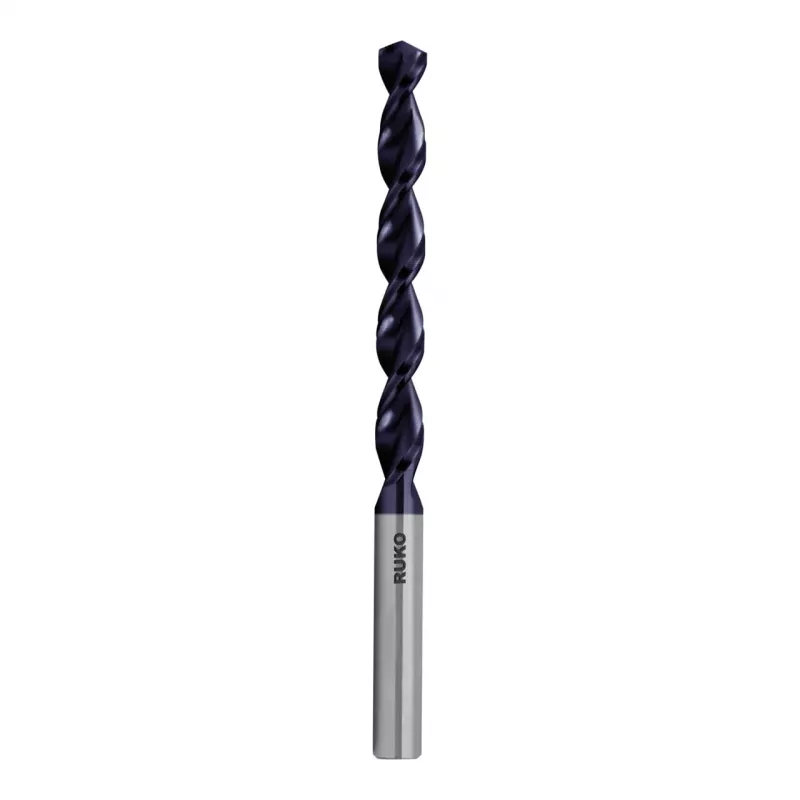

The RUKO SPB-DIN338-HSS-TiAlN-Ø8.0mm is a precision-ground twist drill bit with a TiAlN coating, offering high heat and wear resistance for demanding drilling tasks in steel, cast iron, non-ferrous metals, and plastics. Its 135° self-centering point eliminates the need for center punching, enabling accurate hole positioning from the start.

Highlights

• TiAlN coating for extended tool life and high-temperature performance
• DIN 338 standard with cylindrical shank and h8 tolerance for precise chuck fit
• Self-centering 135° point angle reduces walking and improves accuracy
• Ground from solid HSS for consistent cutting geometry

In daily use

This 8.0 mm drill bit is suitable for general-purpose drilling in workshops and on-site. The right-hand cut and 75 mm flute length provide efficient chip evacuation, while the 117 mm overall length offers good reach. The bronze/gold finish is a visual indicator of the TiAlN coating.

Full specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: High-speed steel (HSS)
• Coating: Titanium aluminum nitride (TiAlN)
• Diameter: 8.0 mm
• Total length: 117 mm
• Working length (flute length): 75 mm
• Shank type: Cylindrical
• Shank diameter: 8.0 mm
• Point angle: 135°
• Tolerance: h8
• Cutting direction: Right-hand cut
• Manufacturing process: Ground from solid
• Recommended materials: Steel, cast iron, non-ferrous metals, plastics
• Heat resistance: High
• Wear resistance: High
• Self-centering: Yes
• Colour: Bronze/gold
• Application: General purpose drilling
• Packaging quantity: 1 piece

Final note

Engineered for professionals who demand consistent performance and long tool life in metal drilling applications.
