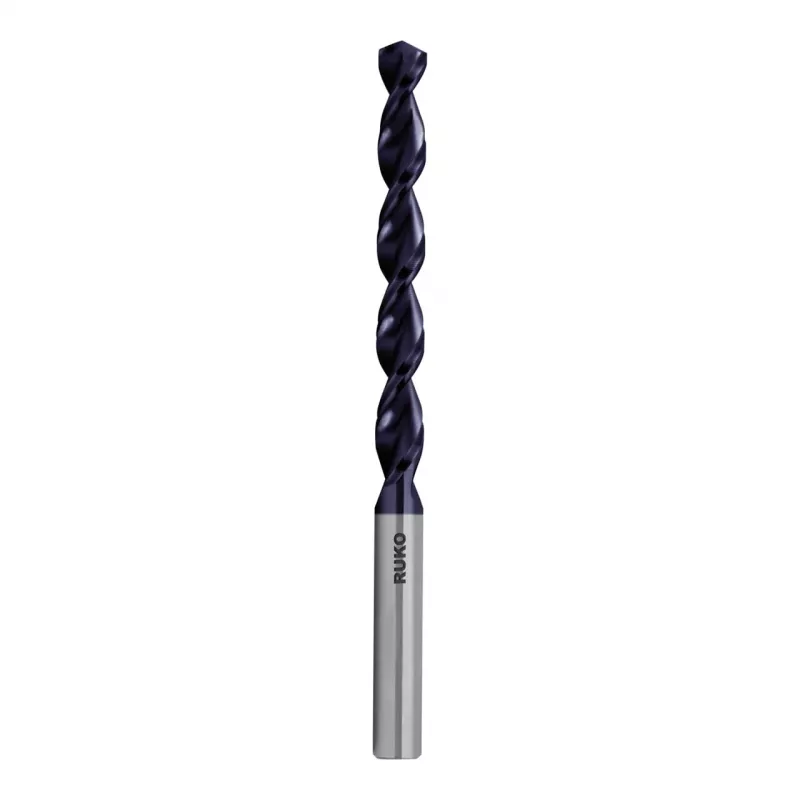

RUKO SPB-DIN338-HSS-TiAlN-Ø14,5mm broca helicoidal

The RUKO SPB-DIN338-HSS-TiAlN-Ø14.5mm is a precision-ground twist drill bit engineered for demanding industrial applications. Its TiAlN coating provides exceptional heat resistance up to 800°C, reducing wear and extending tool life when drilling tough materials.

Highlights

• TiAlN coating for high-temperature performance and extended life
• Ground from solid HSS for superior accuracy and durability
• DIN 338 standard with 130° point angle for efficient cutting
• Suitable for steel, stainless steel, cast iron, non-ferrous metals, and plastics

In daily use

This drill bit delivers reliable performance in professional workshops and industrial settings. The cylindrical shank ensures secure clamping in standard drill chucks, while the right-hand cutting direction and h8 tolerance provide consistent hole quality.

Full specifications

• Diameter: 14.5 mm
• Total length: 169 mm
• Flute length: 114 mm
• Material: High-Speed Steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Point angle: 130°
• Shank type: Cylindrical
• Cutting direction: Right-hand
• Tolerance: h8
• Standard: DIN 338
• Coating hardness: approx. 3000 HV

Final note

A professional-grade twist drill bit that combines precision grinding with advanced coating technology for reliable drilling in a wide range of materials.
