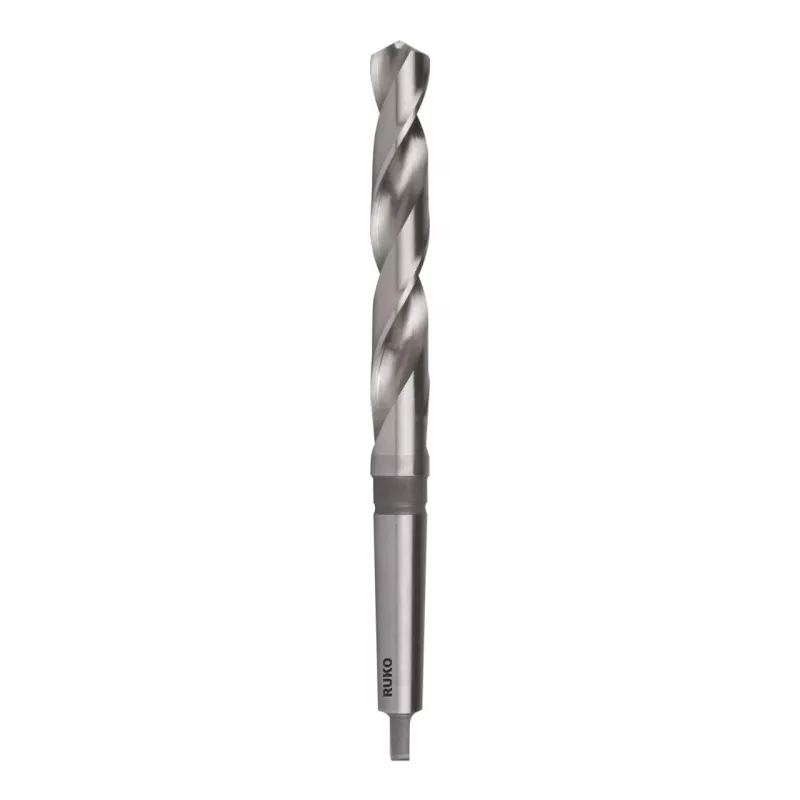

RUKO SPB-DIN345-HSSCo-Ø23,5mm broca helicoidal com haste cone Morse MT3

Twist drill bit with Morse taper shank for industrial metalworking, delivering high-performance drilling in steel and cast iron with a 23.5 mm diameter. The HSSCo 5 cobalt alloy and fully ground flutes provide exceptional heat resistance and precision.

Advantages

5% cobalt content enhances hardness and heat resistance, extending tool life in demanding applications. Bright surface finish reduces chip adhesion, while the 130° point angle ensures accurate centering and reduced thrust.

Suitable for

• Steel and cast steel
• Alloyed and non-alloyed materials
• Grey cast iron and malleable cast iron
• Sintered iron, nickel silver, graphite
• Aluminum alloys, brass, bronze

Key specifications

• Diameter: 23.5 mm
• Shank: Morse Taper MT3
• Overall length: 260 mm
• Cutting length: 150 mm
• Material: HSSCo 5
• Standard: DIN 345
• Point angle: 130°
• Tolerance: h8

Recommendations

Use with a suitable Morse taper adapter and adequate coolant for optimal performance in heavy-duty drilling operations.
