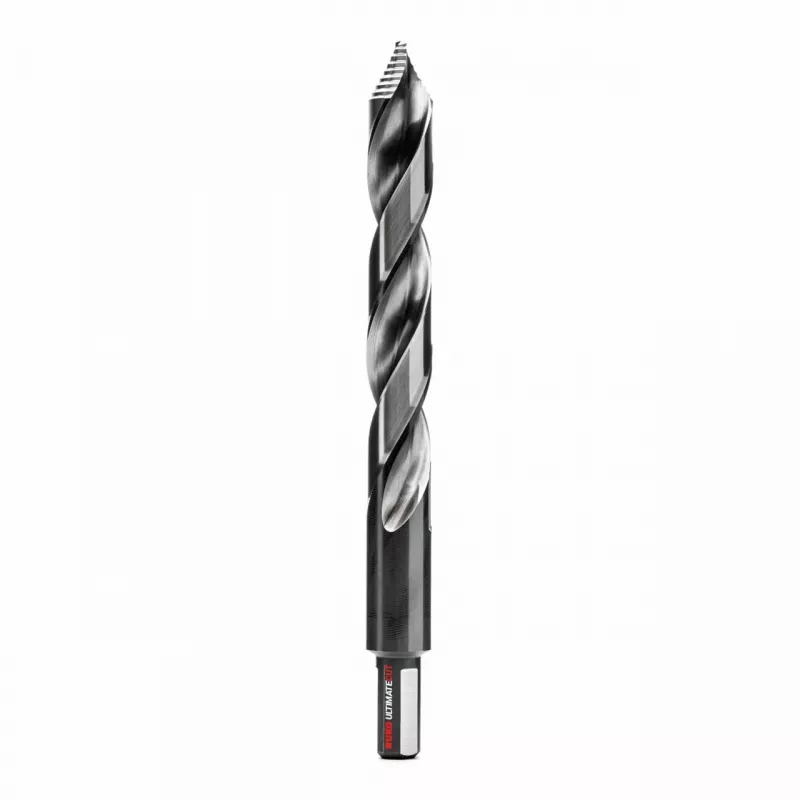

RUKO SPB-FLS-DIN338-HSS-G-Ø17,0mm-3FLS-STip Broca helicoidal 17,0 mm HSS-G afiação em cruz DIN 338

The RUKO SPB-FLS-DIN338-HSS-G-Ø17.0mm-3FLS-STip is a precision-ground twist drill bit engineered for demanding metalworking tasks. Unlike standard rolled drill bits, this bit is ground from solid HSS-G high-speed steel, ensuring superior concentricity, edge retention, and consistent performance. The 135° split point tip eliminates walking on contact, providing immediate self-centering without the need for a center punch—a distinct advantage when drilling into hard steels or smooth surfaces.

Highlights

• Ground from solid HSS-G for high durability and precise hole quality
• 135° split point tip for fast, self-centering starts without walking
• DIN 338 standard ensures consistent geometry and compatibility
• Right-hand cutting with spiral flutes for efficient chip evacuation
• Suitable for steel, cast iron, non-ferrous metals, and plastics

In daily use

This 17.0 mm drill bit is ideal for creating large-diameter holes in metal workpieces. The bright surface finish reduces friction and heat buildup, while the h8 shank tolerance guarantees a secure fit in standard drill chucks. With a total length of 173 mm and a working length of 120 mm, it provides ample reach for most workshop applications. The split point design reduces thrust pressure, making it easier to drill accurately even with handheld power tools.

Full specifications

• Diameter: 17.0 mm
• Material: HSS-G (High-Speed Steel, Ground)
• Standard: DIN 338
• Point Angle: 135°
• Tip Type: Split Point (Self-Centering)
• Flute Type: Spiral Flute
• Cutting Direction: Right-hand
• Shank Type: Cylindrical Shank
• Shank Tolerance: h8
• Total Length: 173 mm
• Working Length: 120 mm
• Surface Finish: Bright
• Manufacturing Process: Ground from solid material
• Recommended Materials: Steel, Cast Iron, Non-Ferrous Metals, Plastics
• Packaging Quantity: 1 piece

Final note

For professionals who demand accuracy and longevity, the RUKO SPB-FLS drill bit delivers consistent performance in heavy-duty drilling operations.
