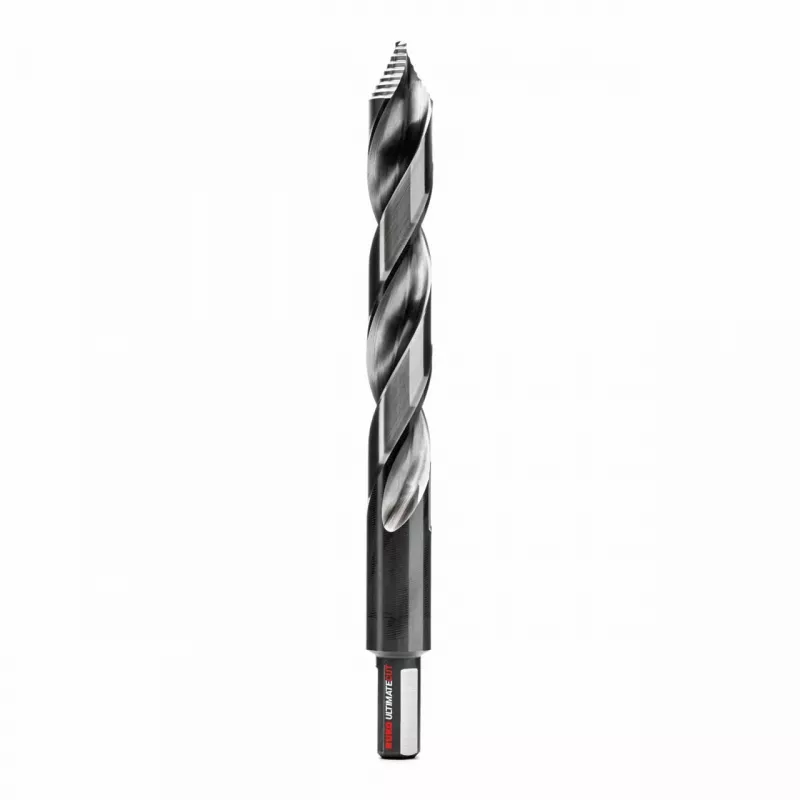

RUKO SPB-FLS-DIN338-HSS-G-Ø17,5mm-3FLS Broca helicoidal de ponta

Precision-ground HSS-G twist drill bit with a 17.5 mm diameter and three flutes, engineered for clean, accurate holes in steel, cast iron, non-ferrous metals, and plastics. The 135° split point reduces walking and requires less feed pressure, while the DIN 338 standard ensures consistent geometry and compatibility with standard drill chucks.

Overview

This RUKO drill bit combines a robust high-speed steel body with a cross-ground split point for immediate centering and reduced thrust. Its three-flute design improves chip evacuation and stability, making it suitable for both hand-held and stationary drilling in tough materials.

What stands out

• 17.5 mm diameter with h8 tolerance for precise hole sizing
• 135° split point angle for fast, accurate starts without center punching
• Three flutes enhance chip removal and reduce heat build-up
• DIN 338 standard length of 121 mm overall, 87 mm flute length
• Uncoated HSS-G surface for versatility across ferrous and non-ferrous metals

Technical details

• Drill bit type: Twist drill bit
• Material: High-speed steel (HSS-G)
• Standard: DIN 338
• Diameter: 17.5 mm
• Shank type: Cylindrical
• Number of flutes: 3
• Point type: Split point (cross-ground)
• Point angle: 135°
• Manufacturing process: Precision ground
• Coating: Uncoated
• Overall length: 121 mm
• Flute length: 87 mm
• Tolerance: h8
• Cutting direction: Right-hand cut
• Recommended application: Steel, cast iron, non-ferrous metals, plastics
• Compatibility: Drill presses, corded/cordless drills with 17.5 mm chuck capacity

Our verdict

A professional-grade drill bit that delivers precise, clean holes in demanding materials. The split point and three-flute design reduce effort and extend tool life, making it a reliable choice for workshops and serious DIY users.
