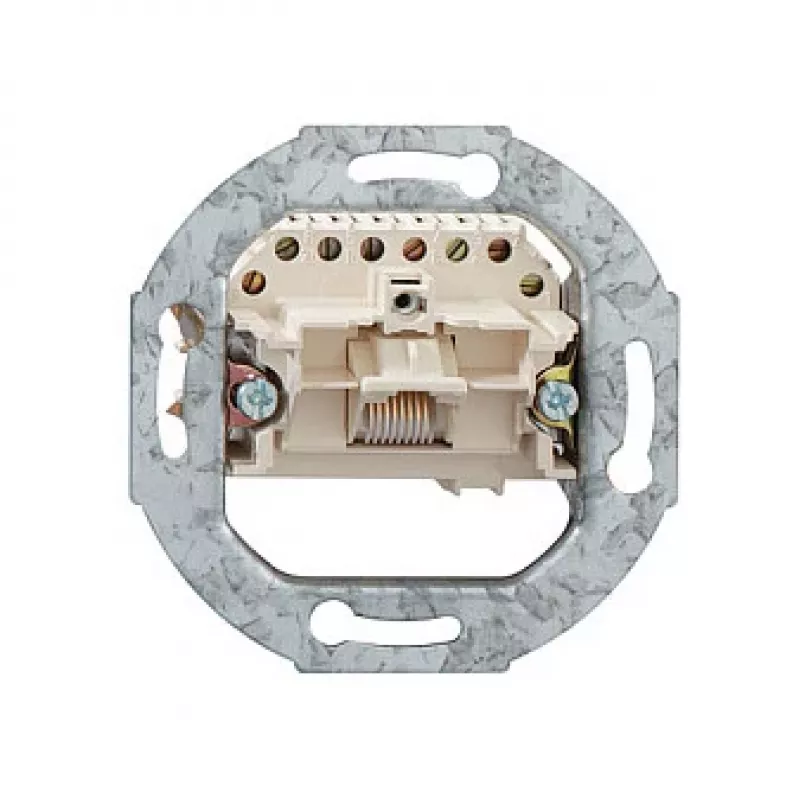

Rutenbeck UAE 8 (8) Up 0 tomada de rede RJ45 de encastrar, Cat.5e, não blindada, branco puro

Network installers and electricians often need a reliable, flush-mounted data socket for residential or office cabling projects. The Rutenbeck UAE 8 (8) Up 0 delivers a single Cat.5e RJ45 connection in a compact 50x50 mm module, ready for integration into standard faceplate frames. Its tool-free LSA termination speeds up installation while ensuring stable Gigabit Ethernet performance.

Key specifications

• Connector type: RJ45 female, 8P8C
• Category: Cat.5e, unshielded (U/UTP)
• Mounting: flush-mounted, central plate module 50x50 mm
• Termination: LSA insulation displacement, tool-free
• Transmission: 10/100/1000Base-T, up to 100 MHz
• Wiring: TIA/EIA 568A/B
• PoE support: PoE, PoE+, 4PPoE
• Colour: pure white (RAL 9010)
• Housing material: thermoplastic
• Certifications: CE, RoHS

Why choose it

This outlet combines straightforward installation with dependable network performance. The unshielded design is ideal for typical indoor environments where electromagnetic interference is minimal, and the pure white finish blends seamlessly with common switch ranges. Its support for all PoE classes means you can power devices like IP cameras or wireless access points directly through the data cable.

Ideal use cases

• Residential structured cabling for internet and IPTV
• Office workstations requiring Gigabit Ethernet
• Connecting PoE-powered devices such as VoIP phones and access points
• Retrofit installations where a flush-mounted socket is needed

Good to know

The module fits into standard 50x50 mm apertures of common faceplate frames, making it compatible with many design ranges. It is intended for indoor use only, with an operating temperature range of -10°C to +50°C. The tool-free LSA termination reduces installation time and ensures reliable connections without special tools.
