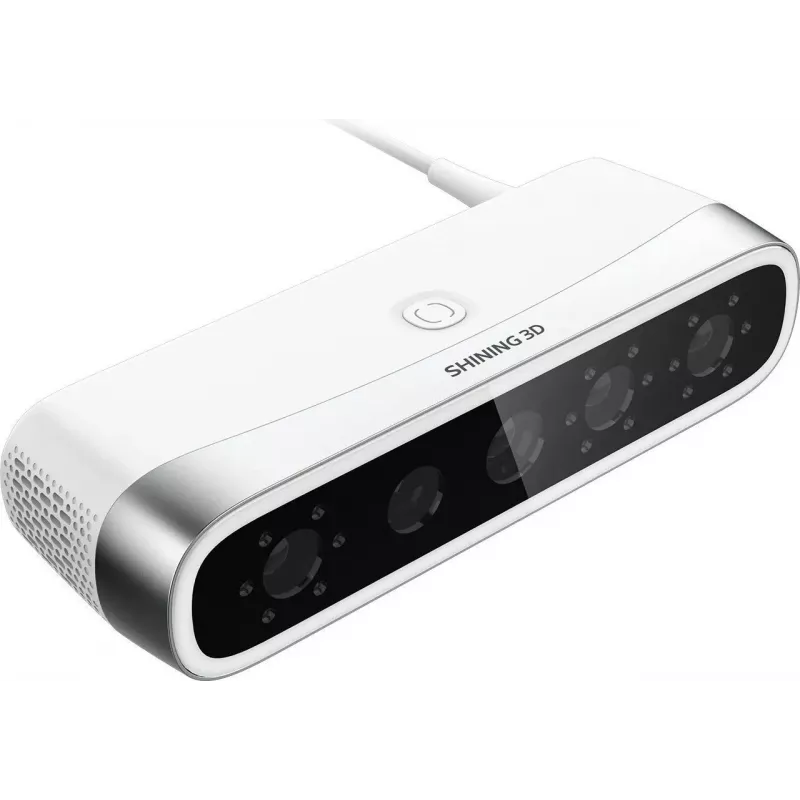

Scanner facial 3D Shining 3D MetiSmile (C6927)

The Shining 3D MetiSmile Face Scanner (C6927) brings structured infrared light technology to full-face 3D capture, delivering high-fidelity color texture and sub-50 μm accuracy in about 10 seconds per scan. Unlike conventional desktop scanners, it is purpose-built for dental, orthodontic, maxillofacial, and aesthetic medicine workflows, with automatic calibration and a working distance of 200–400 mm for comfortable patient interaction.

Highlights

• Structured infrared light scanning with eye-safe IR source
• Full-face capture in approximately 10 seconds
• Accuracy below 50 μm for precise anatomical detail
• High-fidelity color texture capture
• Output formats: STL, OBJ, PLY
• USB 3.0 interface and Windows 10 (64-bit) or higher compatibility
• Automatic calibration for consistent results

In daily use

The MetiSmile Face Scanner integrates with MetiSmile software and dental CAD/CAM systems, enabling seamless digital workflows for treatment planning and appliance design. Its non-contact, high-speed data acquisition reduces patient discomfort, while the 12V/5A power supply ensures reliable operation in clinical settings.

Full specifications

• Scan Technology: Structured Light (Infrared)
• Scan Speed: Approx. 10 seconds (full face)
• Accuracy: < 50 μm
• Light Source: Infrared (IR)
• Output Formats: STL, OBJ, PLY
• Interface: USB 3.0
• Software Compatibility: MetiSmile Software, compatible with dental CAD/CAM systems
• Operating System: Windows 10 (64-bit) or higher
• Field of View: Optimized for full facial capture
• Calibration: Automatic
• Power Supply: DC 12V/5A
• Working Distance: 200 - 400 mm
• Color Texture: High-fidelity color texture capture
• Data Acquisition: High-speed, non-contact
• Application: Dental, Orthodontics, Maxillofacial Surgery, Aesthetic Medicine
• Safety: Eye-safe infrared light

Final note

Engineered for clinical precision, the MetiSmile Face Scanner delivers reliable, high-resolution 3D facial data to support modern digital dentistry and facial aesthetics.
