Serra de esquadria e corte deslizante Einhell TE-SM 36/210 Li - Solo

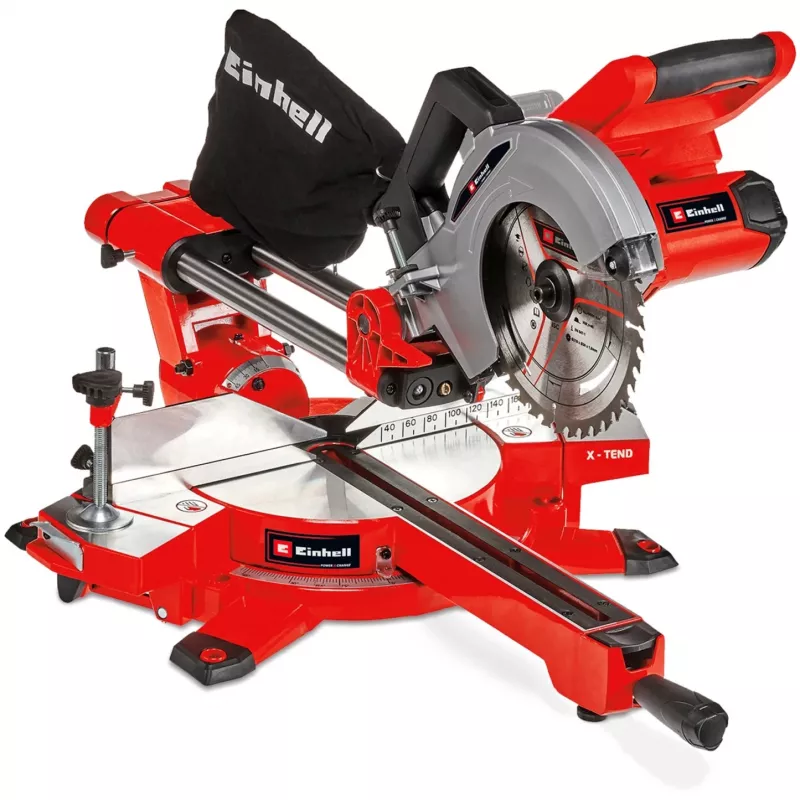

The Einhell TE-SM 36/210 Li – Solo sliding compound-miter saw is a cordless saw designed for a wide range of woodworking tasks, including crosscuts, miter cuts and trimming parquet to length. As a Power X-Change tool, it accepts all compatible high-performance lithium-ion batteries; a 2.6 Ah Plus PXC battery is recommended (battery sold separately). With a max no-load speed of 3800 RPM and a 210 mm blade, the saw delivers precise cuts while offering cordless freedom and a working radius without restricting cables.

Advantages

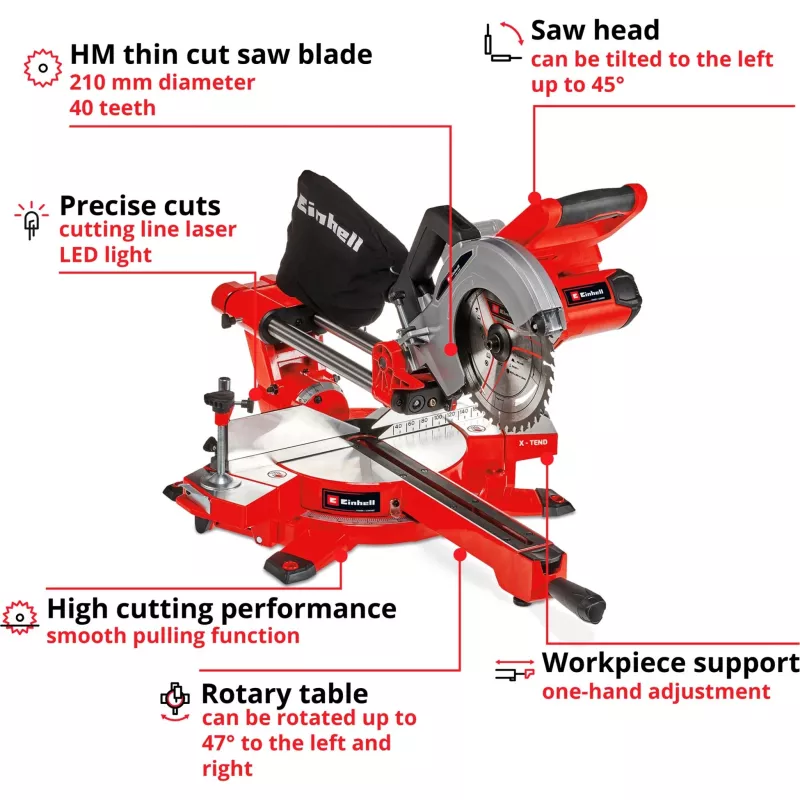

The saw combines sliding action and a tilting saw head to handle larger workpieces and angled cuts. An X-Tend workpiece support is tool-free and adjustable with one hand, and a clamping device holds material securely. The machine includes a carbide-tipped precision blade developed for cordless use, an integrated cutting-line laser and an LED light for accurate positioning, and an option to collect dust via a bag or an extractor adapter.

Suitable for

• Cross-cutting boards and panels (max cross-cut capacity 310 x 65 mm)
• Making miter and bevel cuts for frames, moldings and skirting
• Trimming and cutting parquet and floorboards to length
• Workshop and on-site woodworking where cordless operation is preferred

Key specifications

• Model: Einhell TE-SM 36/210 Li – Solo (MPN 4300880, EAN 4006825641523)
• Blade diameter: 210 mm
• Maximum no-load speed: 3800 RPM
• Cross-cut capacity: 310 x 65 mm
• Bevel-cut capacity: 210 x 65 mm
• Swivel angle range: ±47°
• Weight (without battery): approx. 12.6 kg
• Power system: Power X-Change lithium-ion batteries (battery sold separately; recommended minimum 2.6 Ah Plus PXC)

How to use

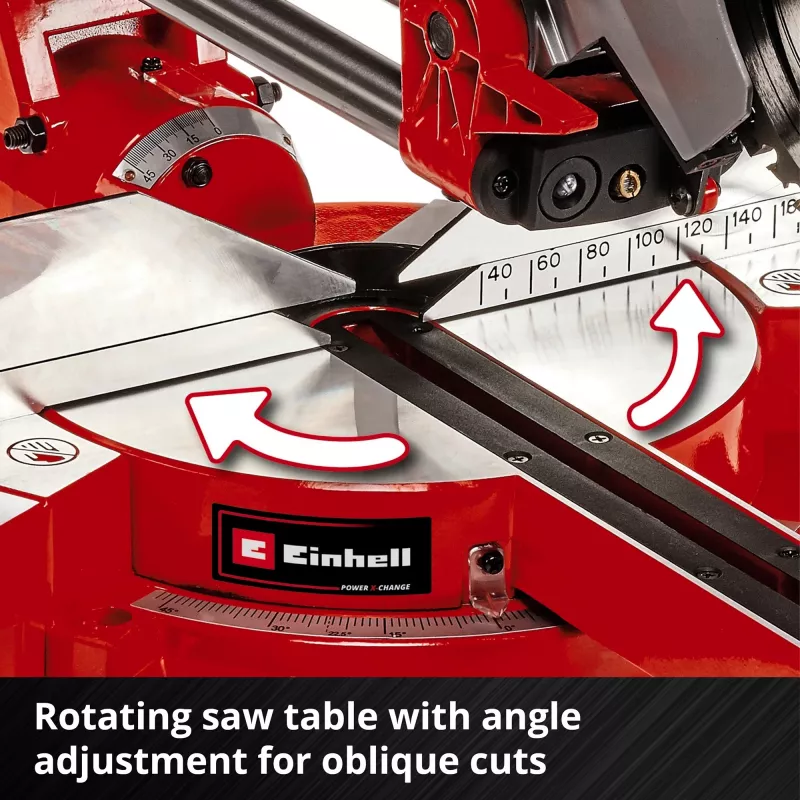

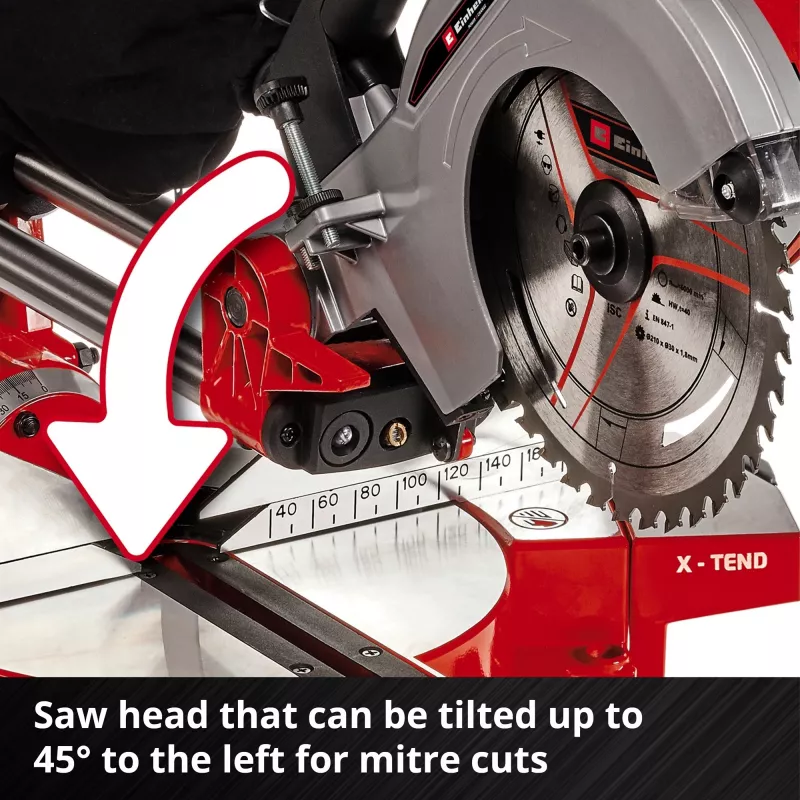

Mount a compatible PXC battery and ensure it is charged. Secure the workpiece on the table using the clamping device and extend the X-Tend supports as needed. Select the required angle using the turntable and tilt the saw head up to 45° to the left for bevel cuts. Switch on the saw, align the cutting line indicated by the laser and LED, then make the cut using the sliding feed for wider boards. After cutting, switch off the tool and wait for the blade to stop before removing the workpiece.

Recommendations

For best results use a 2.6 Ah Plus PXC battery or higher and the supplied carbide-tipped blade. Use the extractor adapter or dust bag to reduce dust. Observe all safety instructions in the manual, wear appropriate eye and hearing protection, and ensure the blade has cooled and stopped before performing adjustments or changing the blade.
