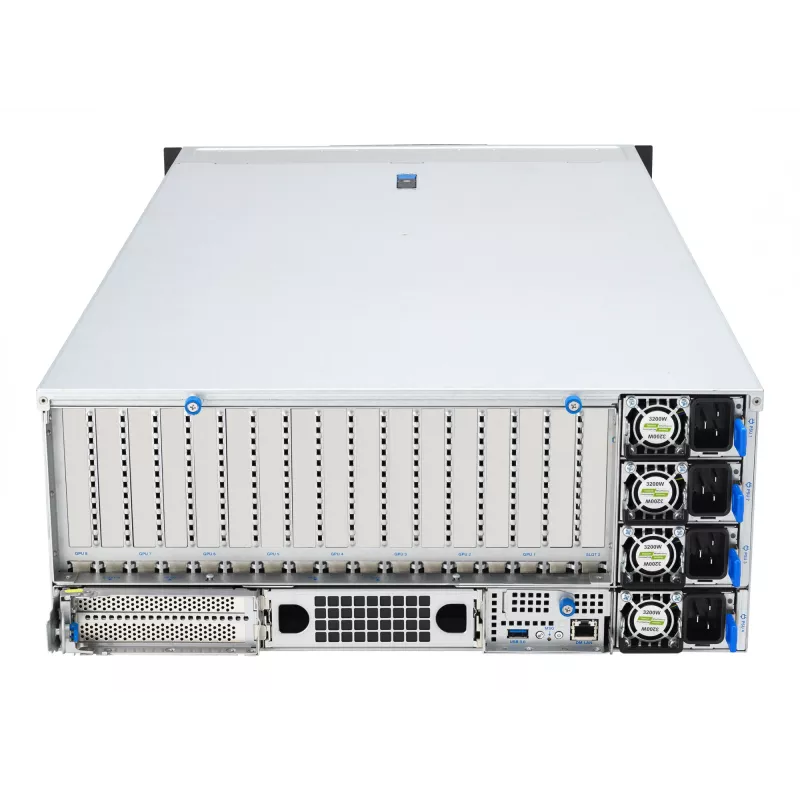

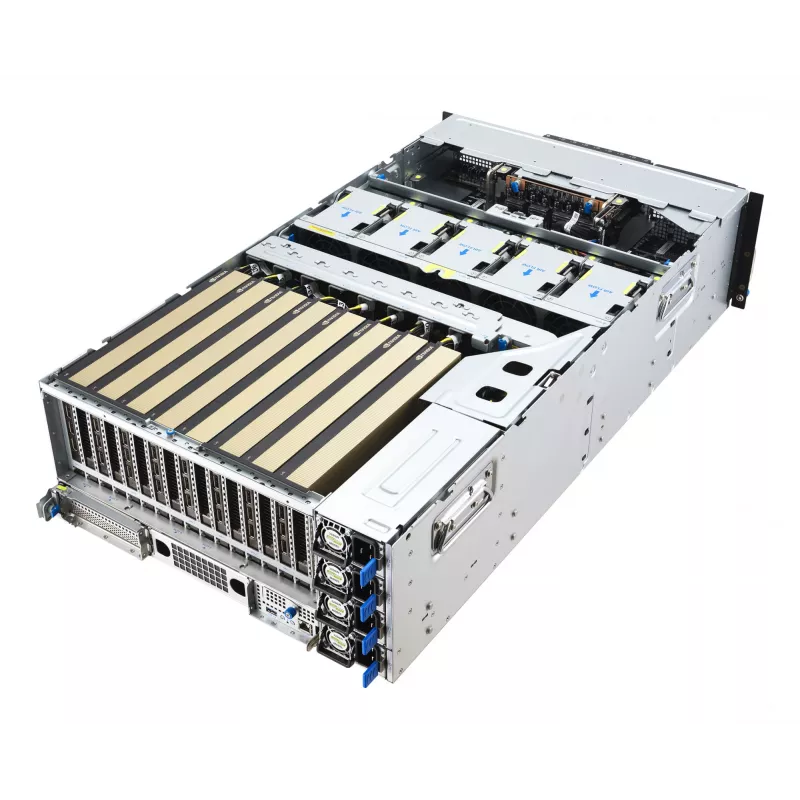

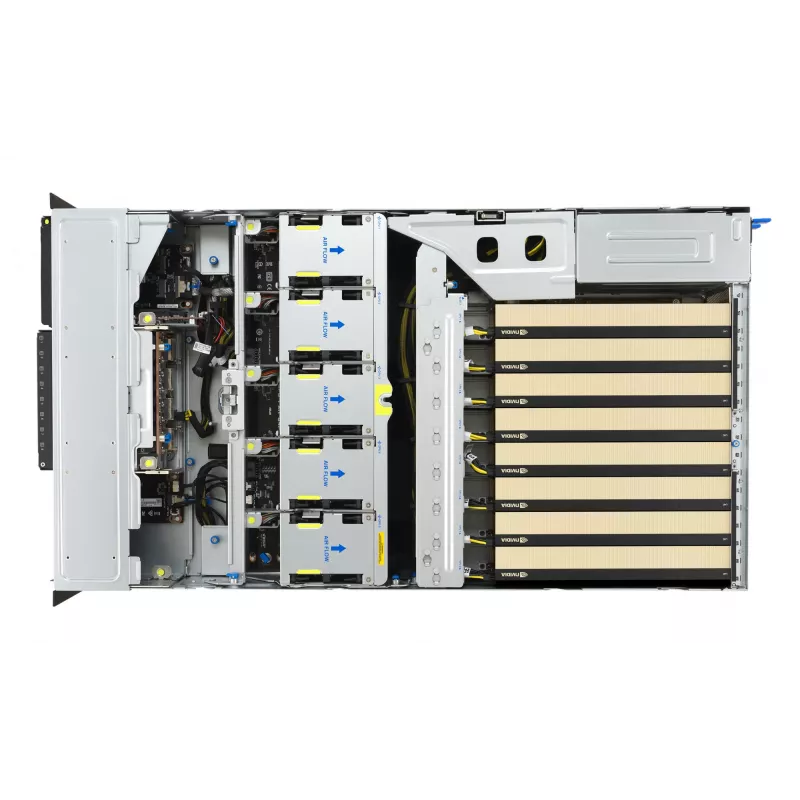

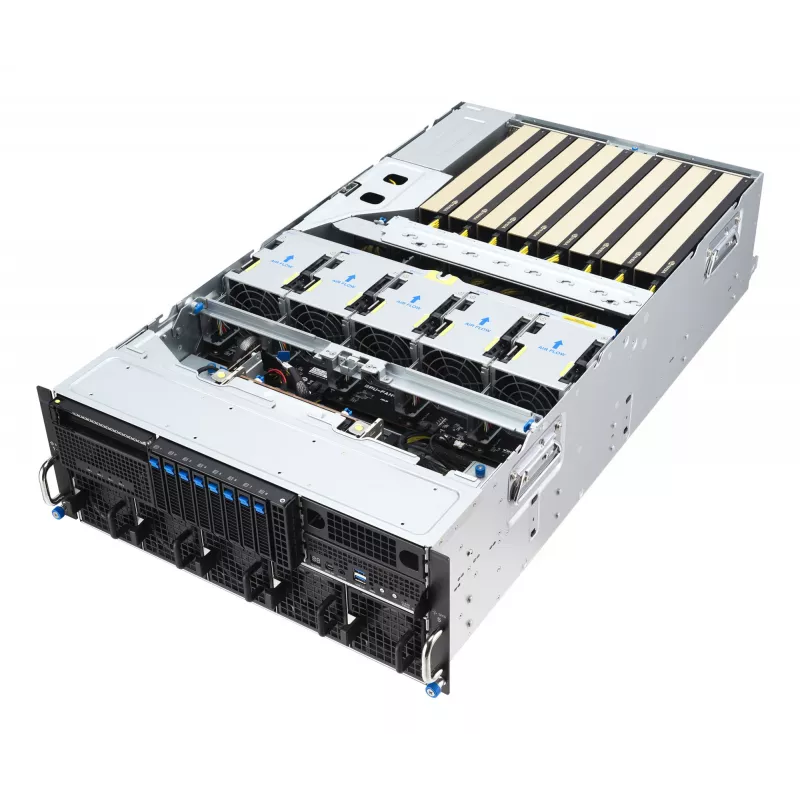

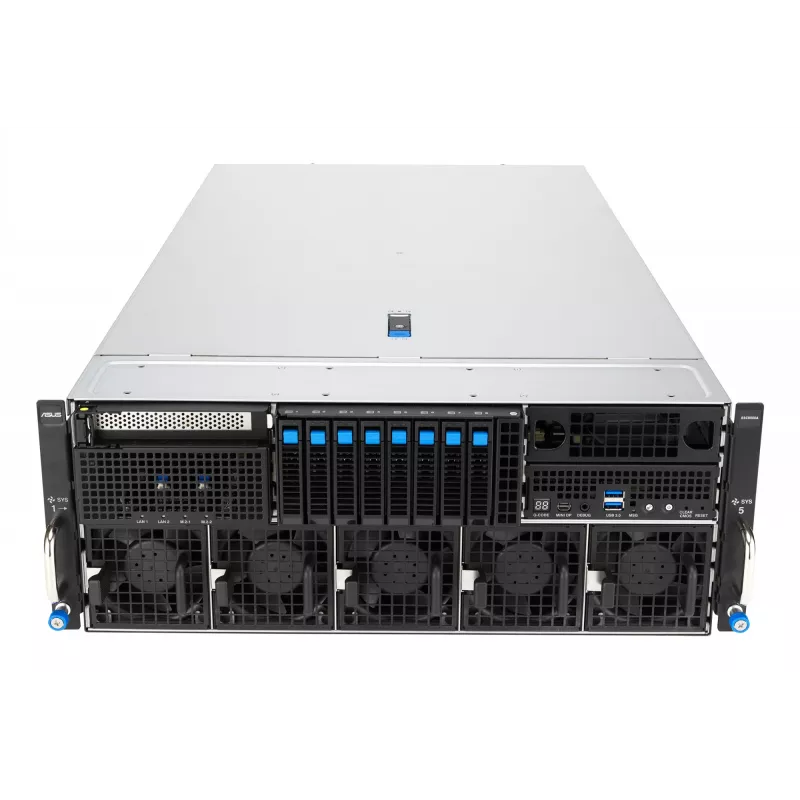

Servidor rack ASUS ESC8000A-E13 (4U) prateado – LGA 6096, AMD EPYC, DDR5, até 3 TB, 24 DIMM, 2× CPU, fonte de alimentação 3200 W

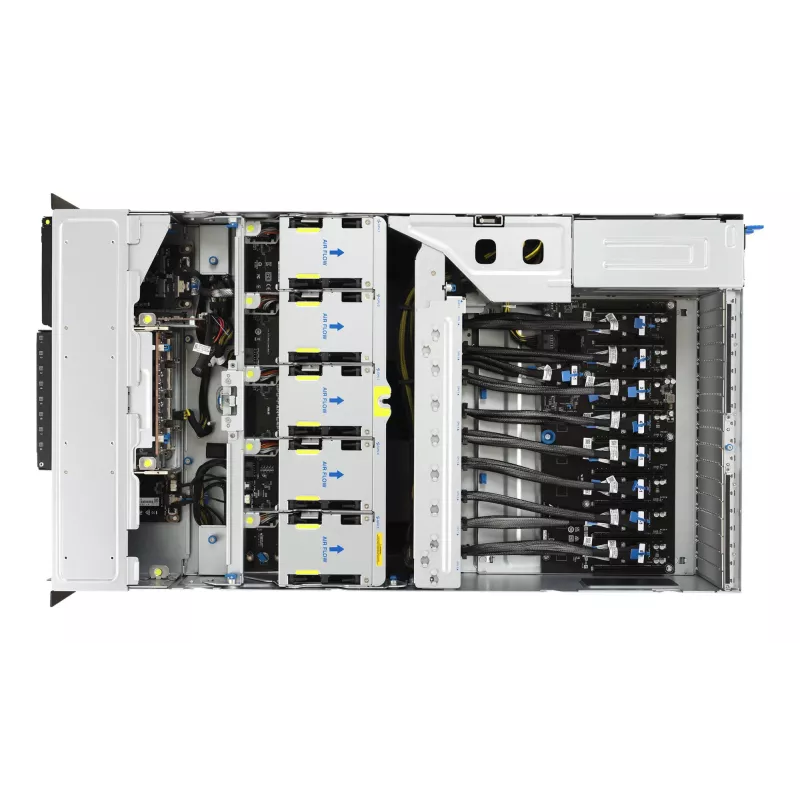

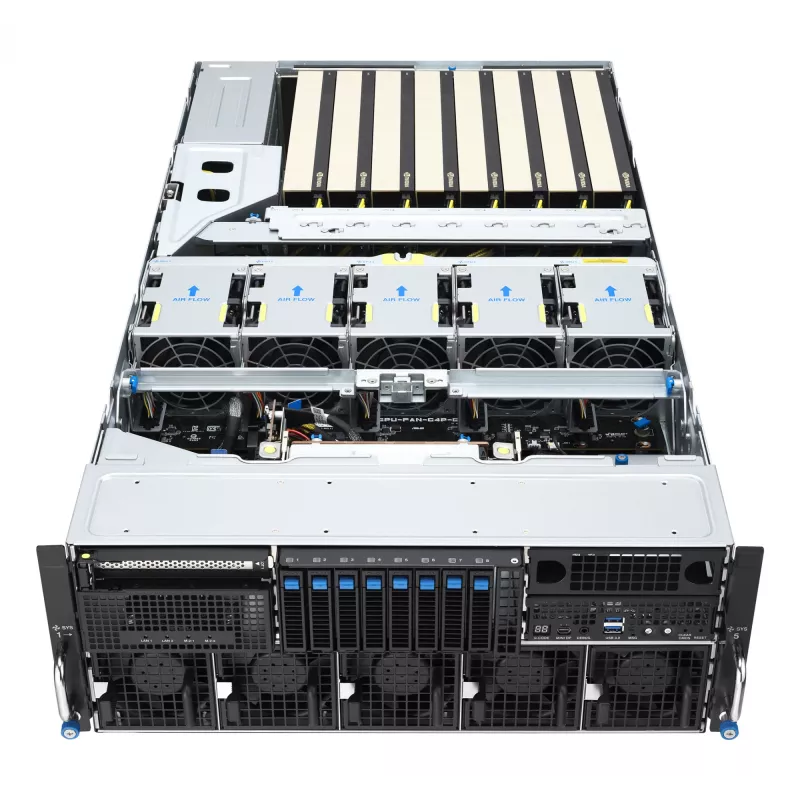

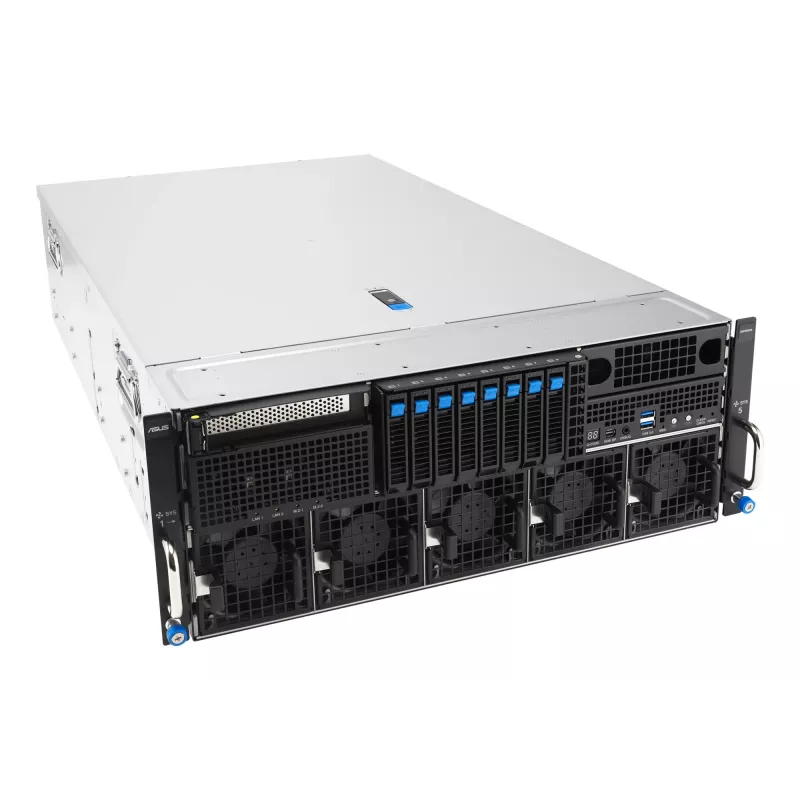

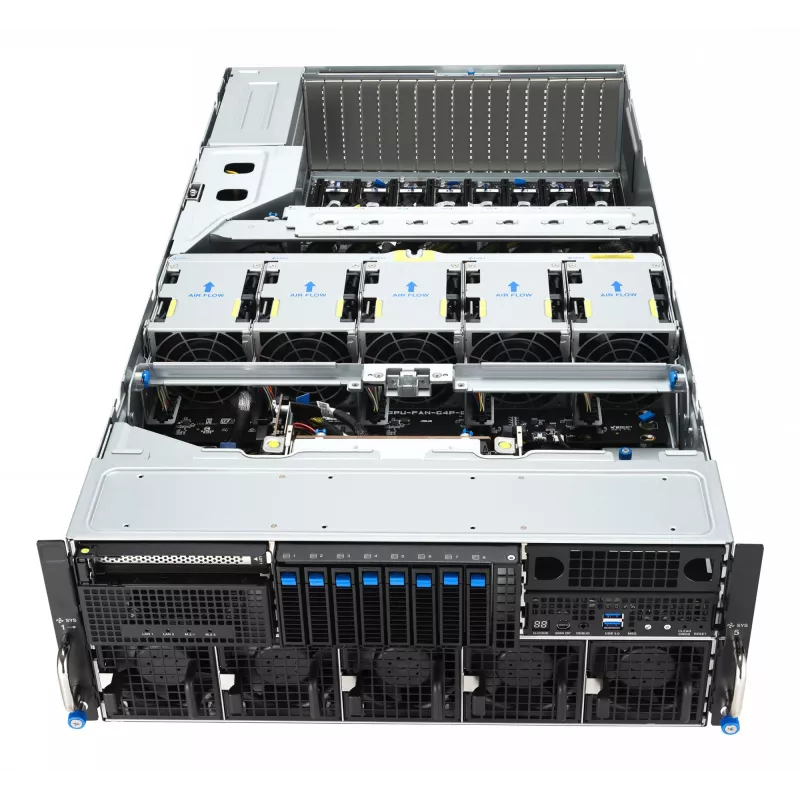

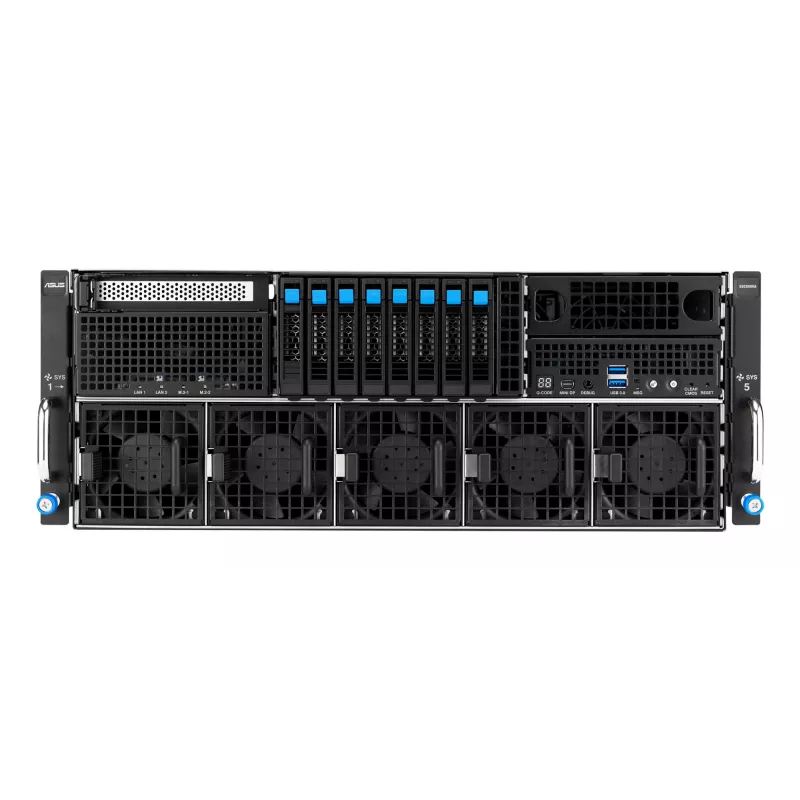

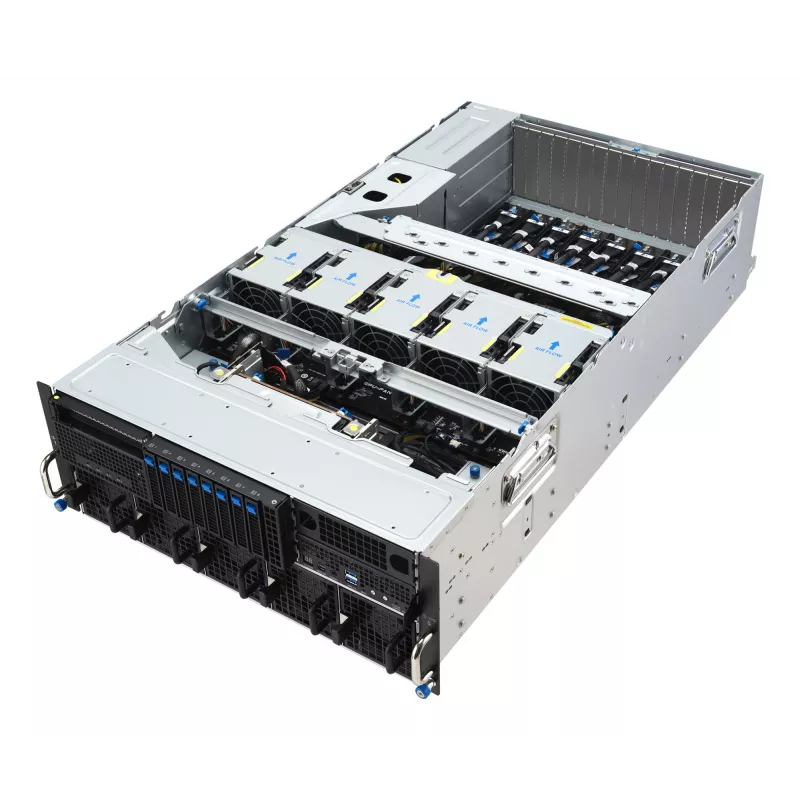

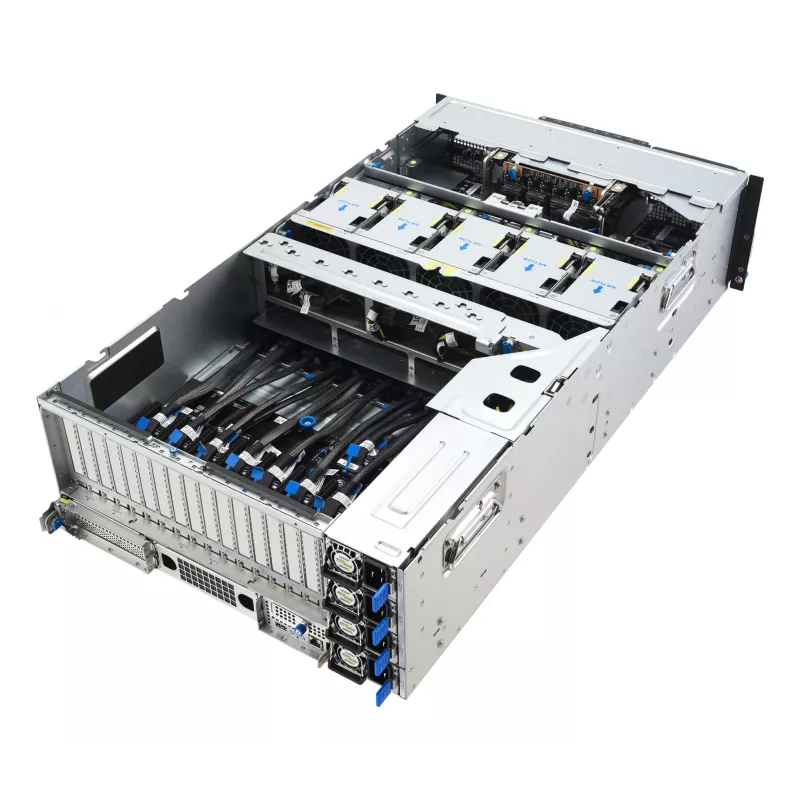

ASUS ESC8000A-E13 is a 4U rack server engineered for high-density compute and memory-intensive workloads. It supports dual AMD EPYC processors in LGA 6096 sockets, up to 24 DDR5 DIMMs for a maximum internal memory of 3 TB, and is designed to house up to eight dual-slot GPUs in a single 4U chassis. The server accepts 2.5" U.2 NVMe drives, implements hot-swap drive bays, and includes a 3200 W AC power supply operating on 220–240 V, 50/60 Hz. Built for data center, AI and HPC environments, the ESC8000A-E13 emphasizes direct GPU support, low-latency PCIe 5.0 connectivity and scalable storage options.

Advantages

The ESC8000A-E13 combines high compute density with flexible configuration options: support for dual AMD EPYC processors and 24 DDR5 DIMMs ensures large memory capacity and high throughput for parallel workloads. Native support for up to eight dual-slot NVIDIA GPUs provides a compact platform for intensive AI training and inference tasks while two PCIe 5.0 slots deliver high-bandwidth connectivity for NICs and accelerators. The server’s toolless design and hot-swap bays simplify maintenance and reduce downtime, and integrated management and hardware Root-of-Trust enhance deployment security and remote administration.

Suitable for

• AI training and inference clusters
• High-performance computing (HPC)
• Virtualization and large-scale VDI deployments
• Data center compute nodes
• GPU-accelerated rendering and simulation

Key specifications

• Form factor: 4U rack chassis
• Processor sockets: dual-socket LGA 6096 supporting AMD EPYC series
• Memory: up to 24 DDR5 DIMM slots, maximum internal memory 3 TB
• GPU capacity: supports up to eight dual-slot GPUs (dual-slot GPU form factor)
• Expansion: two PCIe 5.0 slots for high-bandwidth devices
• Storage: up to six 2.5" U.2 NVMe drives (configurable), hot-swap drive bays

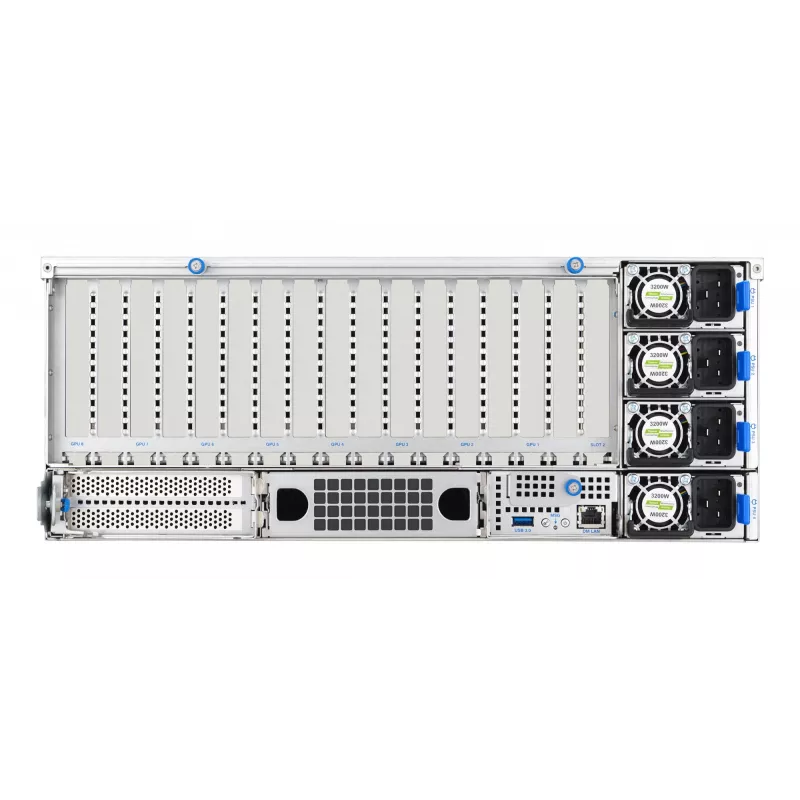

• Power supply: 3200 W AC
• Operating voltage/frequency: 220–240 V, 50/60 Hz
• Chassis colour: Silver
• Weight: 42 kg (approx.)

How to use

Install the ESC8000A-E13 in a compatible 19-inch rack and connect the AC input to a power source that meets the specified 220–240 V, 50/60 Hz range. Populate CPUs in the LGA 6096 sockets following AMD and ASUS installation guidelines, and install DDR5 DIMMs across the 24 slots to achieve the desired memory capacity and channel balance. Mount GPUs in the supported dual-slot bays and configure GPU interconnects or NVLink bridges as needed. Configure storage using the available U.2 NVMe bays or additional RAID options where supported, then connect network and management interfaces. Use ASUS Control Center or other supported management tools to perform firmware updates, monitor health, and manage provisioning.

Recommendations

For optimal performance, balance memory population across channels, follow ASUS guidelines for CPU and GPU cooling and power distribution, and use certified NVMe drives and GPU models. Ensure adequate rack power and cooling capacity when populating multiple high-TDP GPUs and configure management software for proactive monitoring and firmware maintenance.
