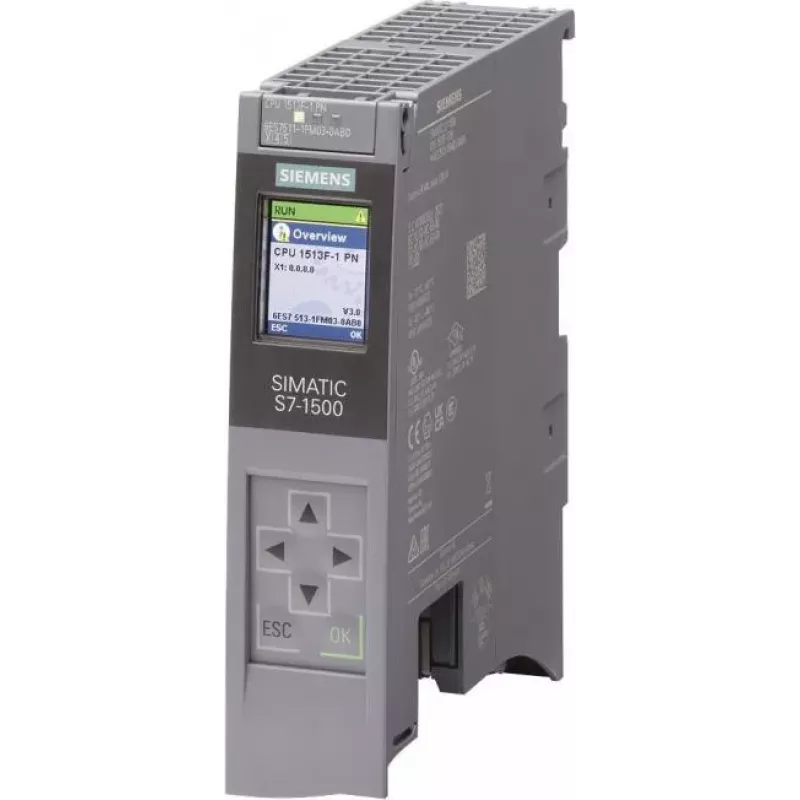

Siemens SIMATIC S7-1500F CPU 1513F-1 PN 6ES7513-1FM03-0AB0

The Siemens SIMATIC S7-1500F CPU 1513F-1 PN is a high-performance fail-safe CPU designed for safety-critical automation applications. It combines advanced processing capabilities with integrated safety functions, making it ideal for machinery and plant engineering where reliability and safety are paramount.

Advantages

This CPU offers a compact design with a powerful processor, ensuring fast execution of both standard and safety-related programs. The integrated PROFINET interface with a 2-port switch simplifies network topology and reduces wiring. With support for up to SIL 3 and PLe, it meets the highest safety standards. The integrated display and web server facilitate easy diagnostics and maintenance.

Suitable for

• Safety-critical automation systems in manufacturing, process, and energy industries
• Applications requiring fail-safe controllers up to SIL 3 / PLe
• Distributed automation with PROFINET communication
• Motion control and PID control tasks

Key specifications

• CPU Type: Fail-safe CPU
• Series: SIMATIC S7-1500
• Processor Model: CPU 1513F-1 PN
• Program Memory (Standard): 300 KB
• Program Memory (Fail-safe): 150 KB
• Data Memory (Standard): 1.5 MB
• Data Memory (Fail-safe): 750 KB
• Load Memory (Integrated): 4 MB
• PROFINET Interface: 1 (with 2-port switch)
• Safety Level: Up to SIL 3 (IEC 61508), PLe (ISO 13849-1)
• Bit Performance: 40 ns
• Integrated Display: Yes
• Integrated Web Server: Yes
• Communication Protocols: PROFINET IO, OPC UA, S7 communication
• Power Supply: 24 V DC
• Operating Temperature: 0 to 60 °C
• Programming Software: TIA Portal
• Max. IO Modules (Local): 32
• Integrated Technology: Motion Control, PID Control

Recommendations

For optimal performance, use this CPU with Siemens TIA Portal for programming and configuration. Ensure proper grounding and shielding according to Siemens guidelines. For safety applications, follow the relevant safety manuals and standards.
