SIGNAL ATK-ALP/LTE+SMA-KAT/10 antena direcional log-periódica 698-2700 MHz 9 dBi ficha SMA 10 m H155

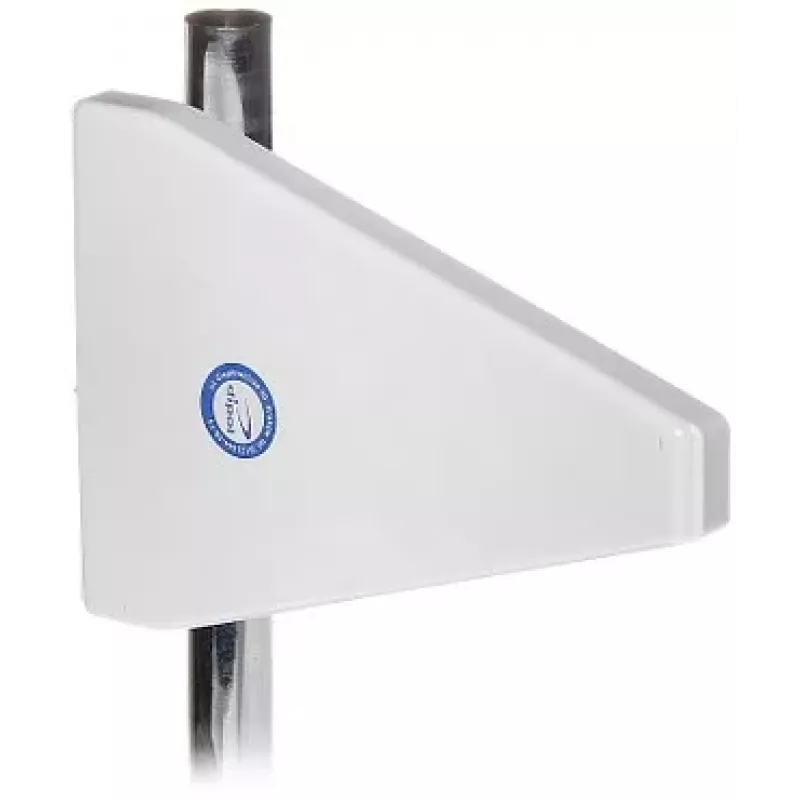

The SIGNAL ATK-ALP/LTE+SMA-KAT/10 is a high-performance log-periodic directional antenna designed for outdoor signal enhancement across GSM, DCS, UMTS, HSDPA, and LTE networks. With a wide frequency range of 698-2700 MHz and 9 dBi gain, it provides reliable connectivity for 2G, 3G, and 4G applications. The antenna includes a 10-meter H155 low-loss cable with SMA male connector, ensuring easy installation and minimal signal loss.

Advantages

This antenna offers superior directional performance with a front-to-back ratio >15 dB, reducing interference from unwanted directions. Its UV-resistant aluminum and ABS construction ensures durability in harsh outdoor environments. The included U-bolt pole mount simplifies installation on masts or brackets.

Suitable for

• Enhancing cellular signal in rural or weak coverage areas
• Fixed outdoor installations for GSM/DCS/UMTS/HSDPA/LTE networks
• Applications requiring directional signal reception and transmission

Key specifications

• Antenna Type: Log-Periodic Directional
• Frequency Range: 698-2700 MHz
• Gain: 9 dBi
• Polarization: Linear (Vertical)
• VSWR: <1.5
• Impedance: 50 Ohm
• Connector: SMA Male
• Cable: 10m H155 Low-Loss
• Mounting: Pole Mount (U-bolt clamp included)
• Horizontal Beamwidth: 50°
• Vertical Beamwidth: 40°
• Front-to-Back Ratio: >15 dB
• Max Input Power: 50 W
• Operating Temperature: -40°C to +70°C
• Material: Aluminum, ABS (UV resistant)
• Placement: Outdoor

Recommendations

For optimal performance, mount the antenna vertically with clear line of sight to the nearest cell tower. Use appropriate lightning protection and ensure the cable is properly sealed against moisture. Compatible with most GSM/3G/4G routers and modems with SMA connectors.
