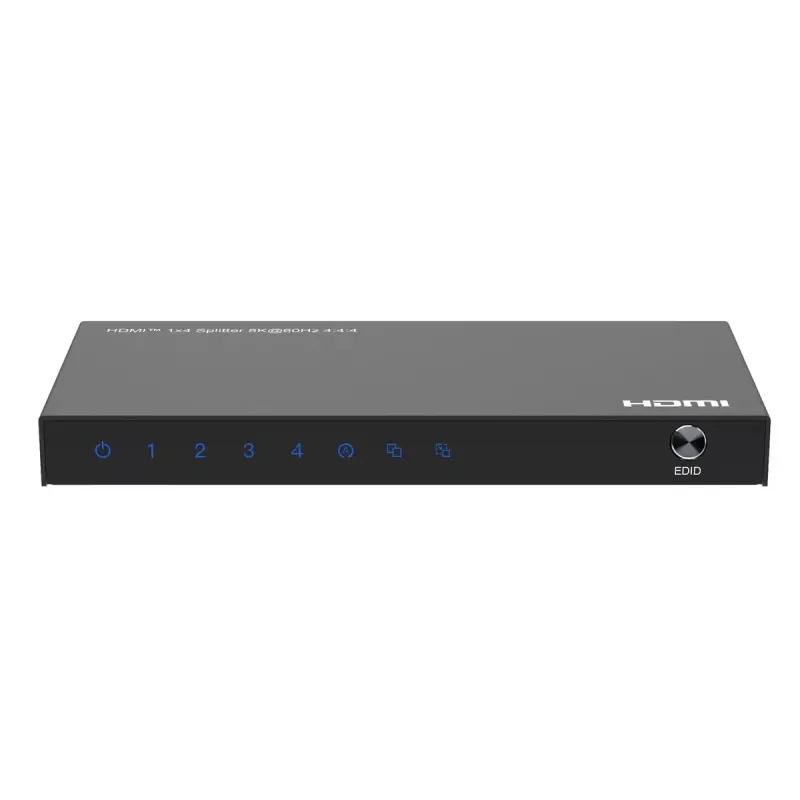

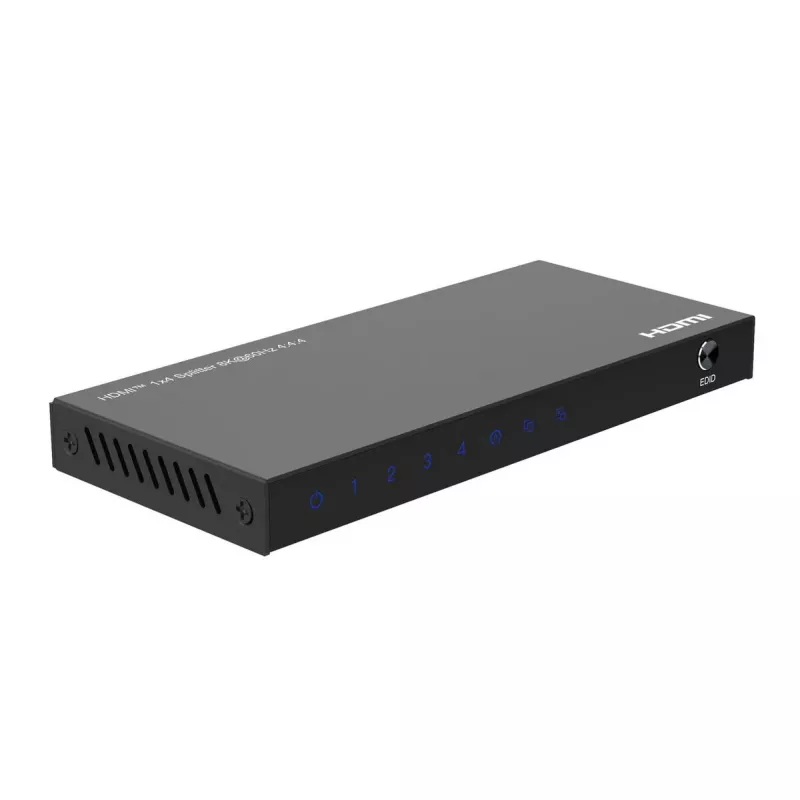

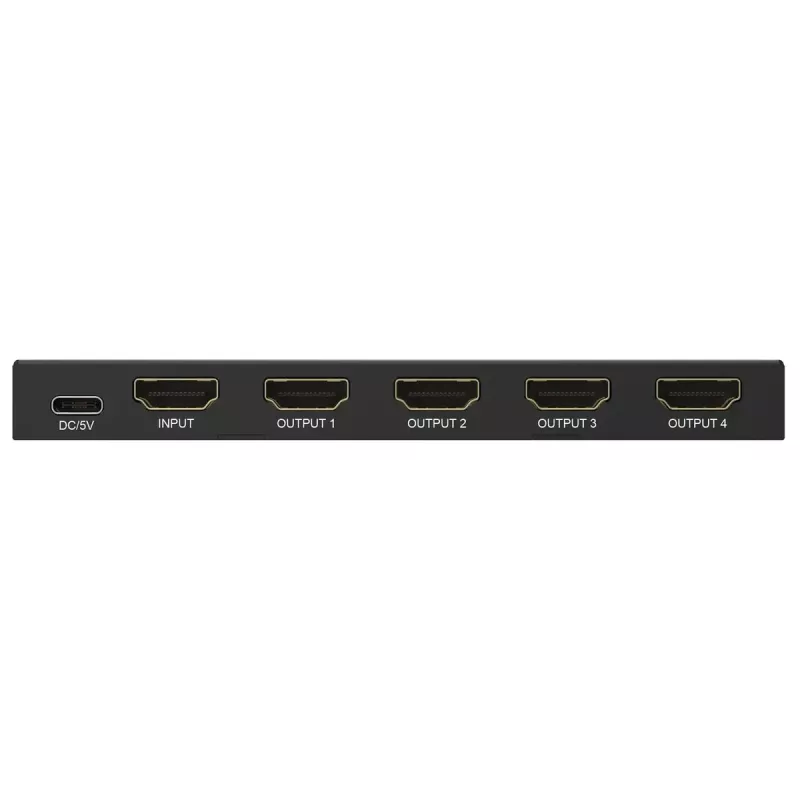

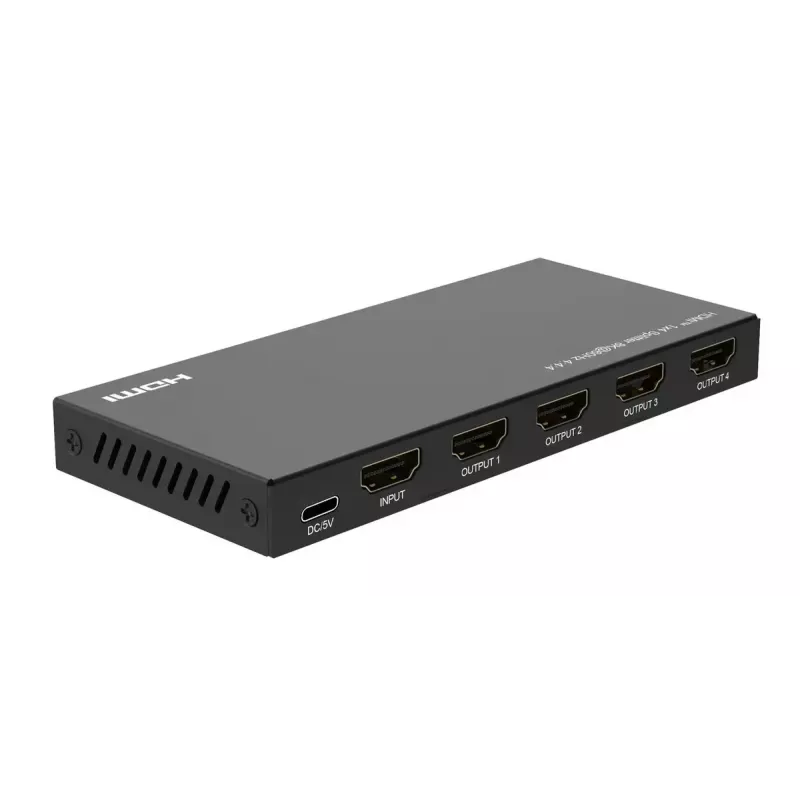

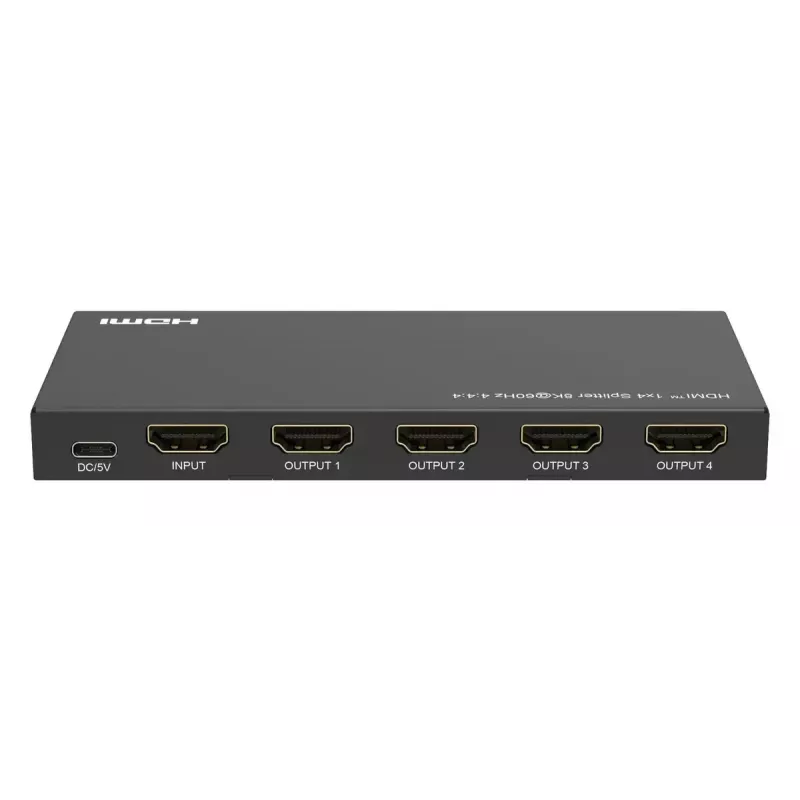

Splitter HDMI MicroConnect MC-HDMISPLITTER0104-8K 4K 60Hz

The MicroConnect MC-HDMISPLITTER0104-8K HDMI 1x4 splitter distributes a single HDMI source to four HDMI displays or projectors while preserving high-definition video and audio. It supports up to 8K@60Hz (4:4:4), 4K@120Hz and 1080p@240Hz, and remains backward compatible with earlier HDMI versions. The device includes three EDID modes—Auto, Copy and Downscaler—to match output resolution and audio format to connected screens for consistent performance across mixed-display setups.

Advantages

The splitter provides lossless transmission of Ultra HD signals to multiple displays simultaneously and supports high refresh rates for gaming and fast-motion video. Built-in EDID management simplifies compatibility with different monitors and projectors, while support for 8K and 4K resolutions ensures future-proofing for advanced displays. The unit is suitable for installations where a single source must feed several screens without compromising image quality.

Suitable for

• Home theaters and multi-room AV setups
• Gaming stations requiring high refresh rates
• Digital signage and retail displays
• Presentations and conference rooms
• Professional AV installations and classrooms

Key specifications

• Model: MicroConnect MC-HDMISPLITTER0104-8K (MPN: MC-HDMISPLITTER0104-8K)
• EAN: 5715063739617
• Type: HDMI 1x4 splitter
• Maximum resolution: 8K@60Hz (4:4:4)
• Also supports: 4K@120Hz, 1080p@240Hz
• EDID modes: Auto, Copy, Downscaler
• Compatibility: Backward compatible with previous HDMI versions

How to use

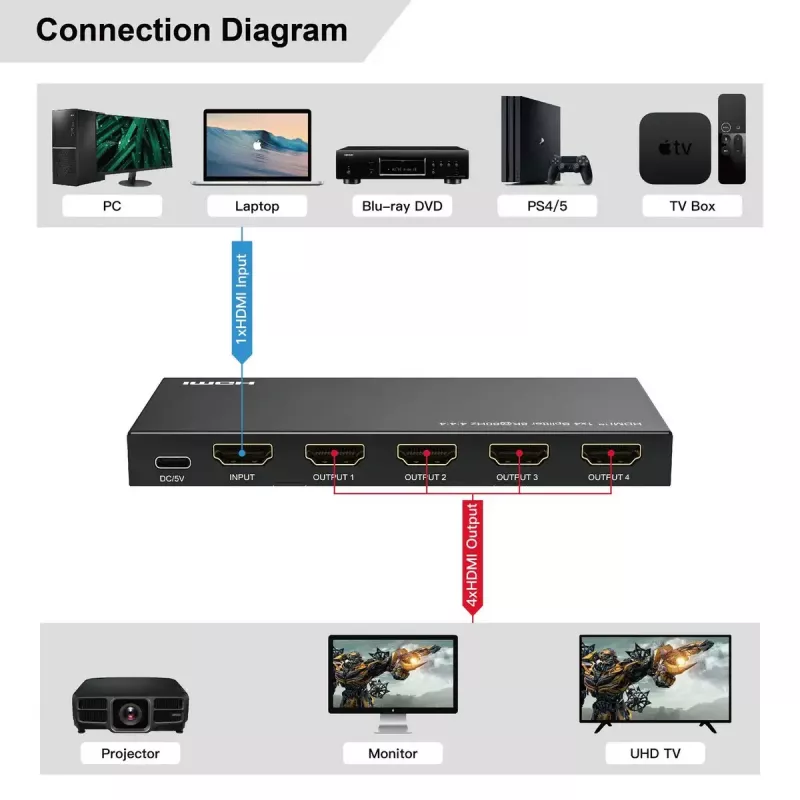

Connect the HDMI output of your source device (PC, Blu‑ray player, set-top box or media player) to the splitter's input, then connect up to four HDMI displays to the splitter outputs. Power the splitter if a dedicated power adapter is provided. Select the appropriate EDID mode (Auto, Copy or Downscaler) to ensure the displays receive the optimum resolution and audio format. Verify the resolution and refresh rate settings on both the source device and each display to achieve the desired output.

Recommendations

For best results, use high-quality HDMI cables rated for the target resolution and refresh rate (e.g., HDMI 2.1 cables for 8K@60Hz or 4K@120Hz). When mixing displays with different maximum resolutions, experiment with the EDID modes to obtain stable output across all connected screens.
