STAFF ZUMTOBEL Zumtobel ROXY 1500 D 5500 840 FLEX Luminária LED de Superfície Multilumen

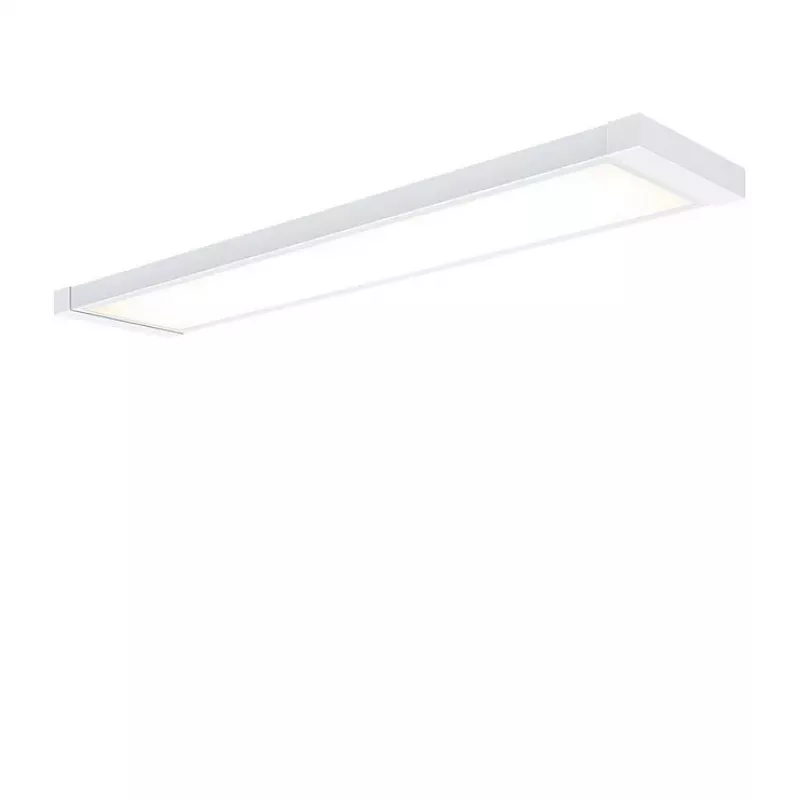

The Zumtobel ROXY 1500 D 5500 840 FLEX LED Surface-Mounted Luminaire is a high-performance, energy-efficient lighting solution designed for professional environments. With its adjustable lumen output and neutral white light, it offers flexibility and superior illumination for a variety of applications.

Advantages

This luminaire features Multilumen technology, allowing you to select between 5500 lm, 4500 lm, or 3500 lm via a DIP switch, ensuring the perfect light level for your space. Its high efficacy of up to 145 lm/W reduces energy consumption while delivering excellent brightness. The robust aluminium profile and PMMA diffuser guarantee long-lasting performance and even light distribution.

Suitable for

• Office spaces
• Retail environments
• Educational facilities
• Healthcare settings
• Corridors and lobbies

Key specifications

• Product Type: LED Surface-Mounted Luminaire
• Light Distribution: Direct
• Nominal Luminous Flux: 5500 lm (adjustable to 4500 lm, 3500 lm)
• Color Temperature: 4000 K (Neutral White)
• Color Rendering Index (CRI): >80
• Nominal Power Consumption: 38 W (at 5500 lm)
• Luminous Efficacy: 145 lm/W (at 5500 lm)
• Control Gear: Integrated, switchable lumen output (Multilumen)
• Dimming Capability: No (lumen output selectable via DIP switch)
• Housing Material: Aluminium profile, plastic end caps
• Diffuser Material: PMMA (Opal)
• Ingress Protection (IP) Rating: IP20
• Impact Protection (IK) Rating: IK03
• Lifetime (L80/B50): 50,000 h
• Electrical Connection: 3-pole terminal block
• Nominal Voltage: 220-240 V AC
• Frequency: 50/60 Hz
• Mounting Type: Surface-mounted (ceiling or wall)
• Operating Temperature Range: +5 to +35 °C

Recommendations

For optimal performance, install in dry indoor environments with stable temperatures. Ensure proper electrical connection by a qualified professional. The adjustable lumen output allows customization to meet specific lighting requirements.
