Suporte de montagem Stealkey Customs SK-UNI aço preto 115 mm 60 mm

The SK-UNI mounting bracket 60mm (for 120mm fans) is a folded steel bracket finished in black paint. It creates a 60mm separation to allow installation of D5-style pumps and is designed to mount SK-UNI Distroplates/Reservoirs and CubeTube Distroplates to 120mm (105mm hole spacing) fan/radiator grilles or fan housings. The bracket increases available airflow by spacing the distroplate or reservoir away from the fan or radiator, while providing a stable, durable attachment.

Advantages

The bracket is made from 1.5 mm folded steel for rigidity and long-term stability. Its 60 mm distance permits pump installation behind the distroplate or reservoir without interfering with the fan or radiator. Supplied in black finish, the bracket is corrosion-resistant under normal indoor use and helps maintain unobstructed airflow through the chassis. The package includes two brackets, M4 washers, and mounting screws for straightforward installation.

Suitable for

• Mounting SK-UNI Distroplates or CubeTube Distroplates to 120mm fan grilles or radiators (105mm hole spacing)
• Installing distroplates or reservoirs with D5-style pumps behind 120mm fans
• Applications requiring increased airflow clearance between components and fans/radiators

Key specifications

• Material: 1.5 mm folded steel
• Finish: Black painted
• Width: 115 mm
• Depth: 13 mm
• Height / Spacer distance: 60 mm
• Compatible fan size: 120 mm (105 mm hole spacing)

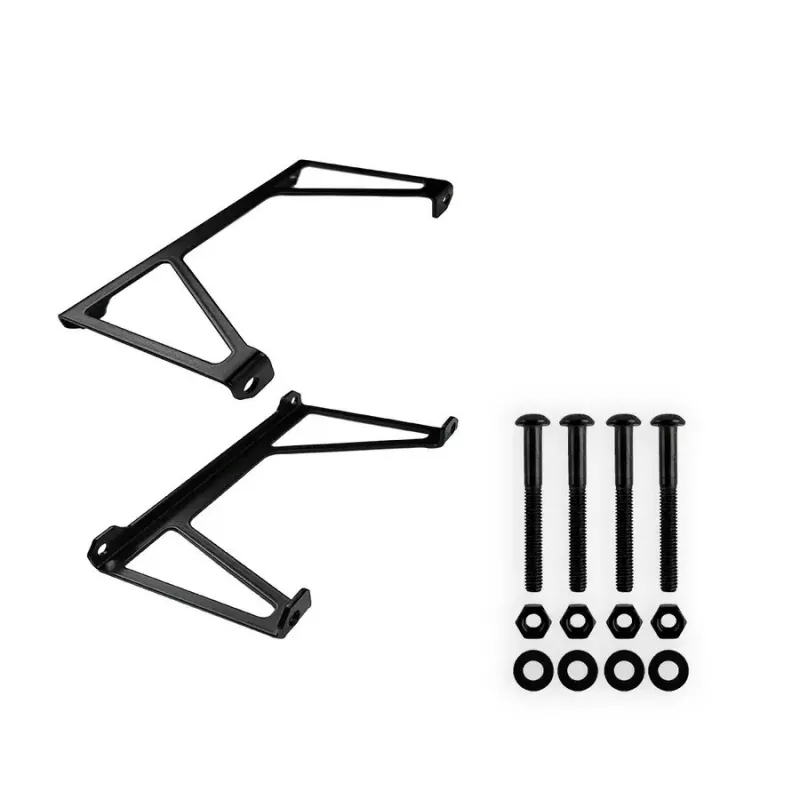

• Includes: 2 brackets, M4 washers, mounting screws

How to use

Position the SK-UNI mounting bracket on the radiator or fan grille aligning the bracket holes with the 105 mm hole spacing for a 120 mm fan. Secure the bracket using the supplied mounting screws and M4 washers, then attach the SK-UNI Distroplate or CubeTube Reservoir so that the 60 mm spacer provides clearance for an optional D5 pump. Verify all fasteners are tightened evenly and that the bracket does not contact the fan blades or obstruct radiator fins.

Recommendations

For best results, install the bracket in a powered-off system on a stable surface. Check that the pump and reservoir orientation allow unobstructed tubing routing and airflow; avoid overtightening screws to prevent deformation of the bracket or damage to components.
