Suporte de parede Hagor BL Superslim 400 55 polegadas

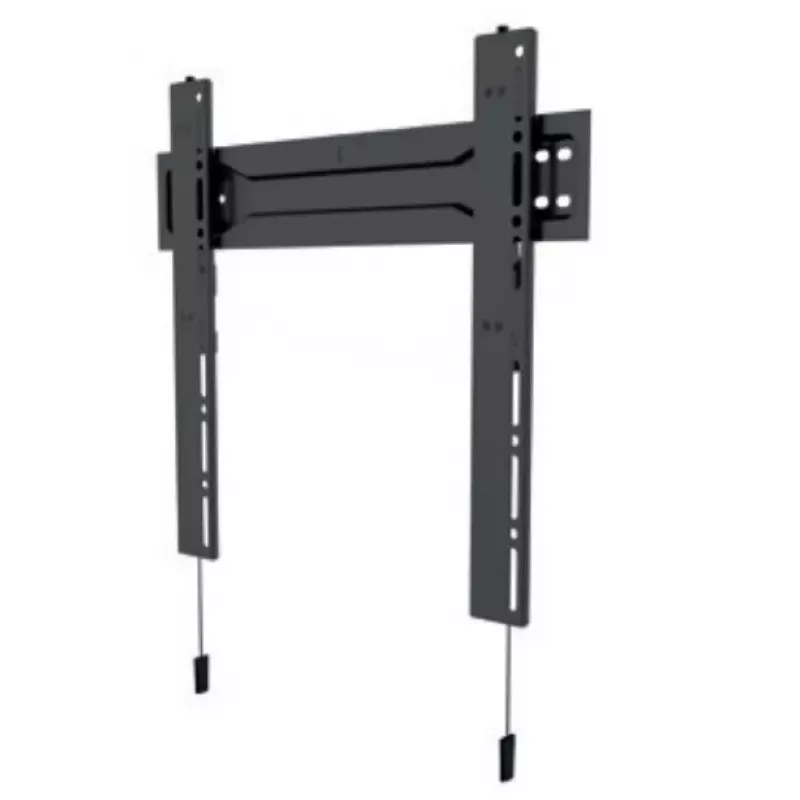

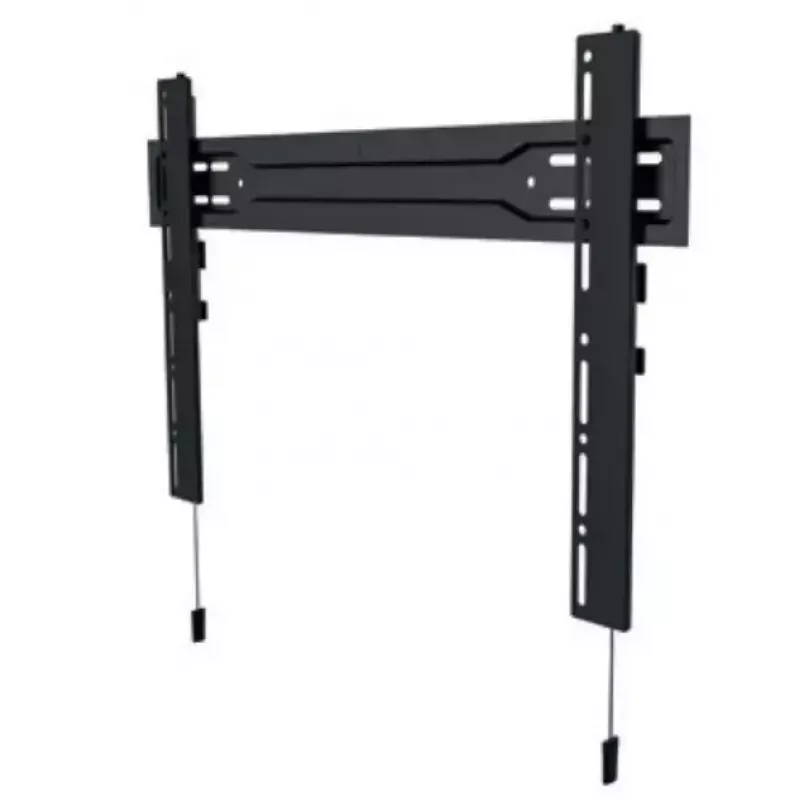

The BL Superslim 400 is a fixed wall mount for screens with diagonals between 32 and 55 inches (81–140 cm). It supports VESA patterns from 100 x 100 mm up to 400 x 400 mm and is finished in black with an impact- and scratch-resistant powder coating.

Advantages

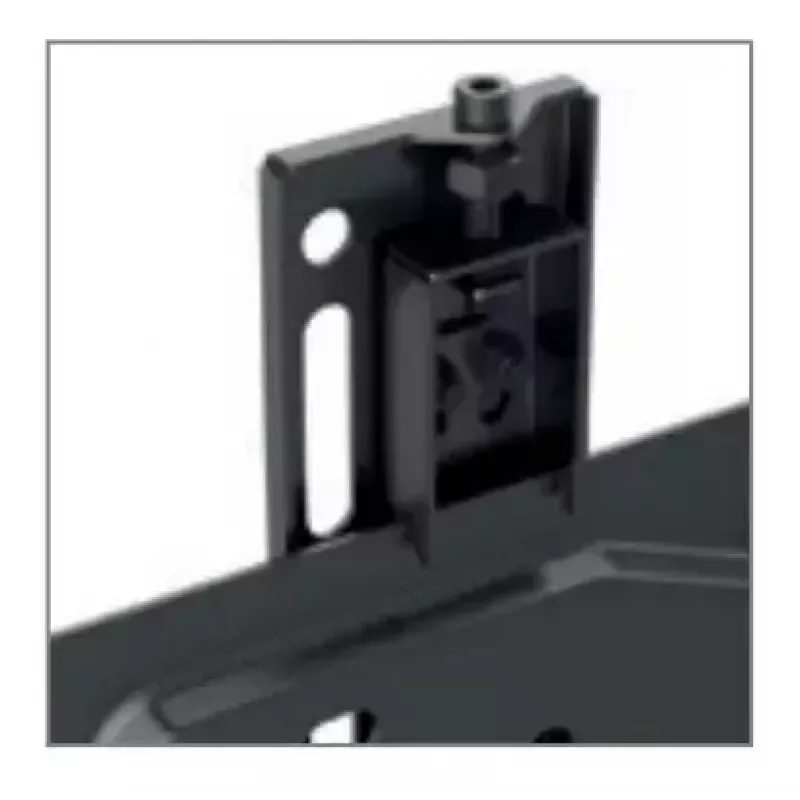

The mount sits just 18 mm from the wall for a low-profile installation. Independent height adjustment of ±8 mm is possible on each side using adjusting screws. A rope-actuated spring-loaded quick-release latch on the back enables easy removal, and included magnets hold the latch in place when mounted.

Suitable for

• Wall mounting single flat-panel TVs or monitors 32–55"
• Screens with VESA patterns from 100 x 100 mm to 400 x 400 mm
• Installations requiring a slim, low-profile mount

Key specifications

• Supported screen diagonal: 32–55" (81–140 cm)
• VESA compatibility: 100 x 100 mm up to 400 x 400 mm
• Wall distance: 18 mm
• Height adjustment: ±8 mm per side (independent)
• Finish: impact- and scratch-resistant powder coating, black
• Quick release: rope-drawn spring-loaded latch with magnetic fixation
• Maximum load: 40 kg (per source text)

How to use

Mount the wall bracket to a suitable load-bearing surface following the VESA pattern of your screen. Attach the screen to the bracket using the matching VESA screw holes and secure the quick-release latch; the magnets will hold the latch in position. Use the adjusting screws on each side to set a final height offset of up to ±8 mm if needed. Verify that the screen is level and that all fasteners are tightened before use.

Recommendations

Ensure the mounting surface and fasteners are rated for the combined weight of the screen and mount. If in doubt, consult a qualified installer and use appropriate anchors for the wall material.
