Suporte Keystone DELOCK 12 portas para montagem em calha DIN e manual (modelo 90631)

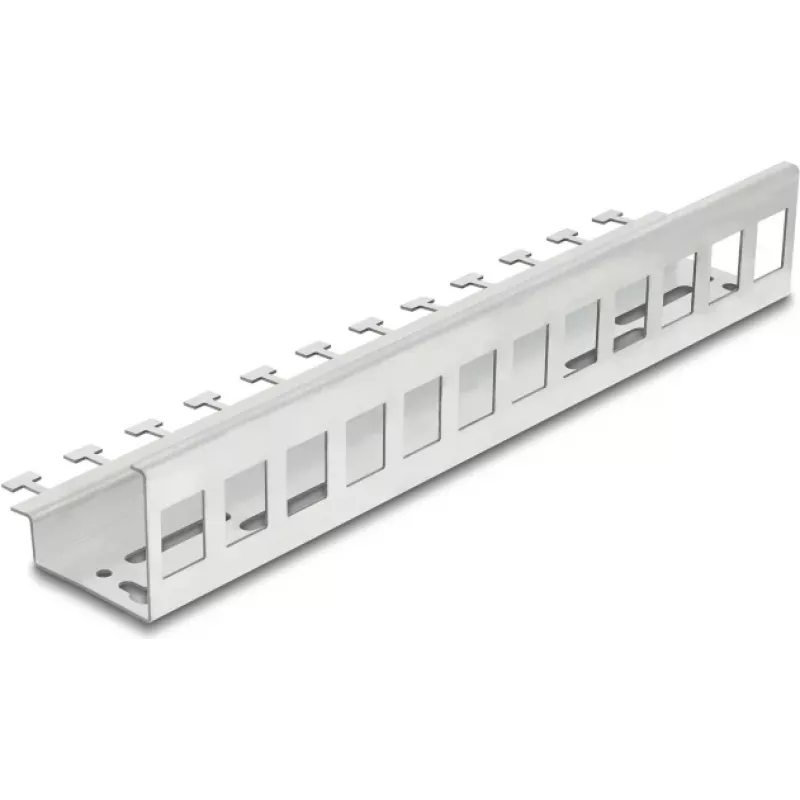

DELOCK Keystone Holder 12 Ports for DIN Rail and Hand Mounting is a compact modular panel designed to accommodate up to twelve keystone jacks. The holder provides a structured solution for installing voice, data or multimedia keystone modules in industrial and commercial environments. It is suitable for mounting on standard DIN rails or for direct hand mounting inside cabinets, distribution boxes or custom enclosures, enabling organized port layout and simplified maintenance.

Advantages

The keystone holder offers flexible installation options by supporting both DIN rail attachment and hand mounting, reducing the need for additional adapters. Its modular design allows quick insertion and removal of individual keystone jacks, improving serviceability and enabling straightforward expansion of network or audio/video ports. The compact footprint and clear port arrangement help maintain tidy cable routing and efficient use of enclosure space.

Suitable for

Key specifications

How to use

Install the holder by clipping it onto a compatible DIN rail or securing it inside an enclosure using the hand mounting points. Insert keystone jacks into the module openings until they click into place; ensure each jack is aligned correctly and fully seated. Route cabling to the installed modules and make the necessary terminations according to the keystone jack type. For removal, depress the retention clips and pull the module straight out to avoid damaging adjacent ports.

Recommendations

For optimal cable management, label each keystone jack after installation and maintain bend radius guidelines for the connected cables. When using in industrial environments, place the holder inside an appropriate enclosure to protect against dust and physical contact. Verify the compatibility of keystone module dimensions before mounting to ensure a secure fit.
