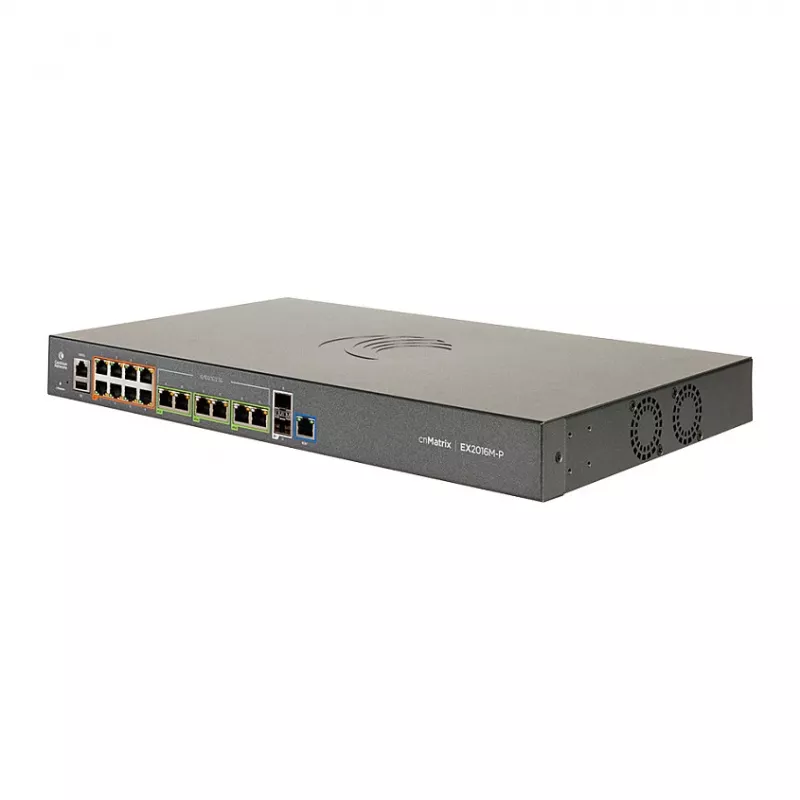

Switch Ethernet PoE inteligente Cambium Networks cnMatrix EX2016M-P 16 portas 1 Gbps

The Cambium Networks cnMatrix EX2016M-P is a high-performance intelligent Ethernet PoE switch designed for enterprise and service provider networks. It delivers reliable connectivity with 16 Gigabit Ethernet ports, all supporting Power over Ethernet (PoE) for simplified deployment of powered devices such as IP cameras, wireless access points, and VoIP phones. This switch combines advanced Layer 2 switching features with robust security and management capabilities, making it an ideal choice for edge and access layer deployments.

Advantages

With its compact form factor and fanless design, the EX2016M-P operates silently and can be deployed in noise-sensitive environments like offices and classrooms. The switch supports PoE+ (IEEE 802.3at) on all ports, delivering up to 30W per port with a total PoE budget of 240W, enabling flexible device placement without the need for separate power outlets. Its intelligent power management ensures efficient allocation of power to connected devices. The switch also features a user-friendly web interface and supports SNMP for easy network monitoring and configuration.

Suitable for

• Enterprise access layer networks requiring PoE for IP phones, cameras, and WAPs
• Small to medium business (SMB) deployments needing reliable and secure switching
• Education and hospitality environments where silent operation is essential
• Service provider CPE and managed network installations

Key specifications

• 16 Gigabit Ethernet ports with PoE+ (IEEE 802.3at)
• Total PoE budget: 240W
• Switching capacity: 32 Gbps
• MAC address table: 8K entries
• Jumbo frame support: up to 9K bytes
• VLAN support: up to 4K VLANs
• Quality of Service (QoS) with 8 priority queues
• Security: 802.1X, ACL, DHCP snooping, IP Source Guard
• Management: Web GUI, CLI, SNMP v1/v2c/v3, RMON
• Fanless design for silent operation
• Dimensions (W x D x H): 330 x 230 x 44 mm (1U height)
• Weight: 3.2 kg
• Power supply: Internal AC 100-240V, 50/60Hz
• Operating temperature: 0°C to 50°C
• Storage temperature: -40°C to 70°C
• Operating humidity: 10% to 90% non-condensing
• MTBF: 500,000 hours

Recommendations

For optimal performance, use Category 5e or higher cabling for all connections. The switch is rack-mountable with included brackets. For advanced configurations, refer to the Cambium Networks cnMatrix configuration guide. This product is backed by a limited lifetime warranty.
