Switch gerido Cisco Catalyst IE3300

Switch gerido Cisco Catalyst IE3300
60 meses
Switch gerido Cisco Catalyst IE3300
8 221,02 €
PDF
PDF
Stock EsgotadoSem stock Código 125639 Modelo IE-3300-8P2S-E Garantia 5 anos

Envios e devoluções

Faça uma pergunta – o assistente IA responde de imediato.

Descrição

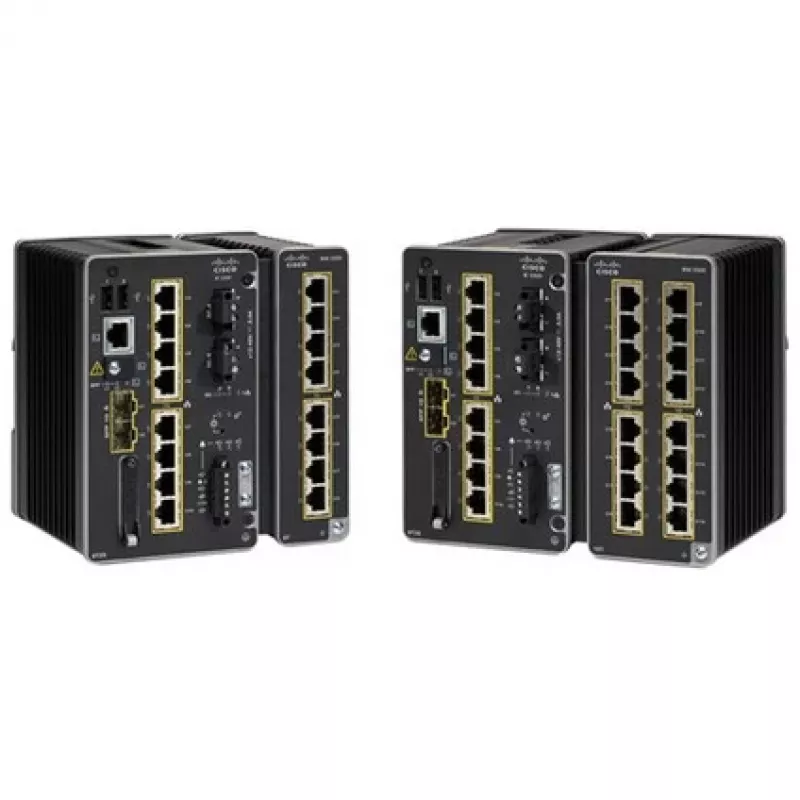

The Cisco Catalyst IE3300 Rugged Series is a managed switch that provides Gigabit Ethernet connectivity in a compact, rugged form factor for industrial and extended enterprise deployments. The modular design supports expansion modules to increase port count and offers a PoE/PoE+ power budget for powering edge devices. The platform runs Cisco IOS XE with built-in security features and open APIs for automation, and it is suitable for harsh environments such as manufacturing, energy, transportation, mining, smart cities, warehouses and distribution centers.

Advantages

The IE3300 delivers high-speed 10G-capable RJ-45 ports in a hardened chassis with modular expandability up to 26 Gigabit Ethernet ports. It supports robust security features including secure boot, image signing and the Cisco Trust Anchor module, and provides API-driven management via Cisco IOS XE. The switch integrates with Cisco management tools such as Cisco DNA Center and Cisco Industrial Network Director and includes a modern WebUI for simplified setup. With support for Full Flexible NetFlow and visibility tools like Cisco Stealthwatch, it enables traffic monitoring and threat analysis. The platform also offers a shared PoE/PoE+ budget (up to 360 W with expansion module) suitable for powering IP cameras, phones, wireless access points and sensors.

Suitable for

  • Industrial automation and manufacturing floor networks
  • Energy and oil & gas field installations
  • Transportation and railway communications
  • Mining and remote-site infrastructure
  • Smart city deployments, outdoor and distributed enterprise sites
  • Warehouses and distribution centre connectivity

Key specifications

  • Model: Managed Switch Cisco Catalyst IE3300 (IE-3300-8P2S-E)
  • Ports: 8 × 10G Ethernet RJ-45 (100/1000/10000) with modular expansion options (up to 26 ports)
  • Switch type: Managed L2
  • Standards: IEEE 802.1w, 802.3x, 802.3u, 802.3ah, 802.3ab, 802.3, 802.1s, 802.1p, 802.1ab, plus timing and wireless-related standards listed by vendor
  • MAC address table: 8000 entries
  • Power: DC input range 9.6–60 V; AC-in jack available; PoE/PoE+ shared budget up to 360 W with expansion module
  • Colour: Black
  • Management: Cisco IOS XE, WebUI, Cisco DNA Center, Cisco Industrial Network Director

How to use

Install the IE3300 in the chosen location and connect power using the appropriate DC or AC input following site requirements. Populate any required expansion modules to achieve the needed port density, then connect network devices to the RJ-45 ports. Use the WebUI for initial setup or configure the switch through Cisco IOS XE CLI or APIs. Integrate the device with Cisco DNA Center or Cisco Industrial Network Director for centralized management, apply access and security policies, and enable Full Flexible NetFlow if traffic visibility and monitoring are required.

Recommendations

Deploy the switch in environments that require hardened networking hardware and ensure proper grounding and surge protection in industrial installations. Distribute PoE-powered devices across ports to balance the shared PoE budget and monitor power consumption if many PDs are connected. Keep firmware updated to maintain security features provided by Cisco IOS XE.

Destaques principais
  • Industrial automation and manufacturing floor networks
  • Energy and oil & gas field installations
  • Transportation and railway communications
  • Mining and remote-site infrastructure
  • Smart city deployments, outdoor and distributed enterprise sites
  • Warehouses and distribution centre connectivity
  • Model: Managed Switch Cisco Catalyst IE3300 (IE-3300-8P2S-E)
  • Ports: 8 × 10G Ethernet RJ-45 (100/1000/10000) with modular expansion options (up to 26 ports)
  • Switch type: Managed L2
  • Standards: IEEE 802.1w, 802.3x, 802.3u, 802.3ah, 802.3ab, 802.3, 802.1s, 802.1p, 802.1ab, plus timing and wireless-related standards listed by vendor
  • MAC address table: 8000 entries
  • Power: DC input range 9.6–60 V; AC-in jack available; PoE/PoE+ shared budget up to 360 W with expansion module
  • Colour: Black
  • Management: Cisco IOS XE, WebUI, Cisco DNA Center, Cisco Industrial Network Director

Especificações

Especificações
Agregação de ligações
Sim
Algoritmos de segurança
802.1x RADIUS
Alimentação sobre Ethernet (PoE)
No
Altitude fora de funcionamento
0 - 4572
Altura
50.8 mm
Autenticação
VLAN de convidado
Cabos incluídos
AC
Camada de comutação
L2
Certificação
UL, BSMI CNS 13438 Class A, CISPR 24, cUL, EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, NOM, VCCI Class A ITE, IEC 60950, EN55
Código de proteção internacional (IP)
IP20
Código do Sistema Harmonizado (HS)
85176990
Compatibilidade com multicast
Sim
Compatibilidade com Quality of Service (QoS)
Sim
Conector de alimentação
Tomada de entrada CA
Consumo de energia (típico)
6 W
Controlo de tempestade de broadcast
Sim
Cor do produto
Preto
Corrente de entrada
6.3
Entradas IGMP
1000
Entradas IPv4 da lista de controlo de acesso (ACL)
2000
Entradas IPv6 na lista de controlo de acesso (ACL)
512
Filtragem de endereços MAC
Sim
Filtragem/proteção BPDU
Sim
Fonte de alimentação incluída
Sim
Frequência de entrada CA
50 - 60
Funcionalidades DHCP
Inspeção de DHCP
Humidade relativa de funcionamento (H-H)
5 - 95
IGMP snooping
Sim
Indicadores LED
Y
Inspeção ARP
Sim
Largura
152.4 mm
Lista de controlo de acesso (ACL)
Sim
Manual
Sim
Manual do utilizador
Sim
Memória flash
1500 MB
Memória interna
4000 MB
Montagem em calha DIN
Sim
Montagem em rack
Sim
Normas de rede
IEEE 802.1w, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ah, IEEE 802.3ab, IEEE 802.3, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ab, IEEE 802.11n, IEEE 802.11ac, IEEE 1588
Número de filas
8
Número de portas Ethernet RJ-45 de comutação básica
8
Porta de consola
RJ-45
Profundidade
127 mm
Protocolo spanning tree
Sim
Protocolos de comutação
IGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
Protocolos de gestão
IEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PAgP, LACP VTPv2, VTPv3, EtherChannel, voice VLAN, PVST+, MSTP, and RSTP
Registo de eventos do sistema
Sim
Suporte MIB
802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB
Tabela de endereços MAC
8000 entradas
Temperatura de armazenamento (T-T)
-40 - 85
Temperatura de funcionamento (T-T)
-40 - 70
Tempo médio entre falhas (MTBF)
3041040 h
Tensão de entrada CA
120 - 230
Tensão de entrada CC
9.6 - 60
Tipo de portas Ethernet RJ-45 de comutação básica
Ethernet 10G (100/1000/10000)
Tipo de switch
gerido
