Synergy 21 S215594V2 Pigtail de fibra ótica LC/APC 1,5m OS2 pack de 12 colorido

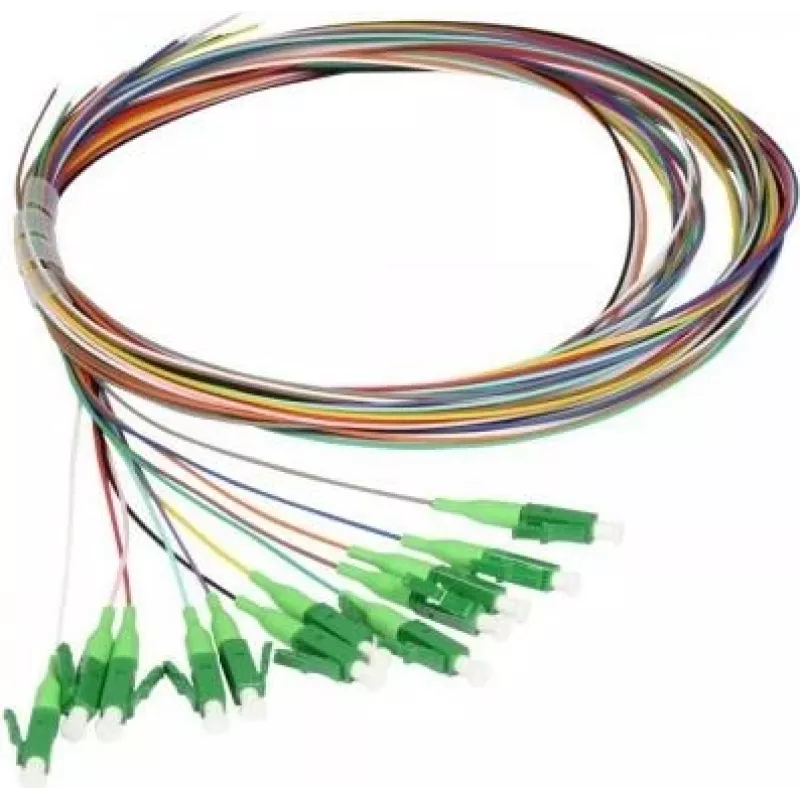

The Synergy 21 S215594V2 is a high-quality fibre optic pigtail designed for single-mode OS2 applications. This 12-pack includes pigtails in 12 distinct colours for easy identification, each terminated with an LC/APC connector on one end and bare fibre on the other. With a length of 1.5 metres and a 9/125 µm core/cladding, it ensures low insertion loss and high return loss, making it ideal for splicing, patch panels, and optical distribution frames.

Advantages

Colour-coded pigtails simplify cable management and reduce installation errors. The APC polish provides superior return loss performance, critical for high-speed networks. Each pigtail is factory-tested to meet industry standards, ensuring reliable performance in demanding environments.

Suitable for

• Fibre optic splicing and termination
• Patch panels and optical distribution frames (ODFs)
• FTTx and data centre installations
• Telecommunications and enterprise networks

Key specifications

• Cable type: Fibre optic pigtail
• Fibre type: OS2 single-mode
• Connector type (End 1): LC/APC
• Connector type (End 2): Unconnectorized (bare fibre)
• Cable length: 1.5 m
• Number of fibres: 12
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Buffer diameter: 0.9 mm
• Polishing type: APC (Angled Physical Contact)
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 60 dB
• Wavelengths supported: 1310 nm, 1550 nm
• Colour coding: Black, Blue, Brown, Green, Grey, Orange, Pink, Violet, Red, Turquoise, White, Yellow
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Compliance: Industry standards

Recommendations

For optimal performance, ensure clean and proper splicing using appropriate tools. Store in a clean, dry environment within the specified temperature range.
