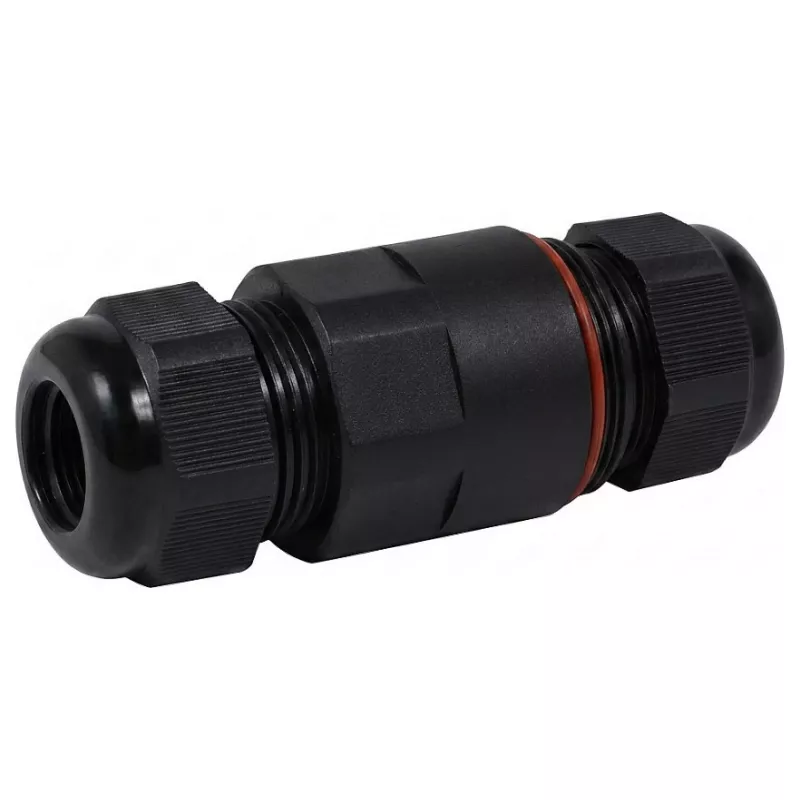

SYNERGY21 Conector de cabo para exterior IP68 com terminal de 3 polos (S21-COMP-2500140)

The SYNERGY21 Outdoor Cable Connector IP68 with 3-Pole Terminal is a robust, waterproof inline connector designed for reliable outdoor, underground, and wet area installations. Featuring a 3-pole screw terminal and IP68 protection, it ensures secure and durable connections for cables with diameters from 4mm to 8mm.

Advantages

IP68 rated for submersion up to 4 meters for 72 hours; screw terminal for easy, tool-free wiring; high-quality PA66 housing with silicone seal for long-lasting performance; wide operating temperature range from -40°C to +105°C.

Suitable for

• Outdoor lighting and power distribution
• Underground cable joints
• Garden and landscape installations
• Industrial wet area connections

Key specifications

• IP Protection Class: IP68
• Number of Poles: 3-pole
• Connection Type: Screw Terminal
• Rated Voltage: Max. 450V AC
• Rated Current: Max. 24A
• Cable Diameter Range: 4mm - 8mm
• Wire Cross-Section: 0.5mm² - 2.5mm²
• Housing Material: PA66 (Polyamide 66)
• Seal Material: Silicone
• Operating Temperature: -40°C to +105°C
• Flammability Rating: UL94-V2
• Gland Thread Size: M20
• Max. Water Depth (IP68): 4 meters for 72 hours
• Certification: CE, RoHS

Recommendations

For optimal performance, use with cables within the specified diameter range and ensure proper tightening of the screw terminal. Suitable for direct burial and continuous outdoor exposure.
