Synergy 21 Conector Easy Connect Fita-para-Fio 10mm CCT IP65/54 para Fita LED FLEX

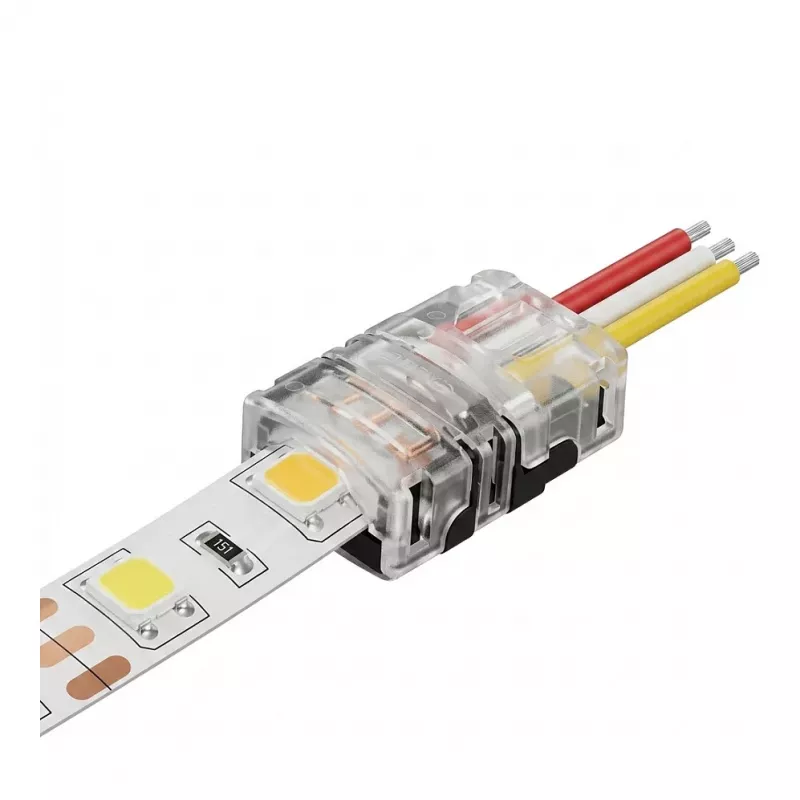

The Synergy 21 LED FLEX Strip Easy Connect Strip to Wire 10mm CCT IP65/54 Connector is a high-quality, solderless connector designed for quick and reliable connections between CCT LED strips and wires. Ideal for both indoor and outdoor applications, this connector maintains the IP rating of your LED strip, ensuring durability in damp or wet locations.

Advantages

This connector offers a solderless clamp-on design for both the strip and wire sides, making installation fast and easy without the need for special tools. Its compact size and transparent/white color blend seamlessly with LED strips, while the flame-retardant PC plastic and copper contacts ensure safety and longevity.

Suitable for

• Connecting 10mm wide CCT LED strips to wires
• Indoor and outdoor lighting installations requiring IP65/IP54 protection
• 12V or 24V DC LED systems
• Quick and easy solderless connections

Key specifications

• Product Type: LED Strip Connector
• Connector Style: Strip to Wire
• LED Strip Compatibility: CCT (Correlated Color Temperature) LED Strips
• LED Strip Width Compatibility: 10 mm
• Number of Contacts: 4-Pin
• Connection Method (Strip Side): Solderless Clamp-on
• Connection Method (Wire Side): Solderless Clamp-on
• IP Protection Class: IP65/IP54 Compatible
• Voltage Rating: 12V / 24V DC
• Max Current Rating: 5 A
• Wire Gauge Compatibility: 20-22 AWG (0.34-0.52 mm²)
• Material: Flame-retardant PC Plastic, Copper Contacts
• Color: Transparent / White
• Operating Temperature: -20°C to +60°C
• Application Environment: Indoor & Outdoor (Damp/Wet Locations)
• Installation Feature: Quick & Easy Solderless Installation
• Certifications: CE, RoHS Compliant
• Approximate Dimensions: L35 x W15 x H10 mm

Recommendations

For best results, ensure your LED strip is 10mm wide and CCT compatible. This connector is designed for use with Synergy 21 LED FLEX strips but is compatible with most standard 10mm CCT strips. Always verify voltage and current ratings before installation.
