Synergy 21 LED FLEX Strip Easy Connect Conector Strip to Strip 10mm CCT IP65/54

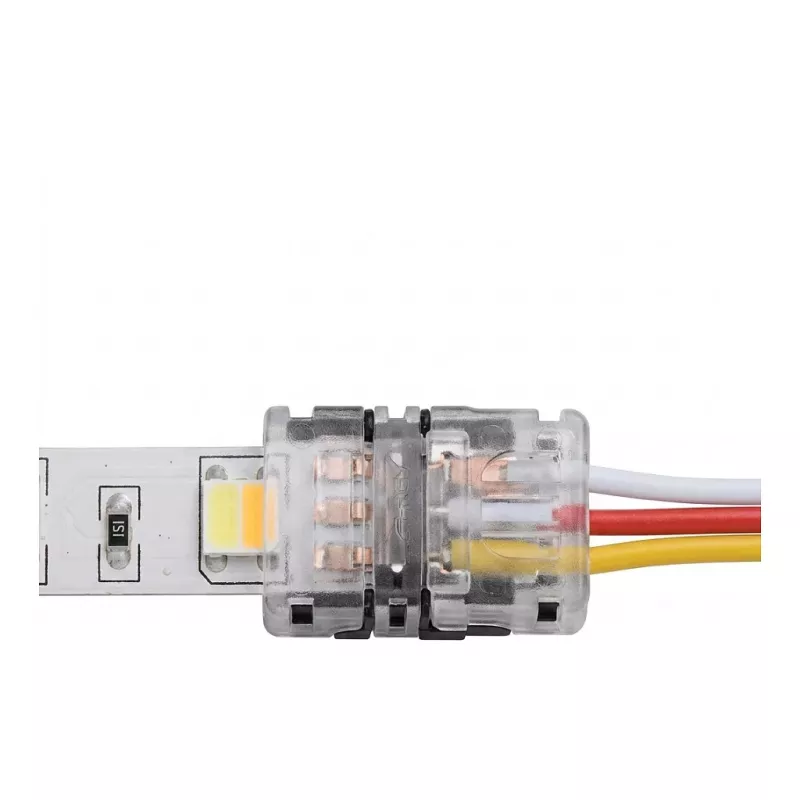

The Synergy 21 LED FLEX Strip Easy Connect Strip to Strip Joint is a solderless, clip-on connector designed for extending CCT (tunable white) LED strips with a width of 10mm. Part of the Synergy 21 Easy Connect System, this joint enables quick, tool-free connections for continuous LED strip runs, ensuring reliable electrical contact and IP65/IP54 protection against dust and water ingress.

Advantages

Tool-free installation saves time and eliminates soldering. The 3-pin design supports CCT LED strips for adjustable white light. IP65/IP54 rating makes it suitable for both indoor and protected outdoor applications. Transparent polycarbonate housing allows light to pass through unobtrusively.

Suitable for

• Connecting two 10mm CCT LED strips end-to-end
• Creating continuous runs of Synergy 21 Easy Connect LED strips
• DIY and professional LED strip installations
• Applications requiring dust and splash water protection (IP65/IP54)

Key specifications

• Product Type: LED Strip Connector
• Connector Type: Strip to Strip Joint
• Strip Width Compatibility: 10 mm
• LED Type Compatibility: CCT (Correlated Color Temperature) / Tunable White
• Number of Pins: 3-pin
• Ingress Protection (IP) Rating: IP65/IP54
• Connection Method: Solderless, Clip-on
• Installation: Tool-free
• Material: Polycarbonate (PC), Copper (contacts)
• Voltage Compatibility: 12V / 24V DC
• Max Current Rating: 5 A
• Operating Temperature: -20°C to +45°C
• Color: Transparent
• Certifications: CE, RoHS
• Compatibility System: Synergy 21 Easy Connect System
• Connector Orientation: Straight
• Quantity per Pack: 1 piece

Recommendations

For best results, use with Synergy 21 Easy Connect CCT LED strips and ensure the strip ends are cleanly cut before installation. This connector is ideal for extending runs in coves, under cabinets, or in linear lighting projects.
