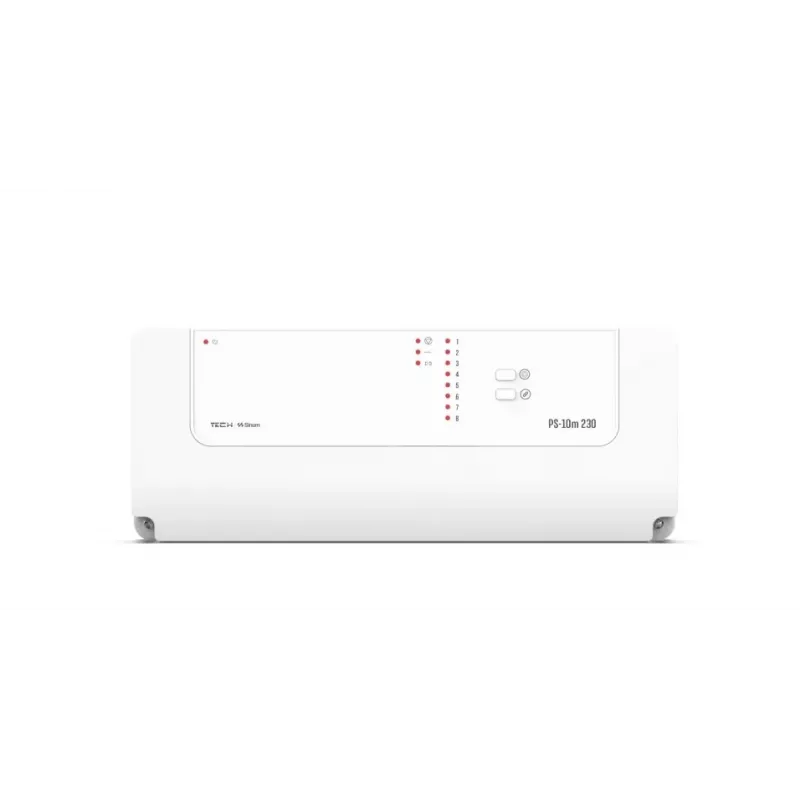

Tech Sterowniki PS-10M 230 Relé com fios para calha DIN

The Tech Sterowniki PS-10M 230 is a wired DIN rail relay designed as a dedicated controller for thermostatic valves in underfloor heating systems within the Sinum system. It combines simple and safe connection with the unlimited possibilities of the system. It features 8 voltage outputs for up to 50 thermostatic actuators, 1 dedicated voltage output for pump control, and 1 volt-free contact.

Key features

• 8 voltage relay outputs
• 1 voltage output dedicated to pump control
• 1 volt-free output NO-COM-NC dedicated to heating device control
• 2 two-state inputs
• Each output is programmable separately
• Wired communication via TECH SBUS protocol
• DIN rail TH35 mounting

Specifications

• Communication: wired TECH SBUS
• Height: 120 mm
• Width: 296 mm
• Depth: 56 mm
• Power supply: 230 V AC
• Power consumption: 4 W
• Operating temperature: 5° - 50 °C
• Number of relay outputs: 10
• Max. relay load: 0.3 A
