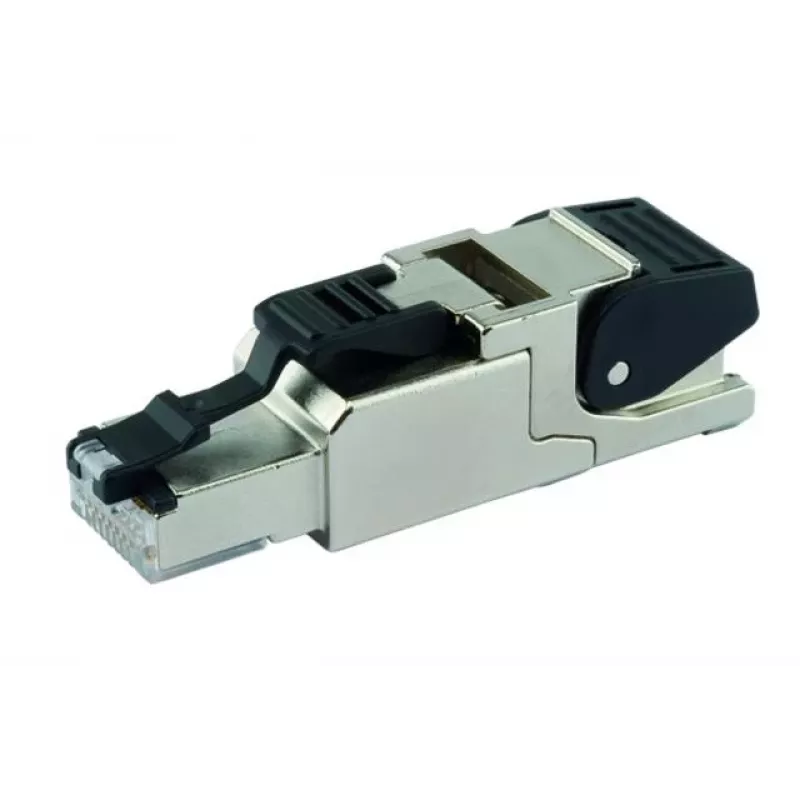

Telegärtner J00026A2113 Ficha RJ45 Cat.6A de montagem no campo, blindada, IP67, aço inoxidável, preto

Industrial Ethernet connections demand a plug that can survive vibration, moisture, and repeated re-termination. The Telegärtner J00026A2113 is a field-assembly RJ45 plug for Cat.6A / Class EA cabling, built around a stainless steel housing and tool-free IDC termination. It solves the problem of unreliable field terminations in harsh environments by providing a shielded, IP67-rated connection when mated with an appropriate jack.

Who is it for

Network installers and maintenance teams working in factories, warehouses, outdoor cabinets, or data centers where standard RJ45 plugs fail due to corrosion, strain, or difficult cable access. It suits solid and stranded conductors from AWG 22 to AWG 27, with cable diameters from 4.5 mm to 9.0 mm.

Main features

• Tool-free IDC termination – no special crimp tool required
• Shielded design for EMI/RFI protection
• Stainless steel housing with black boot
• IP67 protection when mated with an IP67 jack
• Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt)
• Up to 10 re-terminations

Specifications

• Connector type: RJ45 plug
• Category: Cat.6A (ISO/IEC 11801 Class EA)
• Shielding: Shielded (FTP/STP)
• Termination method: IDC
• Assembly type: Field-assembly, tool-free
• Housing material: Stainless steel
• IP rating: IP67 (when mated with appropriate IP67 jack)
• Cable diameter range: 4.5 - 9.0 mm
• Wire gauge (solid): AWG 24/1 - AWG 22/1
• Wire gauge (stranded): AWG 27/7 - AWG 22/7
• Transmission frequency: Up to 500 MHz
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Operating temperature: -40°C to +85°C
• Mating cycles: ≥ 750
• Contact plating: Gold (min. 1.27 µm)
• Number of positions/contacts: 8P8C
• Colour: Silver housing, black boot
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Application: Industrial Ethernet, data centers, harsh environments
• Reusability: Up to 10 re-terminations

Tips

For a complete IP67 link, pair this plug with a Telegärtner IP67 jack. The tool-free IDC mechanism allows fast on-site assembly, and the stainless steel housing withstands rough handling. Verify your cable diameter and conductor type before ordering to ensure a secure fit.
