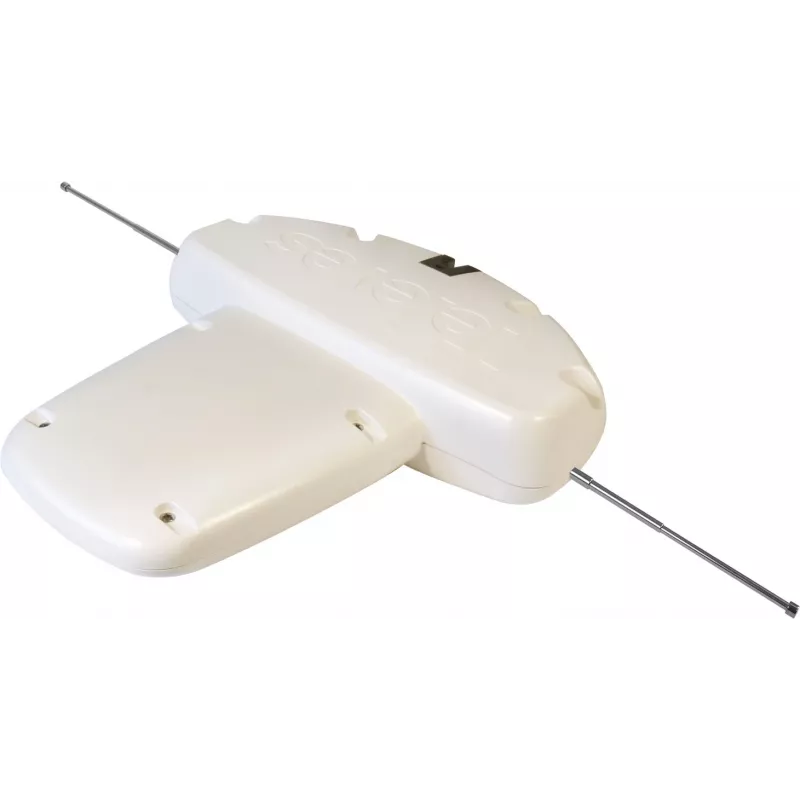

Televes DINOVA BOSS Antena de televisão 27 dB

The Televes DINOVA BOSS is a high-performance terrestrial TV antenna designed for reliable reception in urban and suburban environments. Featuring innovative BOSS (Balanced Output Signal System) technology, it delivers exceptional gain and low noise figure, ensuring clear digital TV signals even in challenging conditions. The antenna is 5G ready with integrated LTE filtering to prevent interference from mobile networks.

Advantages

BOSS technology provides two gain modes: BOSS ON for maximum amplification (27 dB UHF) and BOSS OFF for lower gain (10 dB UHF) when signals are strong. The antenna covers both UHF (470-694 MHz) and VHF (174-230 MHz) bands, making it compatible with DVB-T/T2 standards. Its compact, weather-resistant design (IP53) ensures durability outdoors.

Suitable for

• Digital terrestrial television reception (DVB-T/T2)
• Urban and suburban areas with moderate to weak signal strength
• Installations requiring multi-directional reception

Key specifications

• Maximum Gain (BOSS ON): UHF 27 dB, VHF 19 dB
• Gain (BOSS OFF): UHF 10 dB, VHF 7 dB
• Noise Figure: UHF 2.5 dB, VHF 3 dB
• LTE Filtering: Yes (5G Ready, filters above 694 MHz)
• Power Supply: 12-24 VDC via coaxial cable
• Power Consumption: 2.5 W
• Input Impedance: 75 Ohm
• Connector: F-type (female)
• Polarization: Horizontal or Vertical (selectable)
• Weather Protection: IP53
• Material: High-resistance ABS plastic, aluminum
• Mounting: Mast clamp included (up to 50mm diameter)
• Operating Temperature: -25 to +55 °C

Recommendations

For optimal performance, use with a compatible power inserter and ensure proper grounding. The antenna is designed for outdoor installation; avoid placing near large metal objects.
