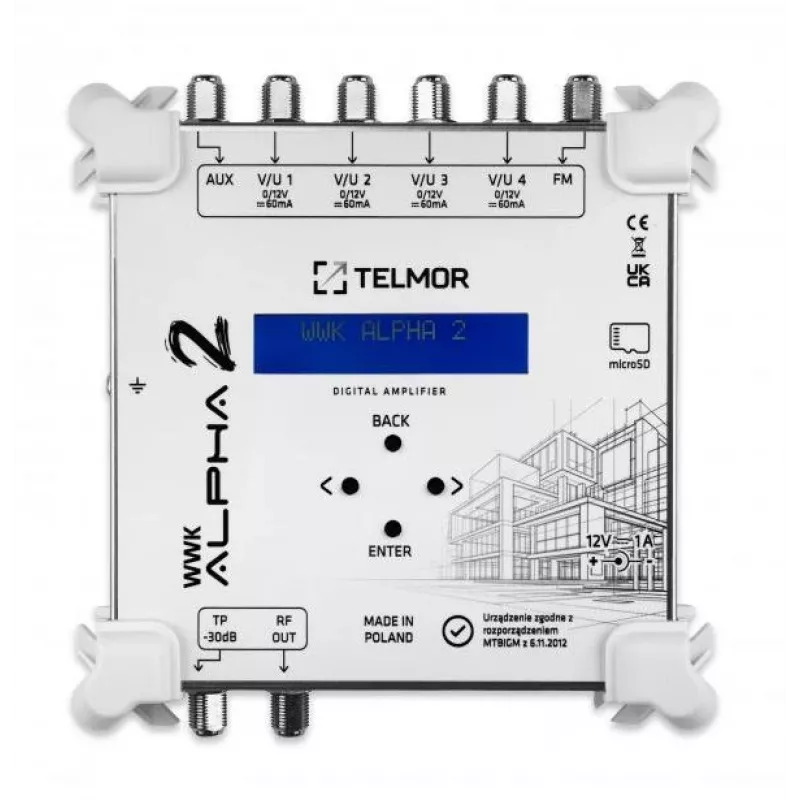

TELMOR WWK-ALPHA-2 Amplificador de canal digital

The TELMOR WWK-ALPHA-2 is a professional digital channel amplifier designed for terrestrial DVB-T/T2 and FM radio signals. It features 3 inputs (2x UHF, 1x VHF/FM) and 2 outputs (1x TV, 1x Test), with adjustable gain up to 40 dB on UHF and 30 dB on VHF/FM. Built-in LTE/5G filtering ensures interference-free reception. The amplifier supports up to 10 selective UHF channels and includes a USB programming interface for easy configuration. Housed in a compact indoor enclosure with built-in power supply.

Advantages

High gain with adjustable settings, LTE/5G filtering, and selective channel amplification for optimal signal quality.

Suitable for

• Home TV and radio installations
• Small to medium antenna systems
• DVB-T/T2 and FM signal distribution

Key specifications

• Product Type: Digital Channel Amplifier
• Application: Terrestrial DVB-T/T2, FM Radio
• Number of Inputs: 3 (2x UHF, 1x VHF/FM)
• Number of Outputs: 2 (1x TV, 1x Test)
• UHF Frequency Range: 470 - 694 MHz
• VHF/FM Frequency Range: 47 - 230 MHz
• Number of Selective UHF Channels: Up to 10
• UHF Gain: 40 dB (adjustable)
• VHF/FM Gain: 30 dB (adjustable)
• UHF Noise Figure: < 6 dB
• VHF/FM Noise Figure: < 8 dB
• Max UHF Output Level (10 channels): 110 dBµV
• Max VHF/FM Output Level: 105 dBµV
• LTE/5G Filtering: Yes (700 MHz band, C048-C069)
• Input Connectors: F-type
• Output Connectors: F-type
• Power Supply: 230V AC, 50/60 Hz (built-in)
• Power Consumption: Approx. 10 W
• Programming Interface: USB (PC) / Dedicated Programmer
• Housing: Indoor

Recommendations

For best performance, use high-quality F-type connectors and ensure proper grounding. The amplifier is ideal for installations requiring selective channel amplification with LTE/5G protection.
