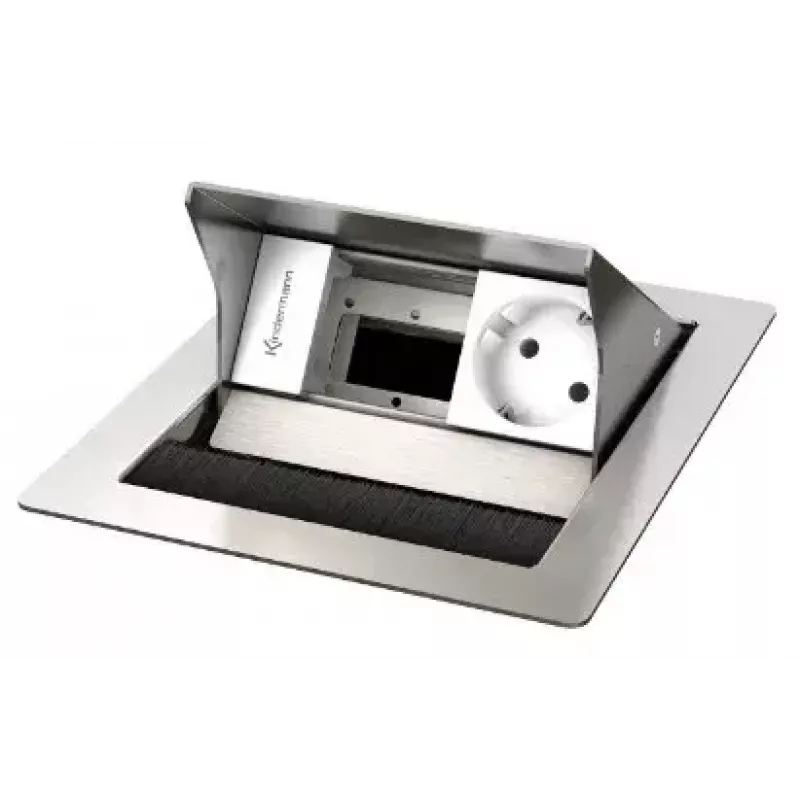

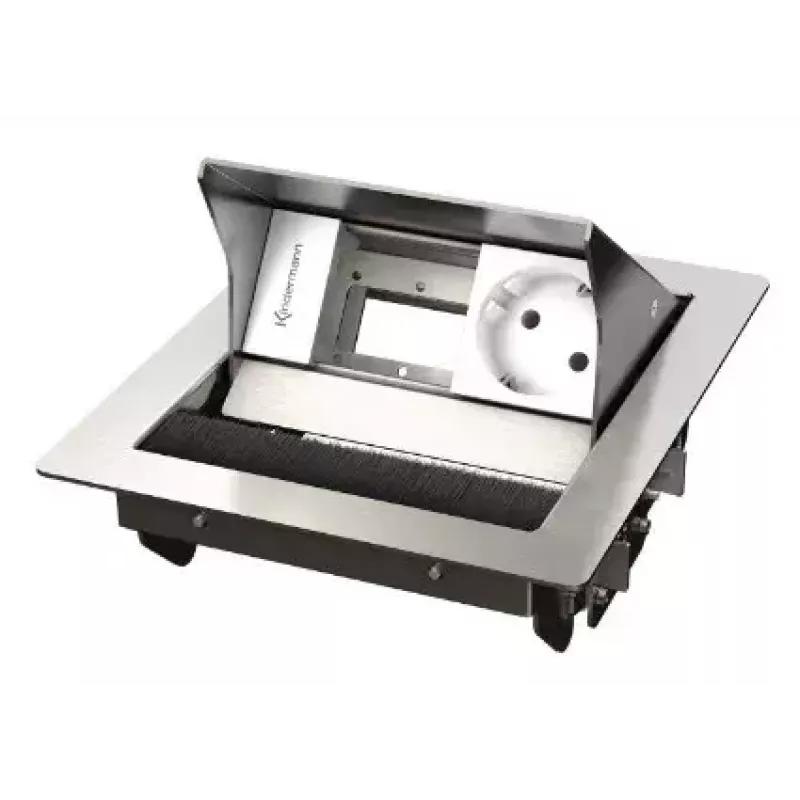

Tomada de mesa tipo F Kindermann 7492000041 aço inoxidável branco

Desktop casing for 2 insets in brushed stainless steel, pre-mounted with one mains socket and one empty module. The Kindermann 7492000041 outlet box (Type F) combines a compact footprint (160 mm width x 190 mm depth) with a white stainless-steel finish and is intended for integration into desks up to 40 mm thick. The unit supports level-mounted desktop integration and allows individual configuration using Konnect flex 45 adapter plates.

Advantages

Quick mounting is enabled by a click mechanism, while level-mounted interfaces provide a homogeneous appearance. The design is compatible with media control modules, USB chargers and similar inserts. Mounting from above simplifies installation, and the compact installation depth of 65 mm suits most desk constructions. The mains connection uses a 3-pin GST 18 plug.

Suitable for

Key specifications

How to use

Cut an opening in the desktop compatible with the product dimensions and desk thickness (max. 40 mm). Insert the outlet box from above and secure it using the built-in click mechanism. Configure the empty module with Konnect flex 45 adapter plates and install media control or USB charger modules as required. Connect the mains supply using the provided 3-pin GST 18 plug following applicable electrical safety regulations.

Recommendations

Ensure the desk cut-out matches the product dimensions and that the desk material supports the 65 mm installation depth. For safe electrical connection and compliance with local codes, have the mains connection performed or inspected by a qualified electrician.
