Tomada HDMI Kindermann 7444000562

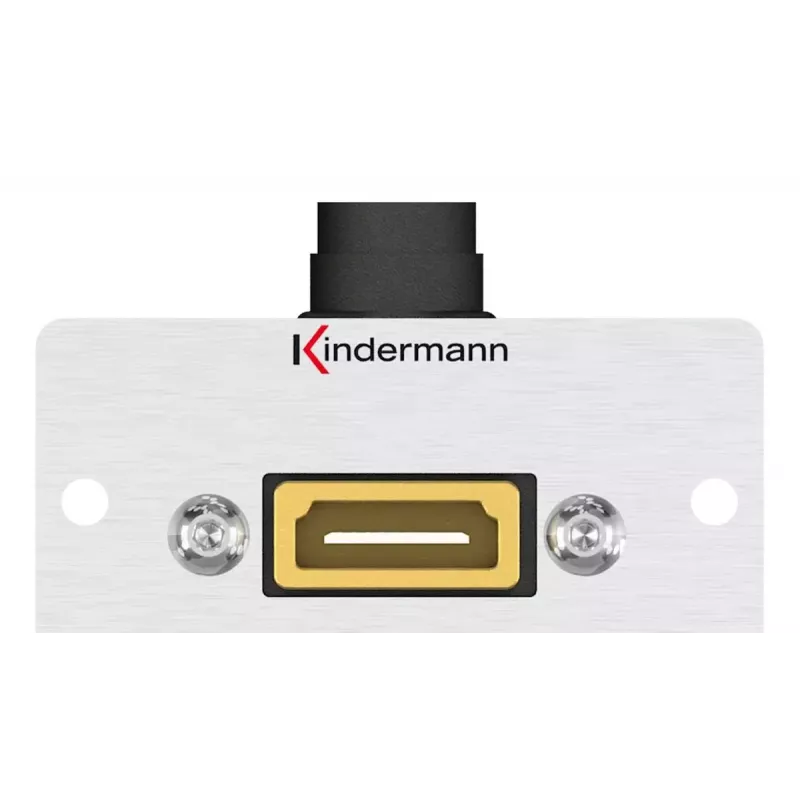

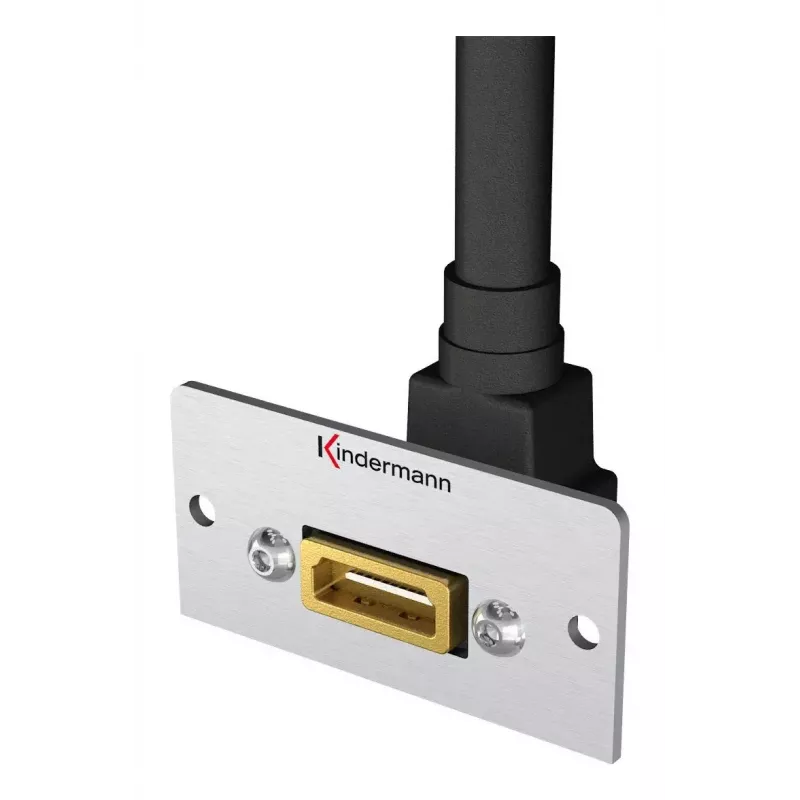

The Kindermann 7444000562 HDMI socket outlet is a half-size aluminium plate designed to house one HDMI module. It combines a slim 50 mm width with a minimum installation depth of 30 mm, offering a durable anodized aluminium finish and a 90° HDMI adapter option that supports a female 19‑pin to male 19‑pin connection for cable and plug setups.

Advantages

The anodized aluminium construction provides a robust, corrosion‑resistant surface suitable for frequent use. Its compact dimensions save wall or panel space while allowing a secure 90° HDMI connection that eases cable routing in tight installations. The plate is compatible with standard half-size mounting systems and is designed for reliable long‑term performance.

Suitable for

Key specifications

How to use

Mount the half‑size plate in a compatible wall box or mounting frame and secure it according to the mounting system instructions. Insert the HDMI module into the plate and connect the 19‑pin male or female HDMI plug as required. The 90° orientation helps route the HDMI cable parallel to the wall or panel to reduce bending stress. Verify the connection and test signal transmission after installation.

Recommendations

Ensure the installation depth is at least 30 mm and use compatible HDMI cables rated for your video resolution. Tighten mounting hardware evenly to avoid plate deformation and route cables to prevent sharp bends at the 90° adapter.
