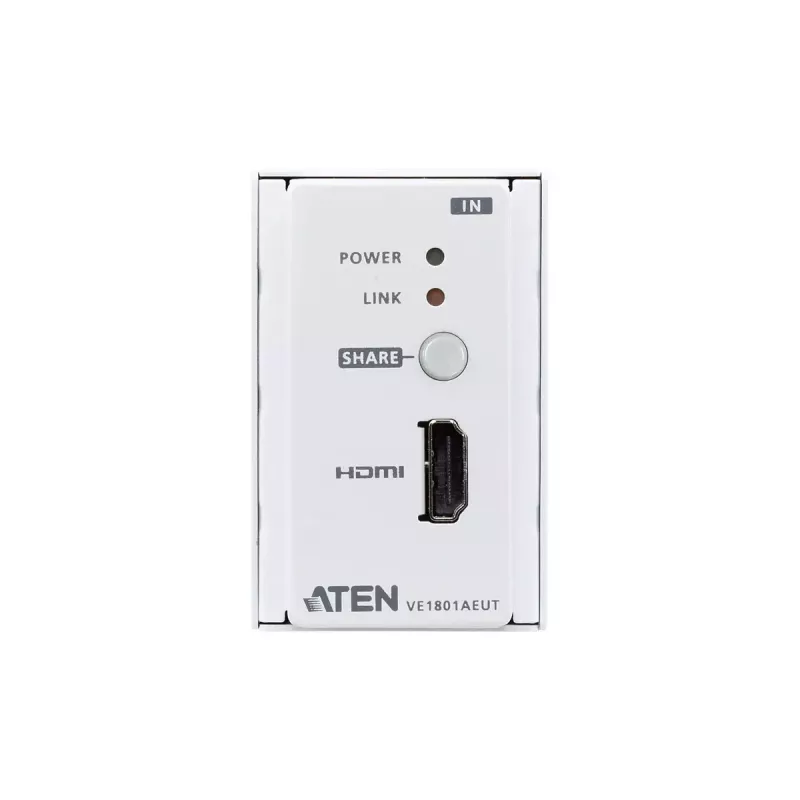

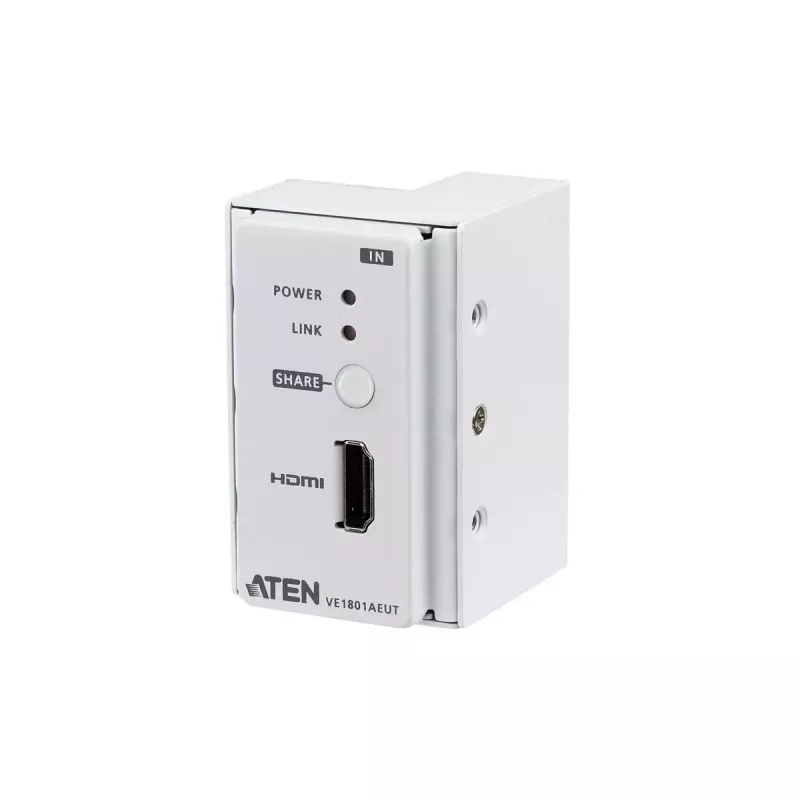

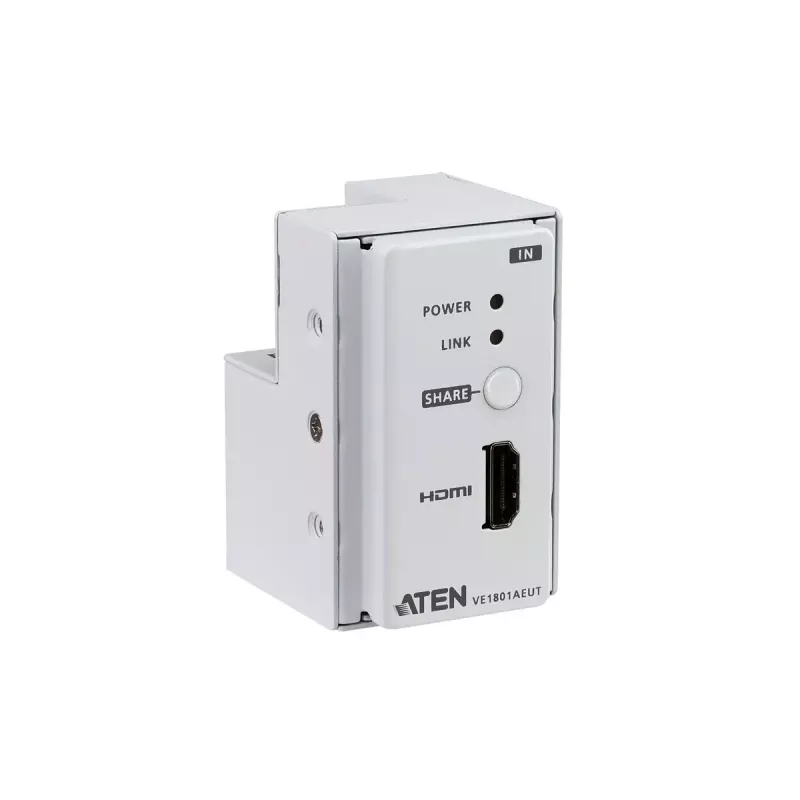

Transmissor AV ATEN VE1801AEUT-AT-G HDMI HDBaseT-Lite 4096x2160

The ATEN VE1801AEUT-AT-G is an HDMI HDBaseT-Lite AV transmitter that extends 4K (4096 x 2160) signals up to 40 m over a single Cat5e/6/6a or ATEN 2L-2910 Cat6 cable. Designed for compact installations, it supports 3D, Deep Color and embedded HD lossless audio formats, and includes RS-232 serial control for integration into AV systems.

Advantages

The transmitter stabilizes HDMI signal transmission with HDBaseT Anti-jamming technology to resist interference during high-quality video delivery. Its built-in PoH (Power over HDBaseT) allows the unit to receive power from a compatible PoH PSE receiver, reducing the need for local power adapters. The device fits a 1-gang EU junction box for a neat wall- or table-mounted installation and supports remote source switching when paired with compatible receivers (for example VP1421).

Suitable for

• Conference and meeting rooms requiring reliable 4K AV extension
• Digital classrooms and lecture halls
• Fixed AV installations in offices, hotels or public spaces
• Integration into centralized AV control systems using RS-232

Key specifications

• Model: VE1801AEUT-AT-G
• Brand: ATEN
• Maximum resolution: 4096 x 2160 (4K)
• Extension distance: up to 40 m over Cat5e/6/6a or ATEN 2L-2910 Cat6
• HDBaseT-Lite with HDBaseT Anti-jamming technology
• Audio: embedded HD lossless audio formats supported
• Features: 3D and Deep Color support, RS-232 serial interface
• Power: PoH (receives power from PoH PSE supported receiver)

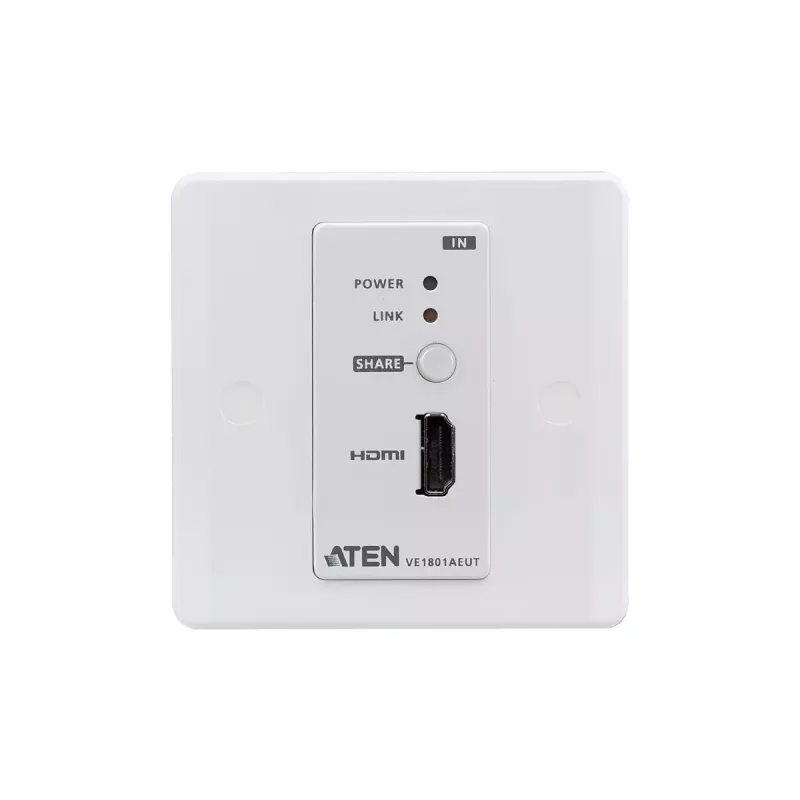

• Mounting: fits 1-gang EU junction box / wall plate
• EAN: 4710469340567

How to use

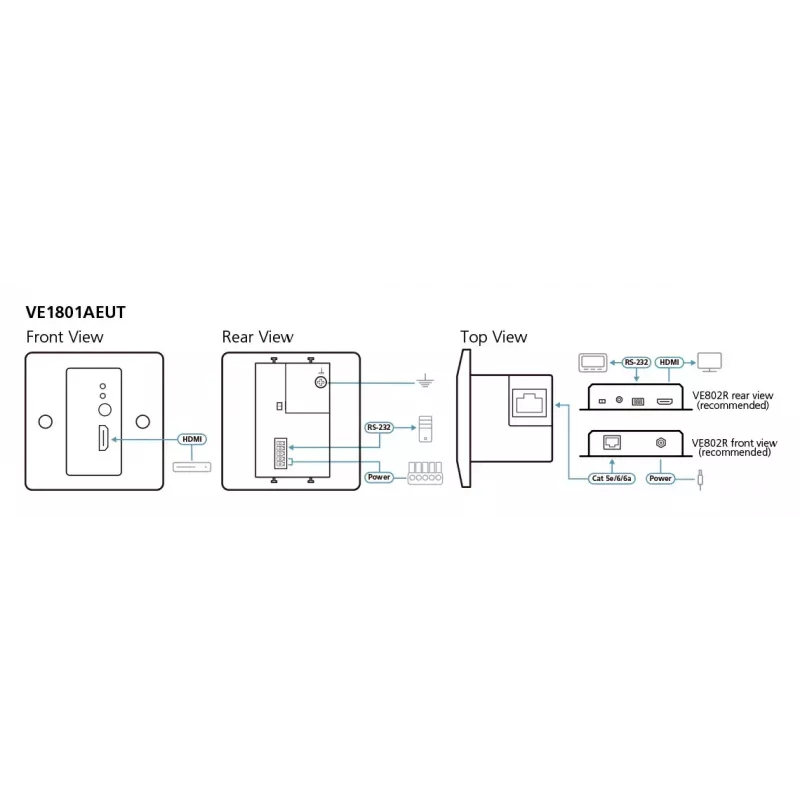

Install the VE1801AEUT-AT-G into a 1-gang EU junction box or place it on a table depending on the installation. Connect the HDMI source to the transmitter's HDMI input and run a single Cat5e/6/6a (or ATEN 2L-2910 Cat6) cable to the compatible HDBaseT receiver. If the receiver supports PoH PSE, the transmitter will receive power through the HDBaseT link and no local power adapter is required. Use RS-232 for integration with AV control systems and, when paired with a compatible receiver that supports source switching, control remote switching of the AV source.

Recommendations

For best performance, use shielded Cat6 or ATEN 2L-2910 Cat6 cable for longer runs, ensure proper grounding and avoid running the HDBaseT cable alongside high-voltage power lines. Verify receiver compatibility for PoH and remote source switching functions before deployment.
