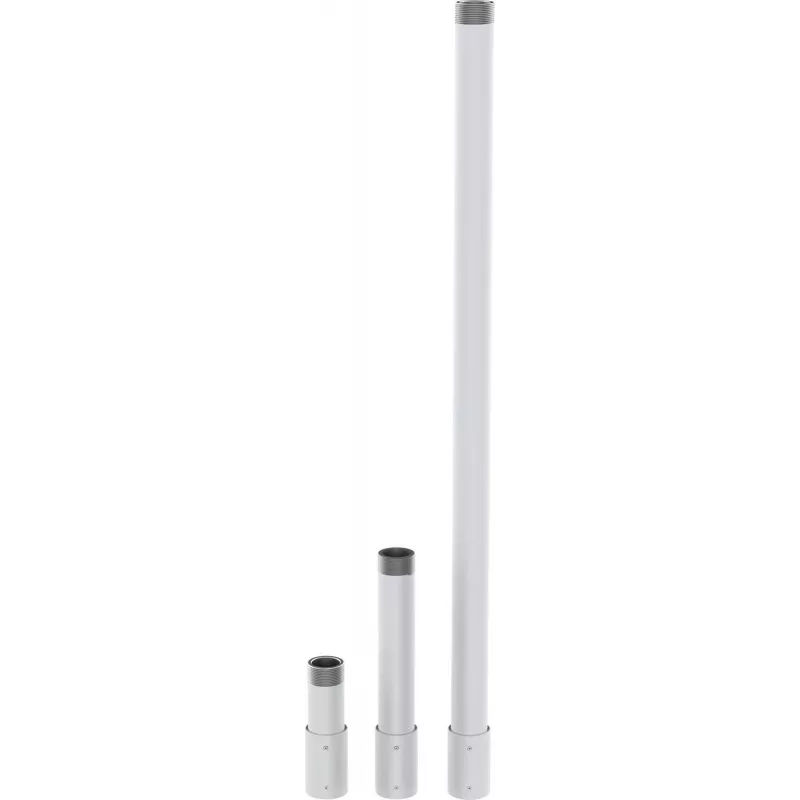

Tubo de extensão AXIS TP3908-E 15 cm branco (03268-001)

When a security camera needs to be positioned further from a wall or ceiling to achieve the right field of view, the AXIS TP3908-E Extension Pipe provides a clean, professional solution. This 15 cm white aluminum pipe is used by installers and system integrators in retail stores, offices, and outdoor perimeters to extend pendant-mounted cameras away from mounting surfaces, improving coverage and reducing blind spots.

Key specifications

• Product type: Extension pipe
• Material: Powder-coated aluminum
• Colour: White
• Length: 15 cm (150 mm)
• Diameter: 30 mm
• Mounting interface: Threaded connection (Axis proprietary)
• Application environment: Indoor/outdoor
• Corrosion resistance: Yes
• Operating temperature: -40°C to 65°C (-40°F to 149°F)
• Storage temperature: -40°C to 65°C (-40°F to 149°F)
• Humidity range: 10-100% RH (condensing)
• Certifications: CE, FCC, RCM, VCCI
• Included hardware: Safety wire, screws
• Installation: Easy, modular design

Why choose it

The TP3908-E is built from durable, powder-coated aluminum that resists corrosion and withstands harsh weather conditions, making it suitable for both indoor and outdoor installations. Its threaded connection ensures a secure, vibration-resistant fit with Axis pendant kits and mounting accessories, while the included safety wire and screws simplify installation. The modular design allows for quick adjustments and future reconfiguration, saving time and effort on site.

Ideal use cases

• Extending pendant-mounted cameras from high ceilings in warehouses or retail spaces to capture a wider area.
• Positioning cameras below overhangs or eaves for better facial recognition at entrances.
• Creating a standoff distance from walls to avoid IR reflection or obstructions.
• Outdoor perimeter monitoring where cameras need to be lowered from a high mounting point.

Good to know

The pipe is compatible with Axis pendant kits and mounting accessories, ensuring a seamless integration into existing Axis surveillance systems. It comes with all necessary hardware for a straightforward installation, and its white finish blends discreetly with most ceilings and walls. For optimal performance, pair it with Axis cameras that support pendant mounting.
