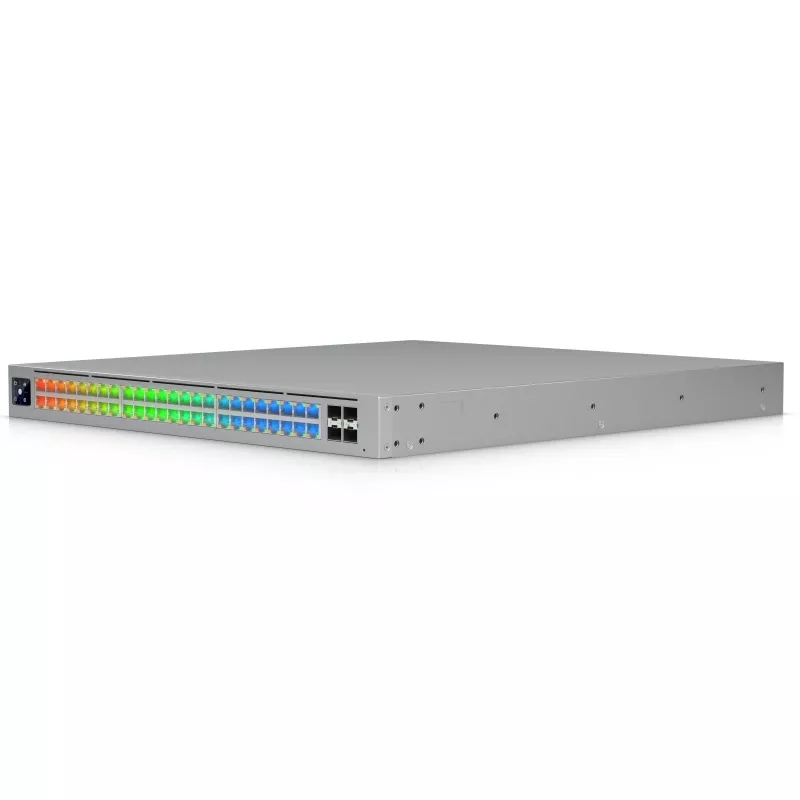

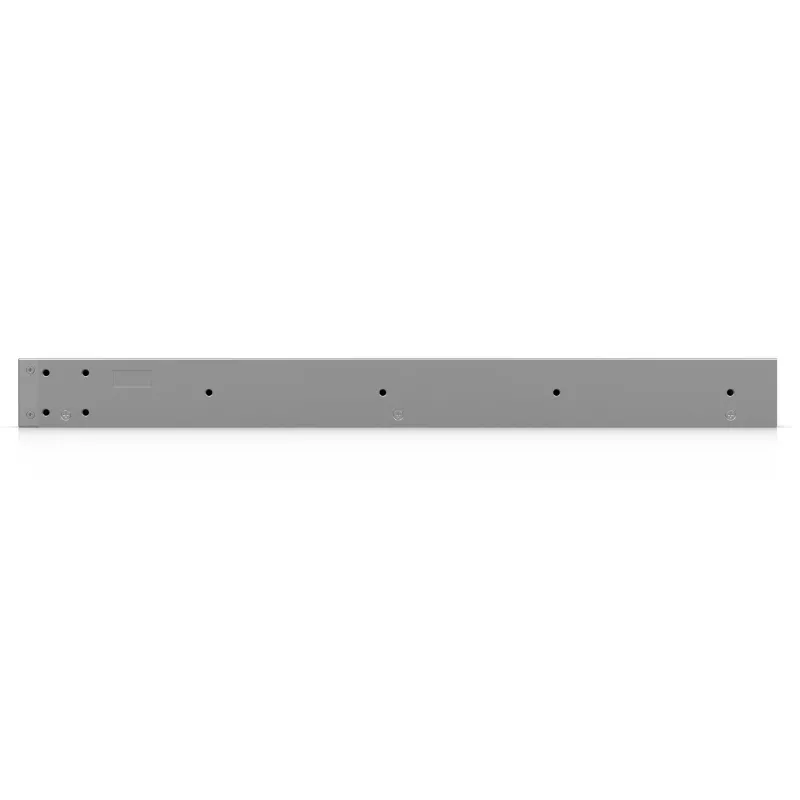

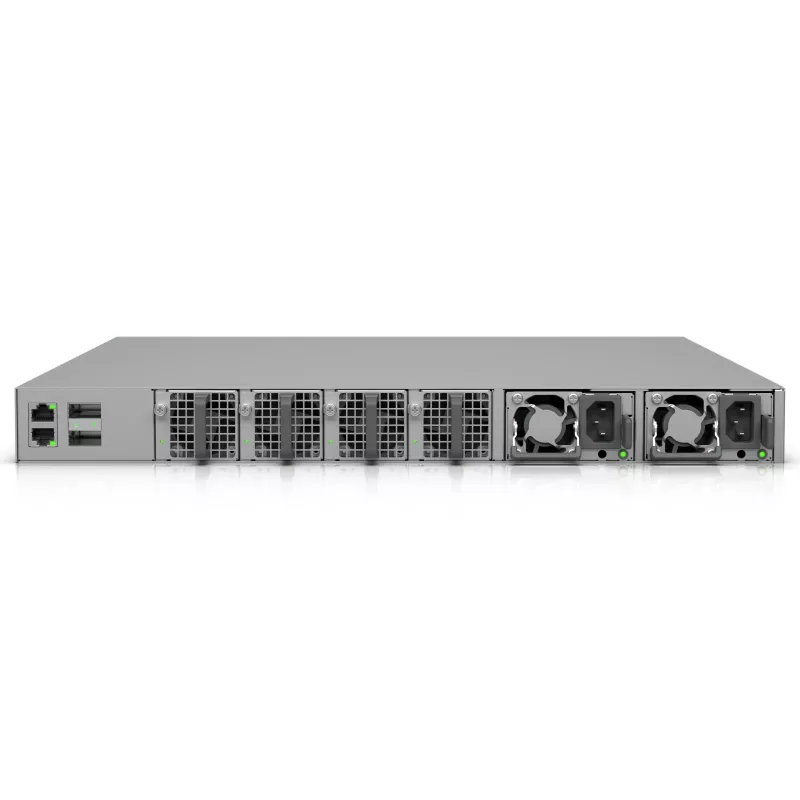

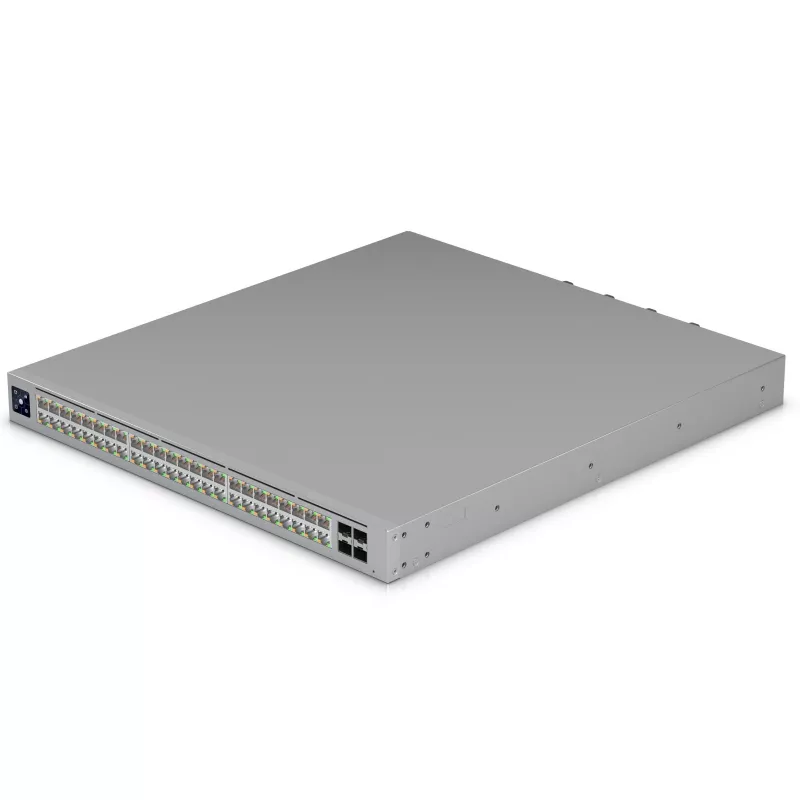

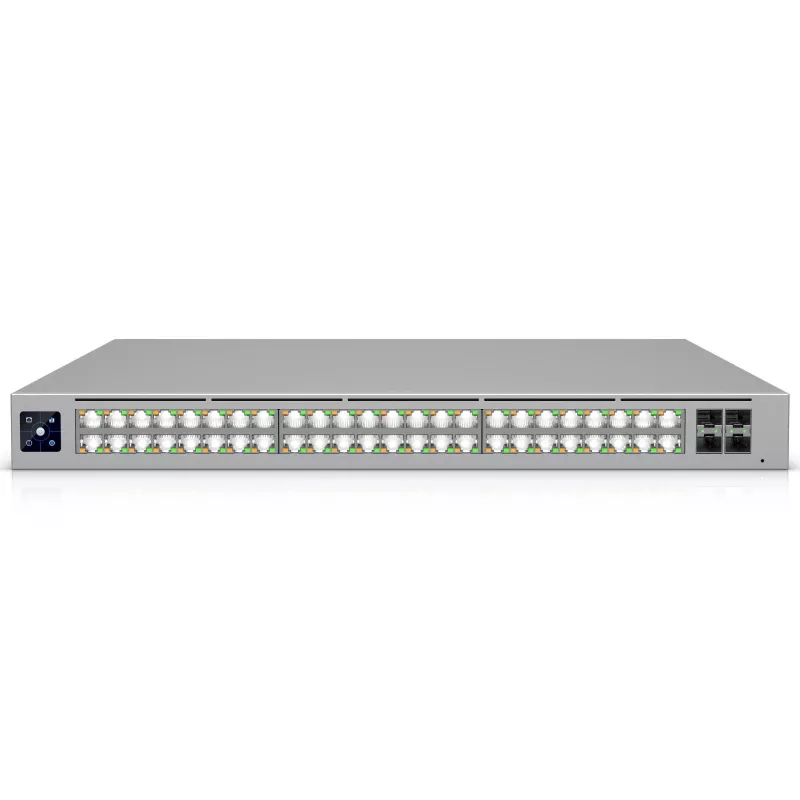

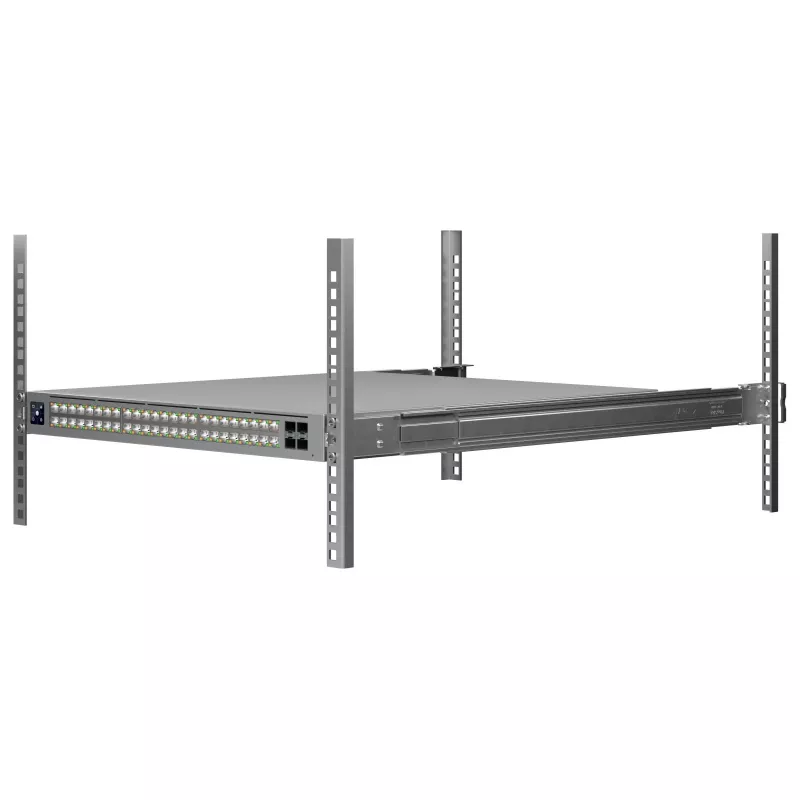

Ubiquiti ECS-48S-PoE (2150W) Switch PoE+++ Layer 3 Etherlighting 48 Portas Enterprise-Grade

The Ubiquiti ECS-48S-PoE (2150W) is an enterprise-grade, fully managed Layer 3 switch designed for high-performance networks. With 48 Gigabit Ethernet ports, all supporting PoE+++ (IEEE 802.3bt), and a massive 2150W total PoE budget, it powers demanding devices like PTZ cameras, high-power access points, and IoT gateways. Four 10G SFP+ uplinks provide high-speed connectivity to core infrastructure. The switch features Etherlighting technology for intuitive port status visualization and a 1.3" touchscreen for local management. Powered by a dual-core ARM Cortex-A57 processor and 4GB DDR4 RAM, it delivers 176 Gbps switching capacity and 88 Mpps forwarding rate. Ideal for enterprise networks, campuses, and high-density PoE deployments.

Advantages

High PoE budget of 2150W powers all 48 ports with PoE+++ (up to 60W per port). Etherlighting provides real-time port status via RGB LEDs. Layer 3 features include static routing, DHCP server, and VLANs. Redundant DC input supports USP-RPS for power redundancy. Compact 1U rackmount form factor saves space.

Suitable for

• Enterprise networks requiring high-density PoE+++
• Surveillance systems with PTZ cameras
• High-performance Wi-Fi 6/6E deployments
• Edge switching with Layer 3 routing

Key specifications

• 48x 10/100/1000 Mbps RJ45 PoE+++ ports
• 4x 10G SFP+ uplink ports
• Total PoE budget: 2150 W
• Switching capacity: 176 Gbps
• Forwarding rate: 88 Mpps
• 1.3" touchscreen display
• Etherlighting technology
• ARM Cortex-A57 dual-core 1.2 GHz CPU
• 4 GB DDR4 RAM
• Internal AC/DC power supply, 2400W
• Redundant DC input (USP-RPS)
• Jumbo frame support up to 9000 bytes
• Operating temperature: -5 to 40°C

Recommendations

For optimal performance, pair with Ubiquiti UniFi Network Application for centralized management. Use with USP-RPS for power redundancy. Suitable for high-density environments requiring reliable PoE+++.
