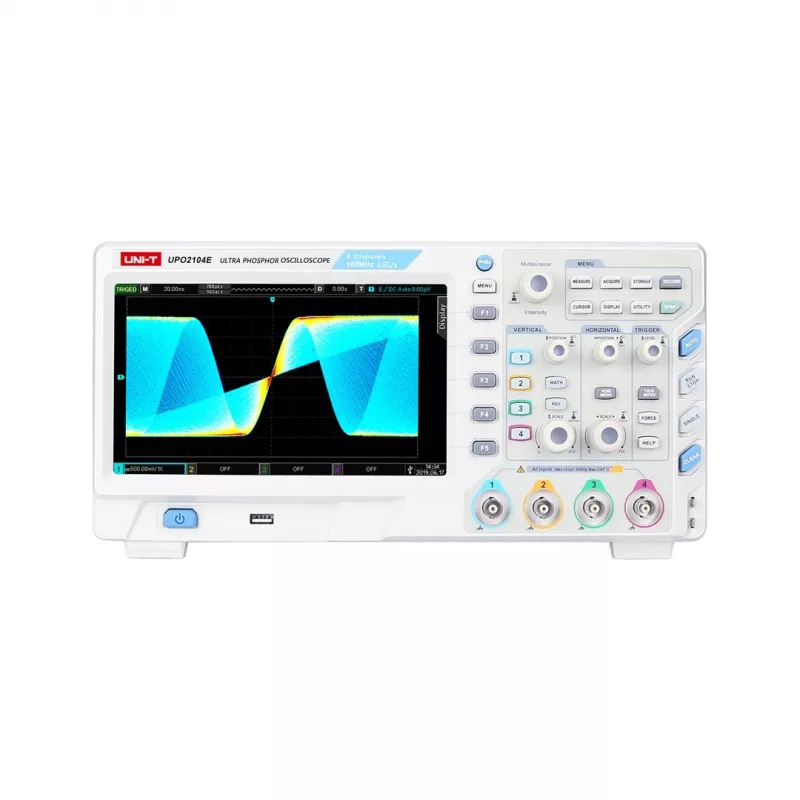

UNI-T UPO2104E osciloscópio digital 100 MHz 4 canais

The UNI-T UPO2104E is a high-performance 4-channel digital oscilloscope with 100 MHz bandwidth and 1 GS/s real-time sample rate, designed for professional engineers and technicians. It features a large 8-inch TFT LCD display with 800x600 resolution, deep memory of 56 Mpts, and a waveform capture rate of 80,000 wfms/s for detailed signal analysis.

Advantages

With 4 analog channels, advanced triggering, and serial decoding (IIC, SPI, RS232/UART, CAN, LIN), the UPO2104E simplifies complex measurements. Its 34 automatic measurements and extensive math functions (including FFT, integral, differential) enhance productivity.

Suitable for

• Electronics repair and troubleshooting
• Embedded system development
• Education and training labs
• Research and development

Key specifications

• Bandwidth: 100 MHz
• Analog Channels: 4
• Real-time Sample Rate: 1 GS/s
• Memory Depth: 56 Mpts
• Waveform Capture Rate: 80,000 wfms/s
• Display: 8-inch TFT LCD, 800x600 pixels
• Vertical Sensitivity: 1 mV/div - 20 V/div
• Horizontal Scale: 2 ns/div - 1000 s/div
• ADC Resolution: 8-bit
• Input Impedance: 1 MΩ ± 2% || 18 pF ± 3 pF
• Rise Time: < 3.5 ns
• Connectivity: USB Host, USB Device, LAN, AUX Out

Recommendations

For comprehensive signal analysis and debugging, pair the UPO2104E with high-quality probes and consider the optional battery pack for portable use.
