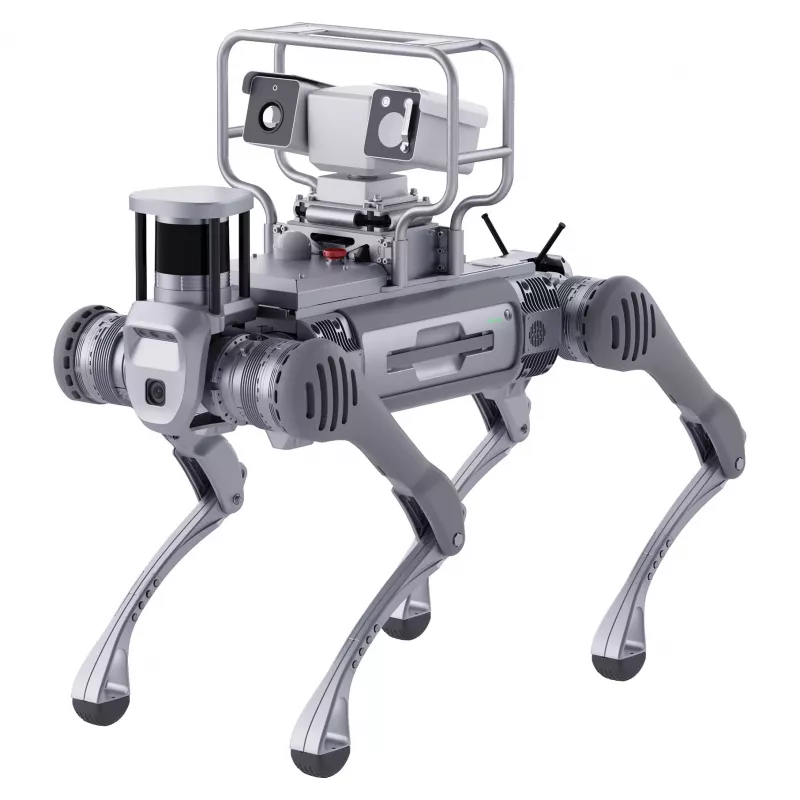

Unitree B2 Standard Robô quadrúpede industrial

The Unitree B2 Standard is a high-performance industrial quadruped robot designed for demanding applications in inspection, surveillance, and logistics. Built with high-strength aluminum alloy and carbon fiber, it offers exceptional durability and mobility in challenging environments.

Advantages

With a maximum payload capacity of 120 kg and a top speed of 6 m/s, the B2 Standard excels in heavy-duty tasks. Its IP67 rating ensures dustproof and waterproof operation, while the 2880 Wh lithium-ion battery provides 4-6 hours of runtime. Fast charging in approximately 2 hours minimizes downtime.

Suitable for

• Industrial inspection and monitoring
• Search and rescue operations
• Security patrol and surveillance
• Logistics and material handling
• Research and development in robotics

Key specifications

• Degrees of Freedom: 12 (3 per leg)
• Max Payload: 120 kg
• Max Speed: 6 m/s (21.6 km/h)
• Battery: 2880 Wh (72V, 40Ah) Lithium-ion
• Operating Time: 4-6 hours
• Charging Time: Approx. 2 hours
• IP Rating: IP67
• Max Climbing Slope: 30 degrees
• Max Step Height: 20 cm
• Processor: High-performance industrial-grade CPU/GPU
• Sensors: 3D LiDAR, Depth Camera, Wide-angle Camera, IMU, Force/Torque Sensors
• Connectivity: Gigabit Ethernet, Wi-Fi 6, Bluetooth
• Operating System: Real-time Linux-based (Ubuntu with ROS)
• Operating Temperature: -20°C to 50°C
• Material: High-strength Aluminum Alloy, Carbon Fiber
• Navigation: SLAM, Autonomous Navigation

Recommendations

The Unitree B2 Standard is ideal for professionals seeking a robust and versatile robotic platform. Its advanced sensor suite and high payload capacity make it suitable for a wide range of industrial applications. Ensure proper training and safety measures when operating in complex environments.
