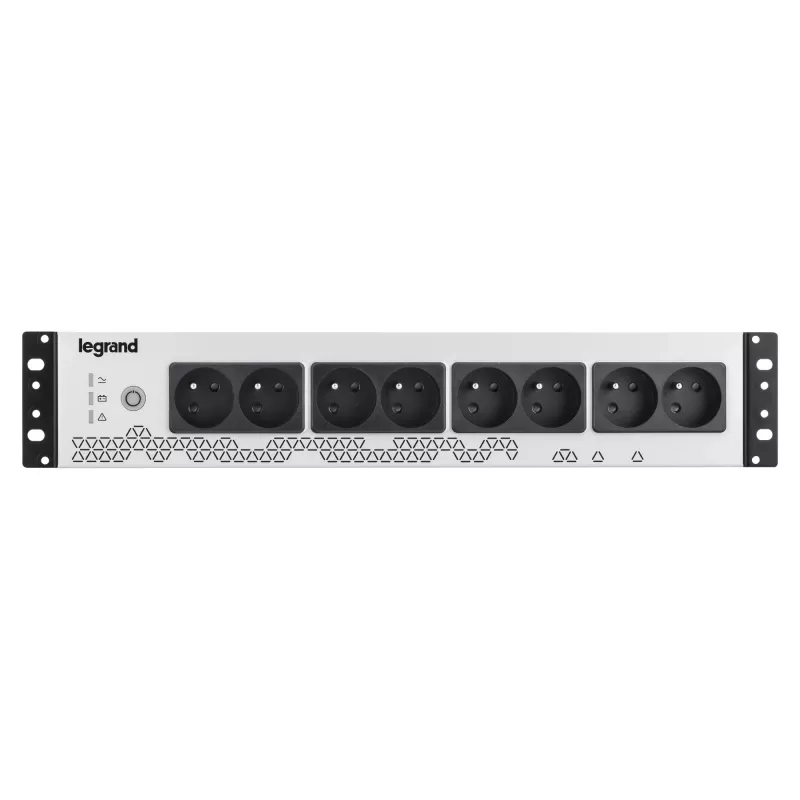

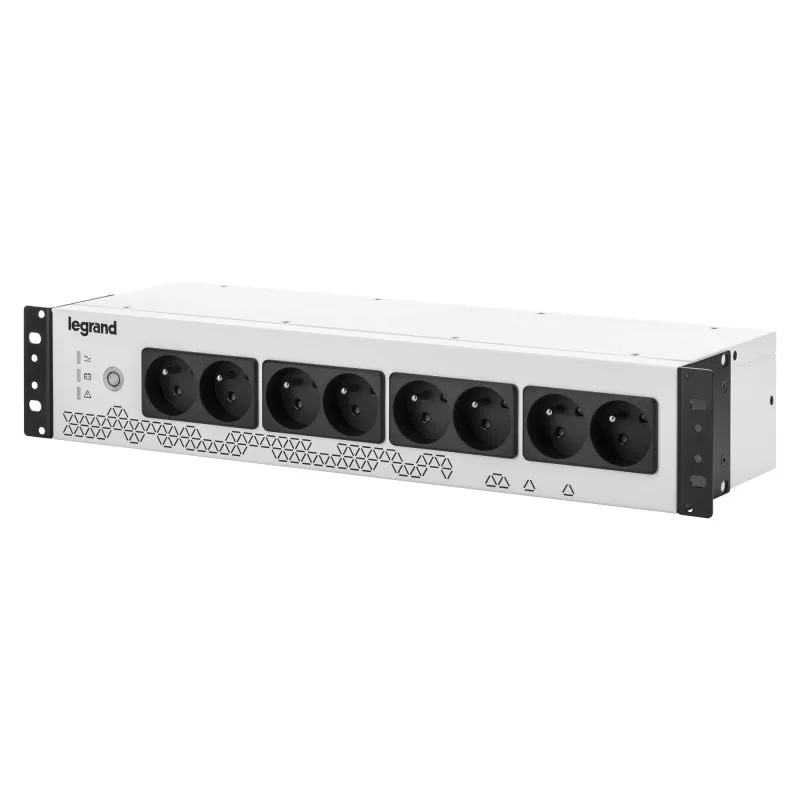

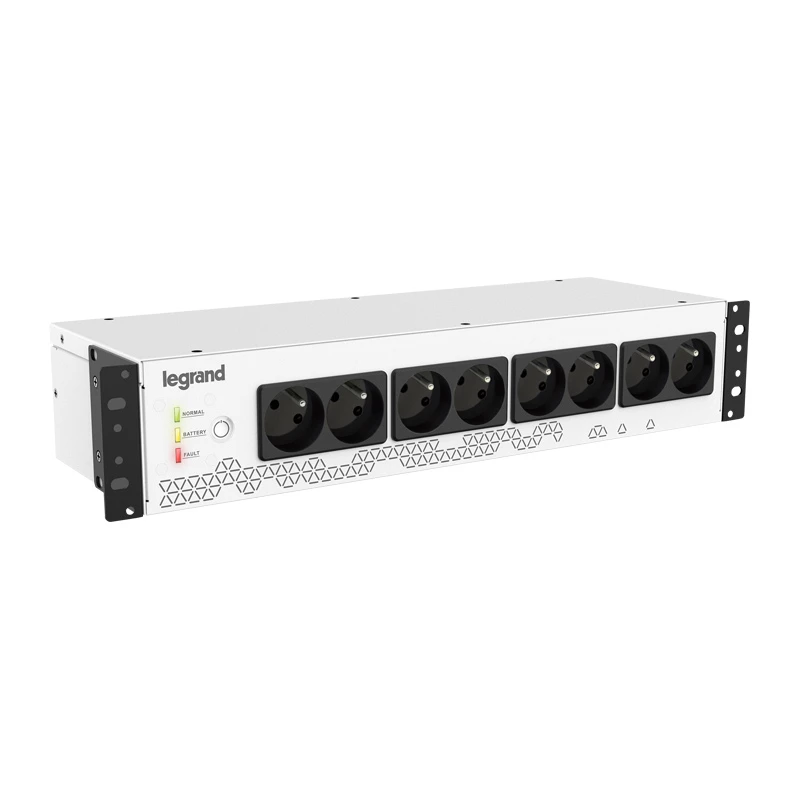

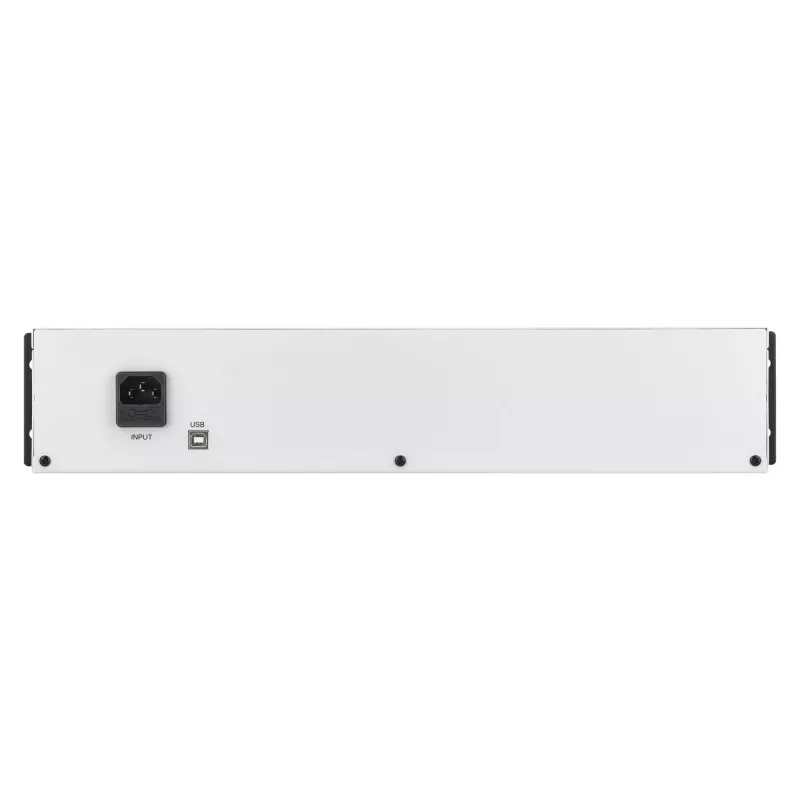

UPS Legrand Keor PDU 800VA FR INPUT 8 FR OUTPUT fonte de alimentação ininterrupta (UPS) Standby (Offline) 0,8 kVA 480 W 8 saídas AC

Keor PDU is a compact uninterruptible power supply designed for installation in 19-inch panels and server racks. The Legrand Keor PDU 800VA provides standby power protection with a 0.8 kVA (480 W) capacity, built-in 9 Ah sealed lead acid battery and a 2U rackmount form factor. It offers eight C13 AC outlets in a slim PDU-style unit and meets CE and EN 62040 standards for basic device protection.

Advantages

The unit’s ultra-compact 2U design allows installation in standard 19-inch racks while occupying minimal space. With eight FR/C13 outputs, it supplies power to multiple devices and delivers a typical backup time of around 10 minutes at half load (up to approximately 15 minutes depending on load), enabling safe shutdown or short-term operation during power interruptions. Available in black or white and certified to relevant standards, it combines straightforward rack compatibility with basic UPS protection.

Suitable for

• Small server cabinets and network racks
• Network switches, routers and patch panels
• Telecom equipment and low-power servers
• Workstations and point-of-sale systems requiring short-term backup

Key specifications

• Capacity: 0.8 kVA (800 VA) / 480 W
• Battery: 9 Ah sealed lead acid
• AC outlets: 8 × C13 (FR style)
• Form factor: 2U, 19-inch rackmount
• Maximum current: 10 A
• Typical backup time: ~10 minutes at 50% load (up to ~15 minutes depending on load)
• Standards: CE, EN 62040
• Colours: White, Black
• Weight: 5.5 kg

How to use

Install the Keor PDU in a standard 19-inch rack using the included 2U mounting brackets. Connect the UPS input to a grounded AC supply that meets the unit’s current rating, then plug your devices into the eight C13 outlets. Monitor the load to ensure it does not exceed the 480 W rating. During mains failure the UPS will switch to battery power automatically, giving sufficient runtime to save work and perform an orderly shutdown or maintain short-term operation.

Recommendations

Place the UPS in a ventilated rack location, avoid stacking heat-generating equipment directly above the unit, and perform periodic battery tests and replacements according to manufacturer guidance to ensure reliable backup operation.
