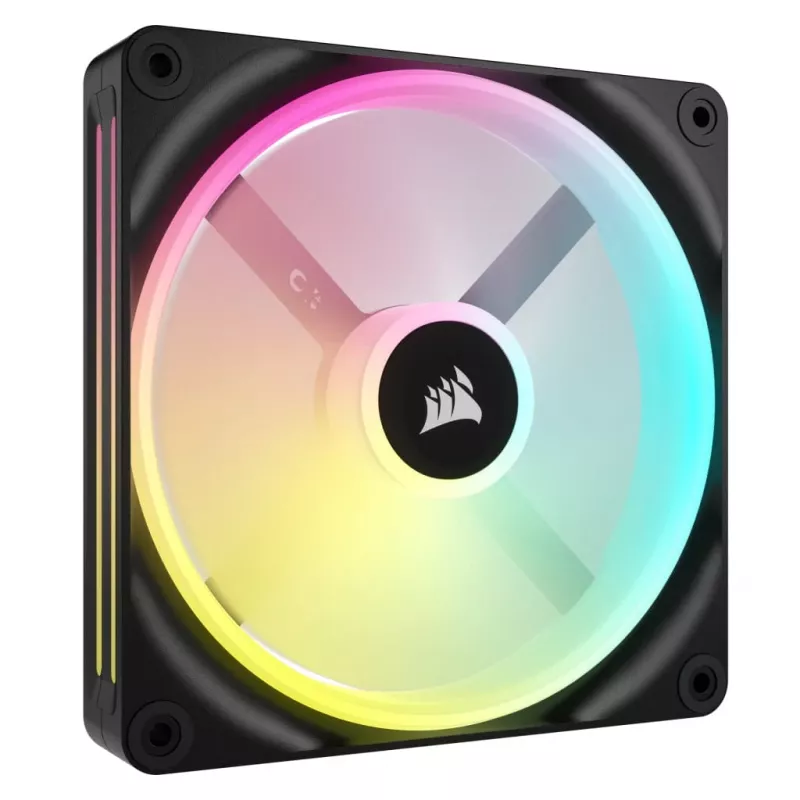

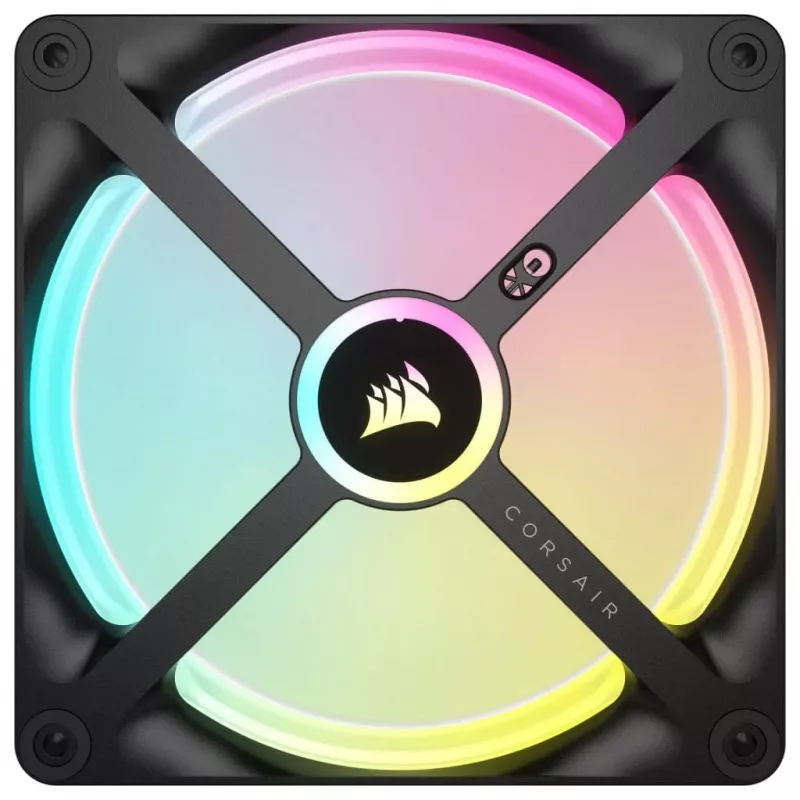

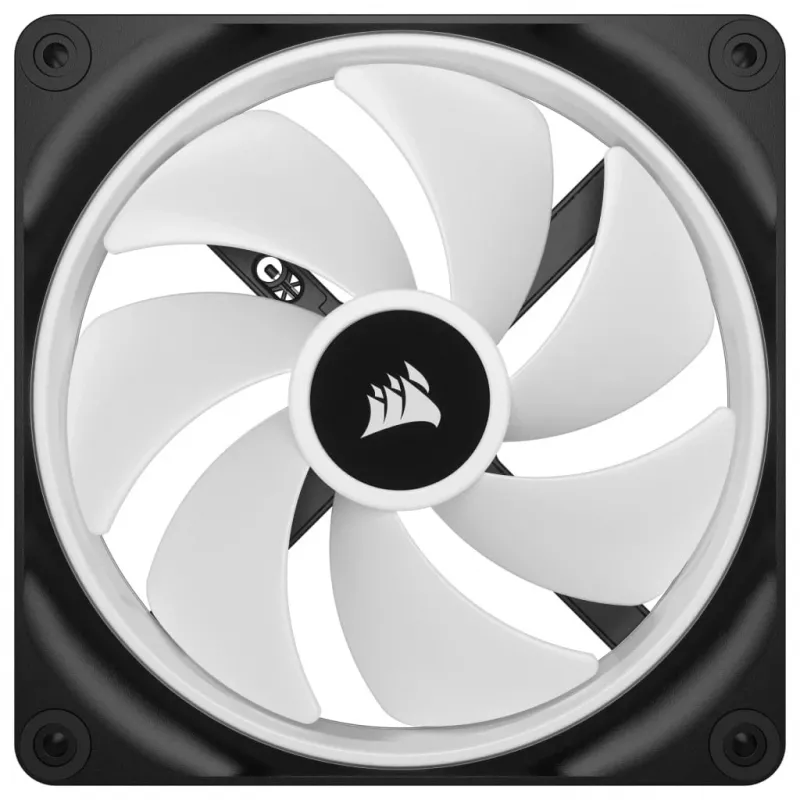

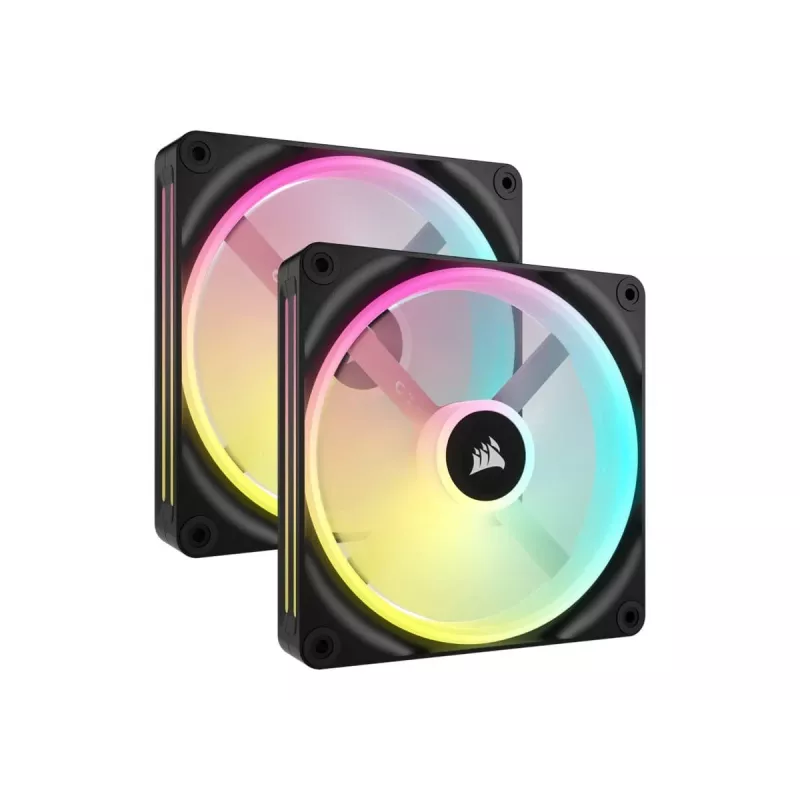

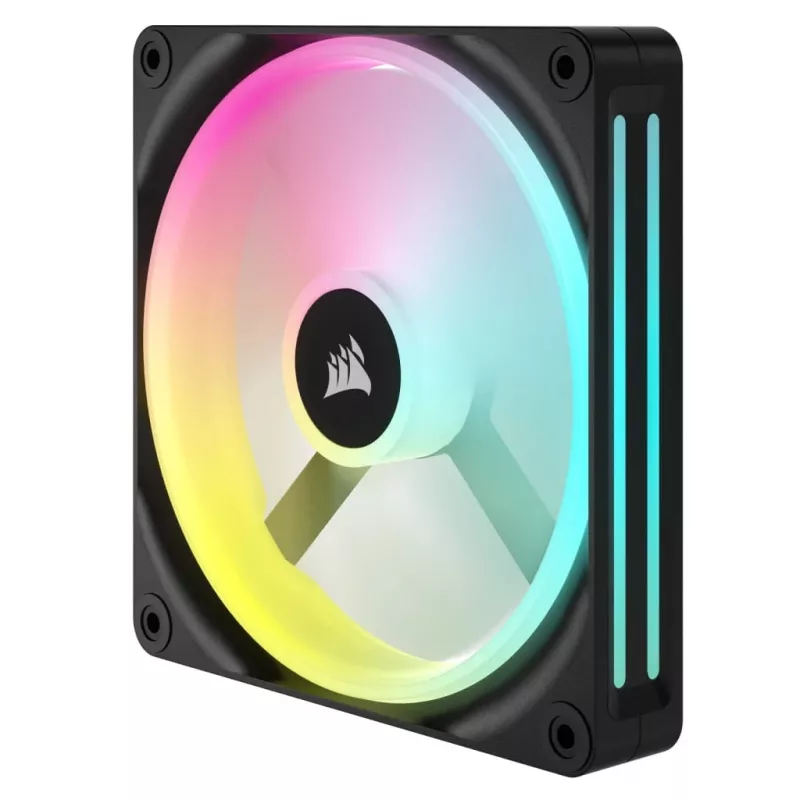

Ventoinha Corsair CO-9051004-WW

The CORSAIR iCUE LINK QX120 RGB 120mm PWM Fans Starter Kit includes three 120 mm PWM fans, each with four distinct light loops, and an iCUE LINK System Hub for single-cable setup and chainable connections. The kit uses iCUE LINK technology to automatically detect and configure compatible fans, CPU coolers and other internal components, enabling reduced cable clutter and simplified assembly.

Advantages

The starter kit offers synchronized multi-zone RGB lighting with 34 RGB LEDs per fan arranged across two light zones, an exclusive Time Warp lighting mode, and two-way communication with the iCUE LINK System Hub. Each fan features a magnetic dome bearing for reduced noise and longer life, a built-in temperature sensor and dedicated MCU for advanced control, PWM speed control from 480 to 2000 RPM, up to 82.5 CFM airflow and 3.5 mm-H2O static pressure, plus Zero RPM support for silent low-load operation.

Suitable for

• Custom desktop PC builds requiring multi-zone RGB lighting
• Systems needing improved airflow and component cooling
• Builders who want simplified single-cable fan and accessory management
• Environments where low-noise operation is important

Key specifications

• Model: CORSAIR iCUE LINK QX120 RGB Starter Kit
• Fan size: 120 mm
• Number of fans: 3
• LEDs per fan: 34 (two light zones)
• Speed range: 480–2000 RPM (PWM)
• Airflow: up to 82.5 CFM
• Static pressure: up to 3.5 mm-H2O
• Bearing: Magnetic dome bearing
• Features: Built-in temperature sensor, dedicated MCU, Time Warp lighting mode, Zero RPM support
• Connectivity: iCUE LINK single-cable chainable system with included System Hub

How to use

Install the fans into your case using the supplied screws and connect them in a chain to the iCUE LINK System Hub using the included cables. Connect the System Hub to your motherboard or power source as instructed in the manual, then install CORSAIR iCUE software to detect and configure fan speed, temperature monitoring and RGB lighting. Use PWM control and Zero RPM settings to balance cooling performance and noise according to system load.

Recommendations

Position the fans to create an effective airflow path (intake at front/bottom, exhaust at rear/top), monitor temperatures with iCUE and adjust fan curves for an optimal balance of cooling and acoustics. Update iCUE software and firmware to access the latest lighting modes and device compatibility.
