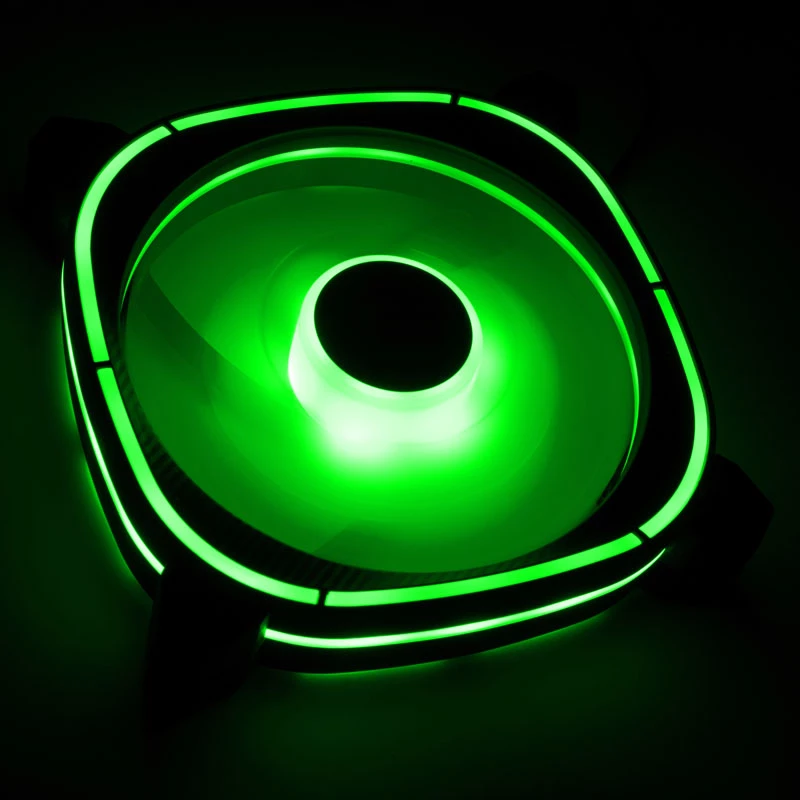

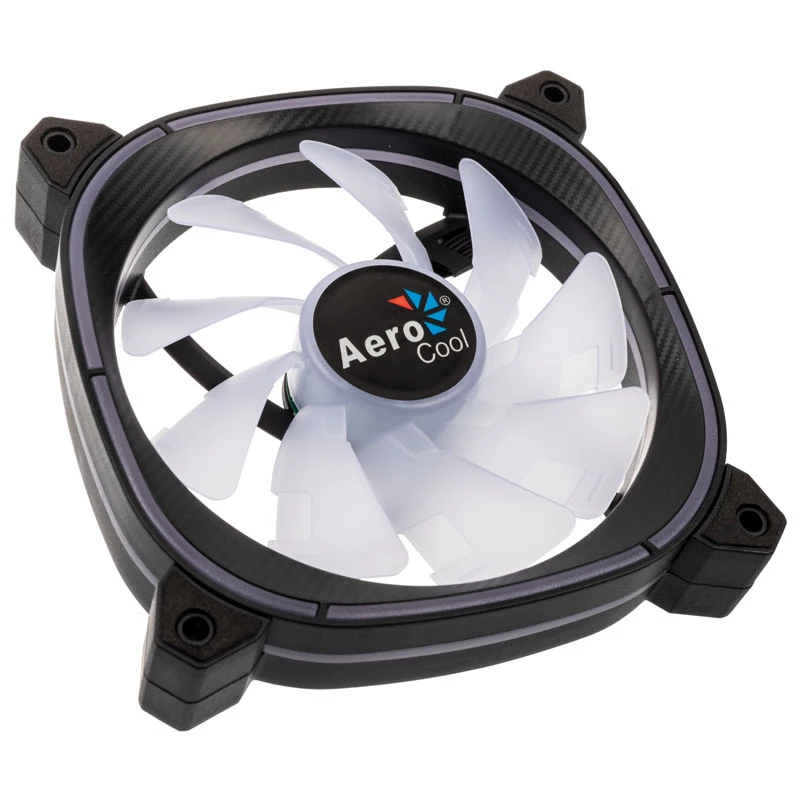

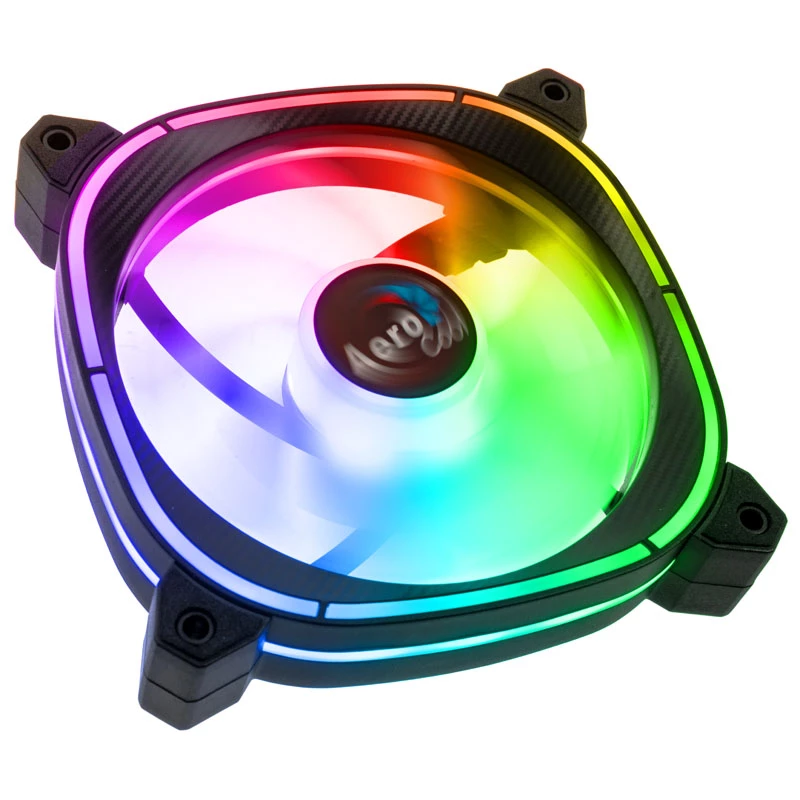

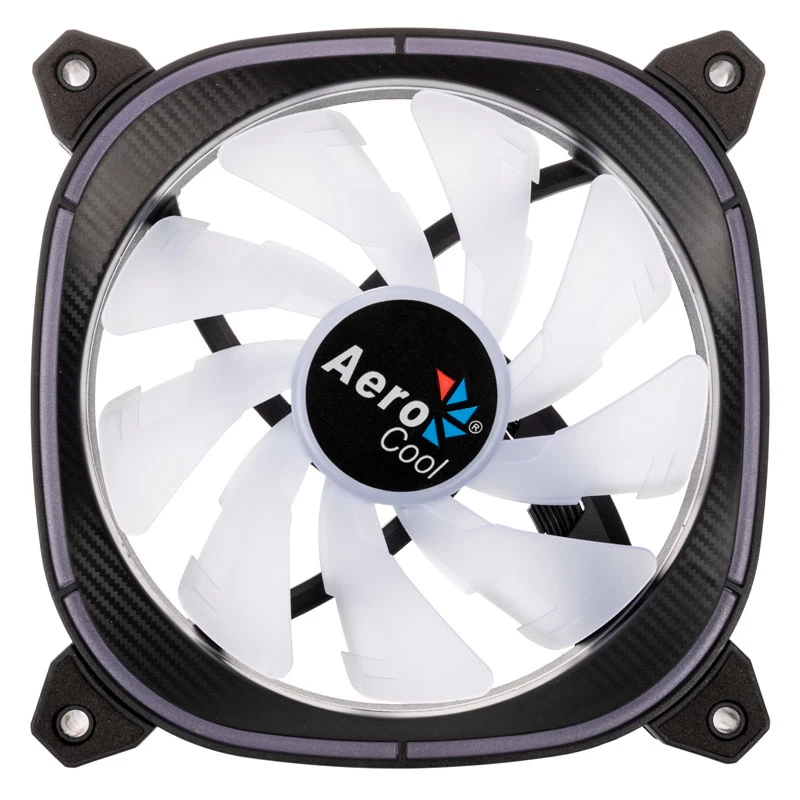

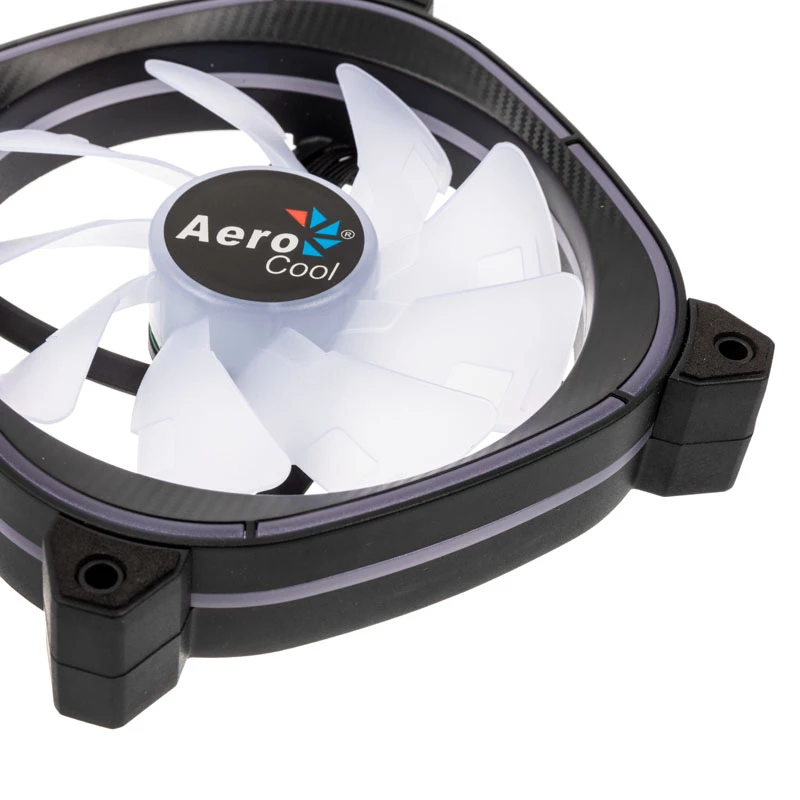

Ventoinha de caixa AEROCOOL Astro 12F ARGB LED 120mm — 120mm, iluminação ARGB, ligação de alimentação de 3 pinos

The AEROCOOL 120mm Astro 12F ARGB LED Case Fan is a 120mm cooling fan with integrated ARGB lighting designed for PC chassis ventilation and aesthetic lighting. It fits standard 120mm mounting points and provides airflow for case ventilation, radiator push/pull configurations, and component cooling. The fan uses a 3-pin power connector for fan speed; ARGB illumination requires a compatible 3-pin ARGB header or separate controller for color and effect control.

Advantages

The Astro 12F combines airflow performance with addressable RGB lighting in a single 120mm fan, enabling both thermal management and customizable visual effects. Its 3-pin power connector allows broad motherboard compatibility for fan rotation, while ARGB LEDs offer individually addressable lighting for synchronized effects when connected to supported controllers. The fan’s standard 120mm form factor makes it compatible with most PC cases and many radiator mounts.

Suitable for

• Case ventilation to improve internal airflow and reduce component temperatures
• Radiator push/pull configurations in liquid cooling loops
• Adding synchronized ARGB lighting to gaming or showcase builds
• Replacing or upgrading existing 120mm chassis fans

Key specifications

• Size: 120 mm standard case fan
• Lighting: Addressable RGB (ARGB) integrated LEDs
• Power connector (fan): 3-pin for fan rotation
• ARGB control: Requires compatible 3-pin ARGB header or controller
• Mounting: Fits standard 120mm fan mounting points and many radiators

How to use

Install the fan into any standard 120mm mounting location in the case or on a radiator using the supplied or standard screws, ensuring the airflow direction matches your cooling layout. Connect the 3-pin fan power connector to a motherboard fan header or fan controller to provide rotation power; note that fan speed control depends on the header/controller capabilities. For ARGB illumination, connect the ARGB LED cable to a compatible 3-pin addressable RGB header on the motherboard or to a dedicated ARGB controller. Configure lighting effects through the motherboard or controller software if supported.

Recommendations

Place intake fans at the front and bottom of the case and exhaust fans at the rear and top to establish a balanced airflow. When using multiple ARGB devices, ensure your controller or motherboard supports the total LED load and addressable connections. Regularly clean the fan blades and grille to maintain airflow and cooling efficiency.
