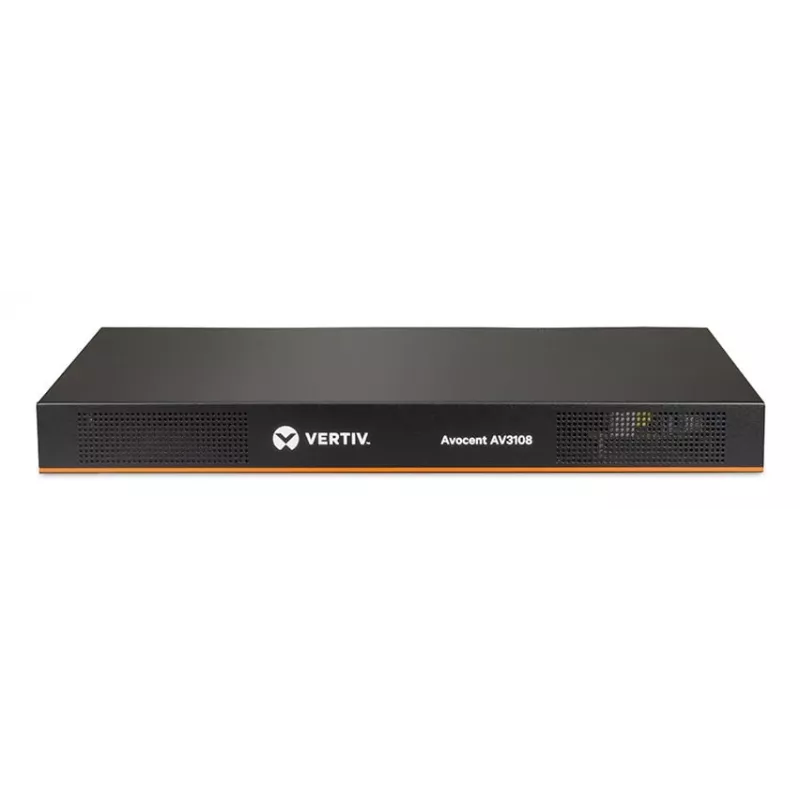

Vertiv AutoView AV3108 comutador KVM - 8 portas - montagem em rack 1U - VGA/USB

The Vertiv AutoView AV3108 is a high-performance analog KVM switch designed for efficient server management in data centers and IT environments. With 8 KVM ports and support for up to 256 servers via daisy chaining, it provides centralized control of multiple computers using a single keyboard, monitor, and mouse. The 1U rack-mountable form factor saves space, while the VGA video interface and USB keyboard/mouse connectivity ensure broad compatibility.

Advantages

Centralized control of up to 8 computers (expandable to 256 via daisy chain) reduces hardware clutter and improves workflow efficiency. The on-screen display (OSD) and hot-key switching allow quick and intuitive server selection. Rack-mountable design optimizes space utilization in standard 19-inch racks.

Suitable for

• Data centers requiring reliable KVM switching for multiple servers
• IT administrators managing mixed-OS environments (Windows, Linux, Mac, Solaris)
• Server rooms where space is at a premium

Key specifications

• Device Type: KVM Switch
• Number of KVM Ports: 8
• Number of Local Users: 1
• KVM Technology: Analog KVM
• Video Interface: VGA
• Keyboard/Mouse Interface: USB
• Maximum Video Resolution: 1920 x 1440 @ 60Hz
• Form Factor: 1U Rack-mountable
• Daisy Chain Capability: Yes (Up to 256 servers)
• On-Screen Display (OSD): Yes
• Hot-Key Switching: Yes
• Power Input: AC 100-240V
• Power Consumption (Max): 20W
• Operating Temperature Range: 0°C to 40°C (32°F to 104°F)
• Supported Operating Systems: Windows, Linux, Mac, Solaris
• Management Features: Front panel buttons, OSD, Hot-keys
• LED Indicators: Port status, Power
• Certifications: CE, FCC Class A, UL, RoHS

Recommendations

For optimal performance, use high-quality VGA and USB cables. The AutoView AV3108 is ideal for small to medium-sized server rooms where reliable, cost-effective KVM switching is required.
