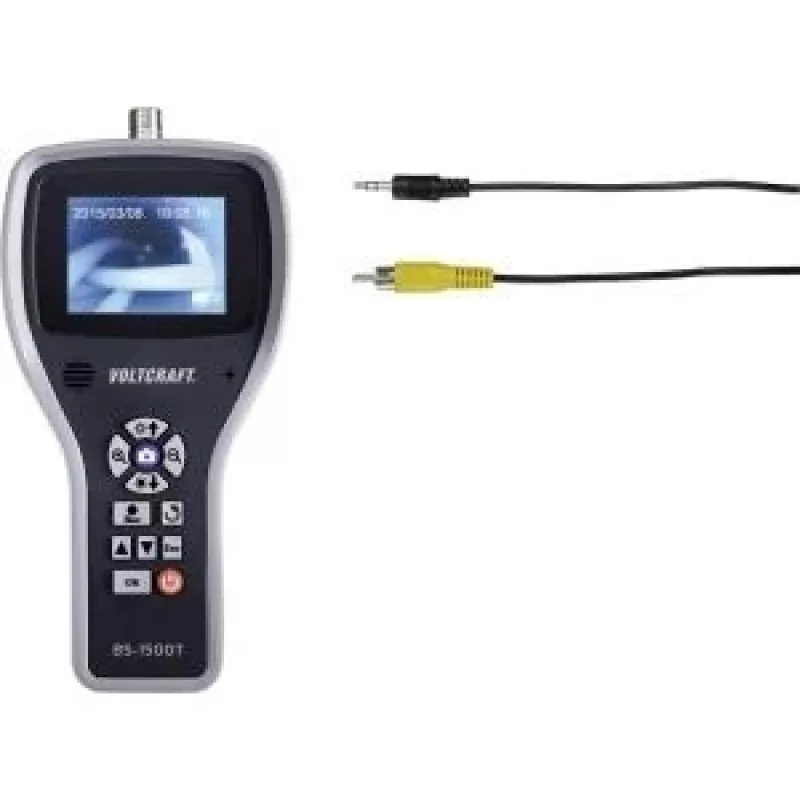

VOLTCRAFT BS-1500T unidade base de endoscópio com TFT-LCD de 3,5 polegadas, gravação de vídeo e imagem, saída de TV, slot para cartão SD, zoom digital 4x, LED

With a crisp 3.5" TFT LCD display and 4x digital zoom, the VOLTCRAFT BS-1500T endoscope base unit brings hidden inspection areas into sharp focus. Record video in AVI format at 30 fps or capture still images as JPEG directly to an SD card (up to 32 GB). The integrated TV-out (PAL/NTSC) lets you share findings on a larger screen, while USB 2.0 enables quick file transfer to a PC.

Overview

The BS-1500T is the central control and display unit for VOLTCRAFT BS series endoscope probes. It is designed for professional inspection tasks in automotive, plumbing, HVAC, and building diagnostics. The handheld unit runs on four AA batteries, providing approximately four hours of continuous operation, and features an intuitive multi-language menu system.

What stands out

• 3.5" TFT LCD colour display with 320 x 240 pixel resolution for clear real-time viewing
• Simultaneous video recording (AVI, 30 fps) and still image capture (JPEG) to SD card
• TV-out (PAL/NTSC) for external monitor connection
• 4x digital zoom to magnify details on-screen
• USB 2.0 interface for convenient data transfer
• Compatible with all VOLTCRAFT BS series probes for flexible inspection depths and diameters
• Long battery life: up to 4 hours with alkaline batteries

Technical details

• Display: 3.5" TFT LCD colour, 320 x 240 pixels
• Video recording: AVI format, 30 fps
• Image capture: JPEG format
• Storage: SD card slot, supports up to 32 GB
• Digital zoom: 4x
• Video output: TV-out (PAL/NTSC)
• Data interface: USB 2.0
• Power supply: 4x AA batteries (6 V DC)
• Operating temperature: 0 to +45 °C
• Protection rating (base unit): IP20
• Battery life: approx. 4 hours (alkaline)
• Menu languages: multi-language support

Our verdict

The VOLTCRAFT BS-1500T is a robust and versatile endoscope base unit that delivers professional-grade imaging and recording capabilities. Its compatibility with the BS probe series makes it a future-proof investment for technicians who need reliable visual inspection tools.
