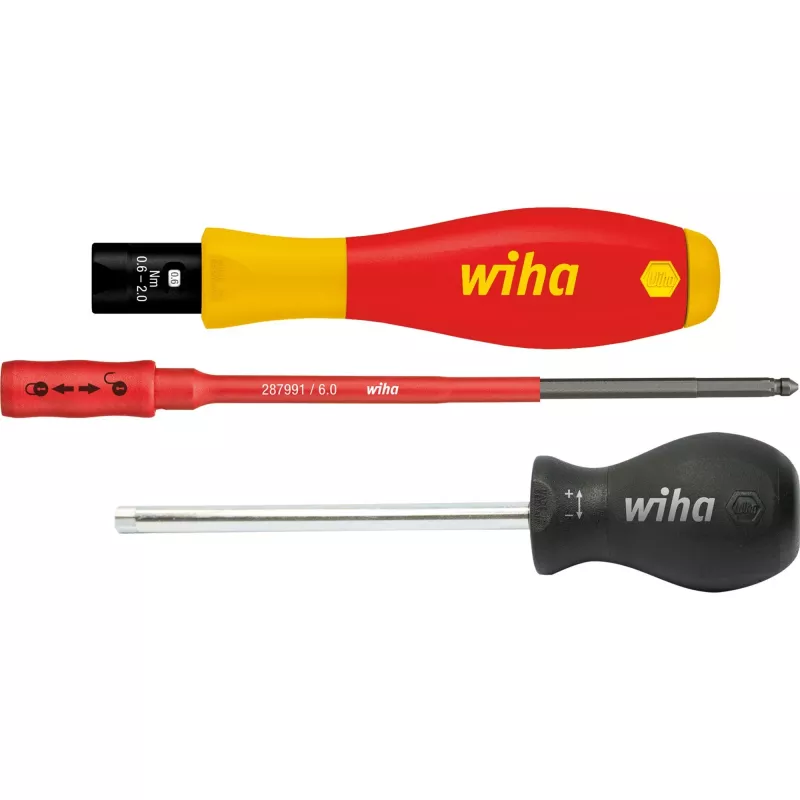

Wiha VDE Chave de fendas dinamométrica TorqueVario-S 0,6 - 2 Nm DIN EN 60900, DIN EN ISO 6789, DIN EN 26789 (26625)

The Wiha TorqueVario-S stands apart from standard torque screwdrivers by combining a continuously adjustable torque range of 0.6–2 Nm with direct moulded VDE insulation, eliminating the need for separate insulating sleeves. The ClicFix quick-release chuck accepts 6 mm hex bits and provides a secure, tool-free bit change. An audible and palpable click signals when the set torque is reached, preventing over-tightening in sensitive electrical installations.

Highlights

• VDE insulation rated for 1000 V AC, compliant with DIN EN 60900
• Torque range 0.6–2 Nm, accuracy ±6% per DIN EN ISO 6789
• Audible and palpable click for precise torque release
• ClicFix quick-release bit holder for 6 mm hex bits
• Ergonomic multi-component handle with 36 mm diameter for comfortable grip
• Individual test certificate included

In daily use

Set the required torque on the clearly marked scale, insert a suitable bit, and fasten until the click is heard and felt. The direct moulded insulation provides reliable protection in live working conditions, while the compact 147 mm length allows access in tight spaces.

Full specifications

• Tool type: Torque screwdriver
• Torque range: 0.6–2 Nm
• Torque accuracy: ±6%
• Torque standard: DIN EN ISO 6789
• Insulation standard: VDE (IEC 60900)
• Rated voltage: 1000 V AC
• Drive size: 6 mm hex
• Bit holder: ClicFix quick-release
• Handle: Ergonomic multi-component, diameter 36 mm
• Adjustment: Continuously adjustable with scale
• Torque release indication: Audible and palpable click
• Tool length: 147 mm
• Product series: TorqueVario-S
• Individual test certificate: Included

Final note

Designed for controlled fastening in electrical installations, the TorqueVario-S delivers consistent torque and reliable insulation in a single tool.
