2-power 14,0" 1366x768 HD LED 30 Pin Mate (2P-B140XTN07.2 HW2A)

When a laptop display fails, the difference between a quick fix and a frustrating repair often comes down to the quality of the replacement panel. The 2-Power 2P-B140XTN07.2 HW2A is a 14.0-inch HD LED-backlit LCD screen that matches the exact specifications of many original panels, ensuring a seamless swap without driver changes or colour calibration surprises. Unlike generic panels with unknown provenance, this unit is built to consistent tolerances, so brightness, contrast, and viewing angles behave predictably from the first power-on.

Highlights

• Native 1366 x 768 HD resolution on a 16:9 widescreen TN panel
• Matte anti-glare surface reduces reflections in bright environments
• Standard 30-pin eDP connector positioned bottom right for easy installation
• LED backlight offers lower power consumption and longer lifespan than CCFL
• 6-bit colour depth (262K colours) suitable for productivity and media
• 60 Hz refresh rate and 8–16 ms response time for smooth motion
• Wide compatibility with laptops using 14.0" HD 30-pin eDP panels

In daily use

This panel is a direct replacement for worn-out, cracked, or dim laptop screens. The matte finish is particularly beneficial for users who work near windows or under harsh office lighting, as it diffuses glare instead of mirroring it. The TN technology keeps costs down while delivering adequate colour and response for everyday tasks, spreadsheets, web browsing, and video conferencing. Installation requires basic disassembly skills; the panel does not include mounting brackets, so the original brackets must be transferred from the old screen.

Full specifications

• Screen size: 14.0 inches diagonal
• Resolution: 1366 x 768 pixels (HD)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Surface: Matte (anti-glare)
• Backlight: LED

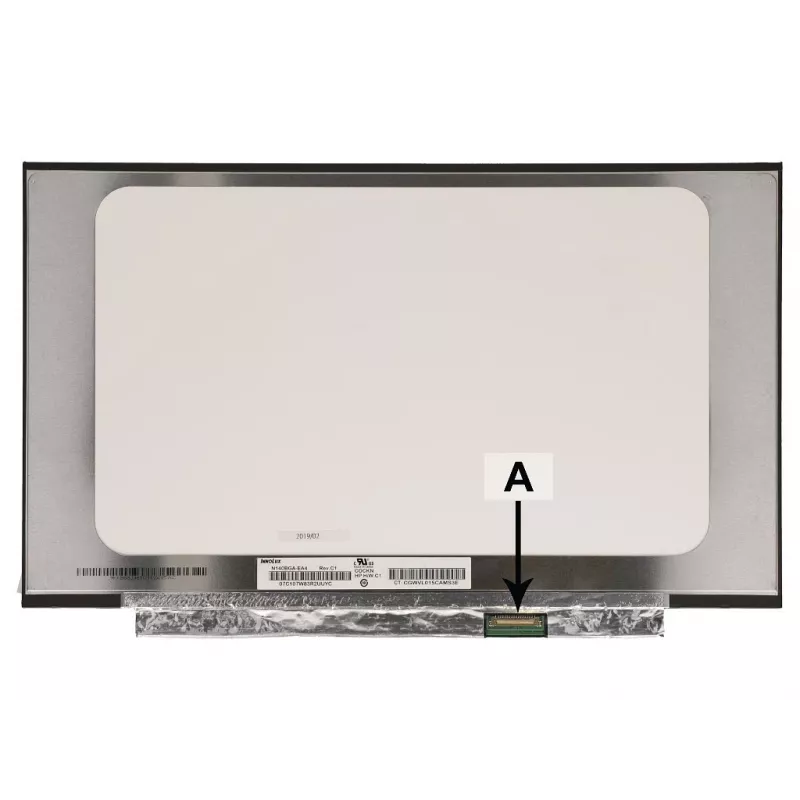

• Connector: 30-pin eDP, bottom right
• Brightness: 200–220 cd/m²
• Contrast ratio: 400:1 – 500:1
• Response time: 8–16 ms
• Viewing angles: 45/45/15/35 degrees (L/R/U/D)
• Colour support: 262K (6-bit)
• Refresh rate: 60 Hz
• Touchscreen: No
• Condition: New
• Mounting brackets: Not included

Final note

For technicians and DIY upgraders, the 2-Power 2P-B140XTN07.2 HW2A offers a reliable, no-surprises replacement that restores a laptop's display to factory-like clarity. Verify your original panel's connector position and resolution before ordering.
