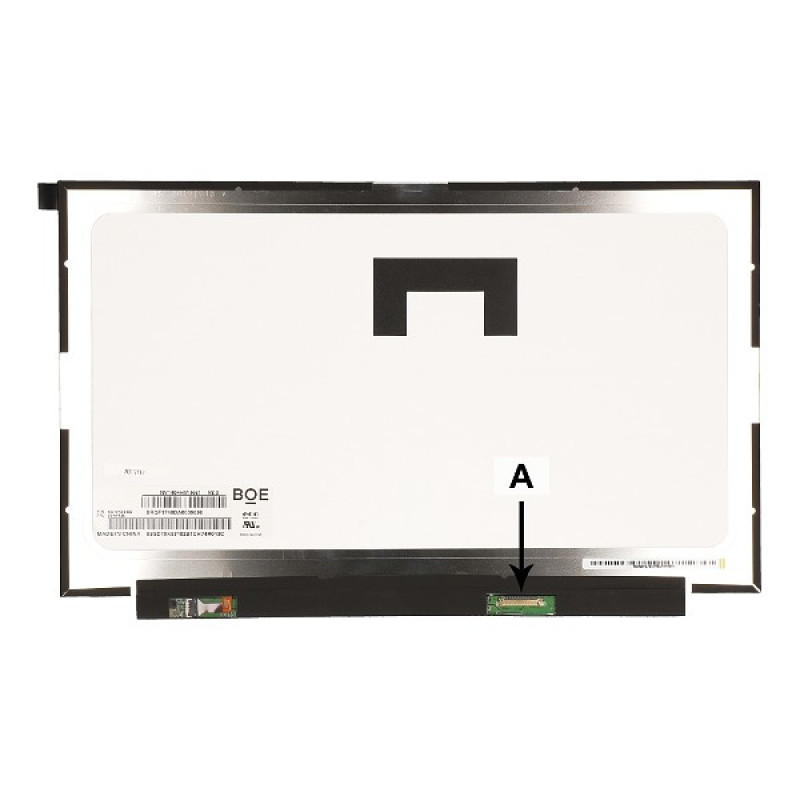

2-power 14.0 1920x1080 IPS AG sem fixações (2P-MB140CS01)

A cracked or dim laptop screen can make your device nearly unusable, but replacing it doesn't have to be complicated. This 2-Power 14.0-inch Full HD IPS panel restores sharp, vibrant visuals to compatible laptops, offering a cost-effective alternative to a full device replacement. With a native 1920x1080 resolution and wide 170° viewing angles, it delivers crisp images and consistent colors from almost any position. The anti-glare coating reduces reflections, making it easier to work in bright environments. As a bare panel without mounting brackets, it's ideal for technicians and confident DIYers who need a universal replacement for laptops using standard 30-pin eDP connections.

Who is it for

This screen is perfect for IT professionals, repair shops, and experienced users who are comfortable installing a bare LCD panel. If you have a laptop with a damaged 14-inch Full HD IPS display and the original panel is removed by releasing screws or adhesive, this no-fixings design gives you the flexibility to fit it into a wide range of laptop models, provided the connector and dimensions match.

Main features

• 14.0-inch IPS panel with 1920x1080 Full HD resolution for sharp, detailed images.
• Anti-glare (matte) surface reduces reflections and improves visibility in bright light.
• Wide 170° horizontal and vertical viewing angles ensure consistent colors from the sides.
• Standard 30-pin eDP connector for broad compatibility with modern laptops.
• LED backlight with 250 cd/m² brightness for clear viewing in most indoor settings.
• Bare panel without fixings, allowing installation into various laptop chassis using existing brackets or adhesive.

Specifications

• Screen size: 14.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching)
• Surface finish: Anti-glare (matte)
• Backlight type: LED
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Connector type: eDP (Embedded DisplayPort)
• Connector pins: 30-pin
• Mounting type: No fixings (bare panel)
• Brightness: 250 cd/m² (typical)
• Color gamut: 45% NTSC (typical)
• Response time: 25 ms (typical)
• Viewing angle (H/V): 170°/170°
• Technology: TFT Active Matrix
• Voltage requirement: 3.3V
• Condition: New
• Compatibility: Universal replacement for laptops with compatible 14.0" FHD IPS eDP 30-pin panels

Tips

Before ordering, verify that your laptop uses a 30-pin eDP connector and that the panel dimensions match your original screen. Since this is a bare panel, you'll need to transfer any mounting brackets or adhesive strips from your old screen. Handle the panel by its edges to avoid fingerprints and static damage, and test it before final assembly to ensure proper connection and image quality.
